Lucent Technologies DEFINITY Installation For Adjuncts And Peripherals page 210

DEFINITY ECS Release 8.2
Installation for Adjuncts and Peripherals 555-233-116
18 Multimedia Communications Products: MMCX, MMCH, ESM
Multimedia Call Handling (MMCH)
1
1. Port B Y-cable connector to a TN787
multimedia interface (MMI) circuit pack
2. Port A Y-cable connector to a TN2207 PRI
circuit pack
3. 25-pair Y-cable
4. 357A adapter

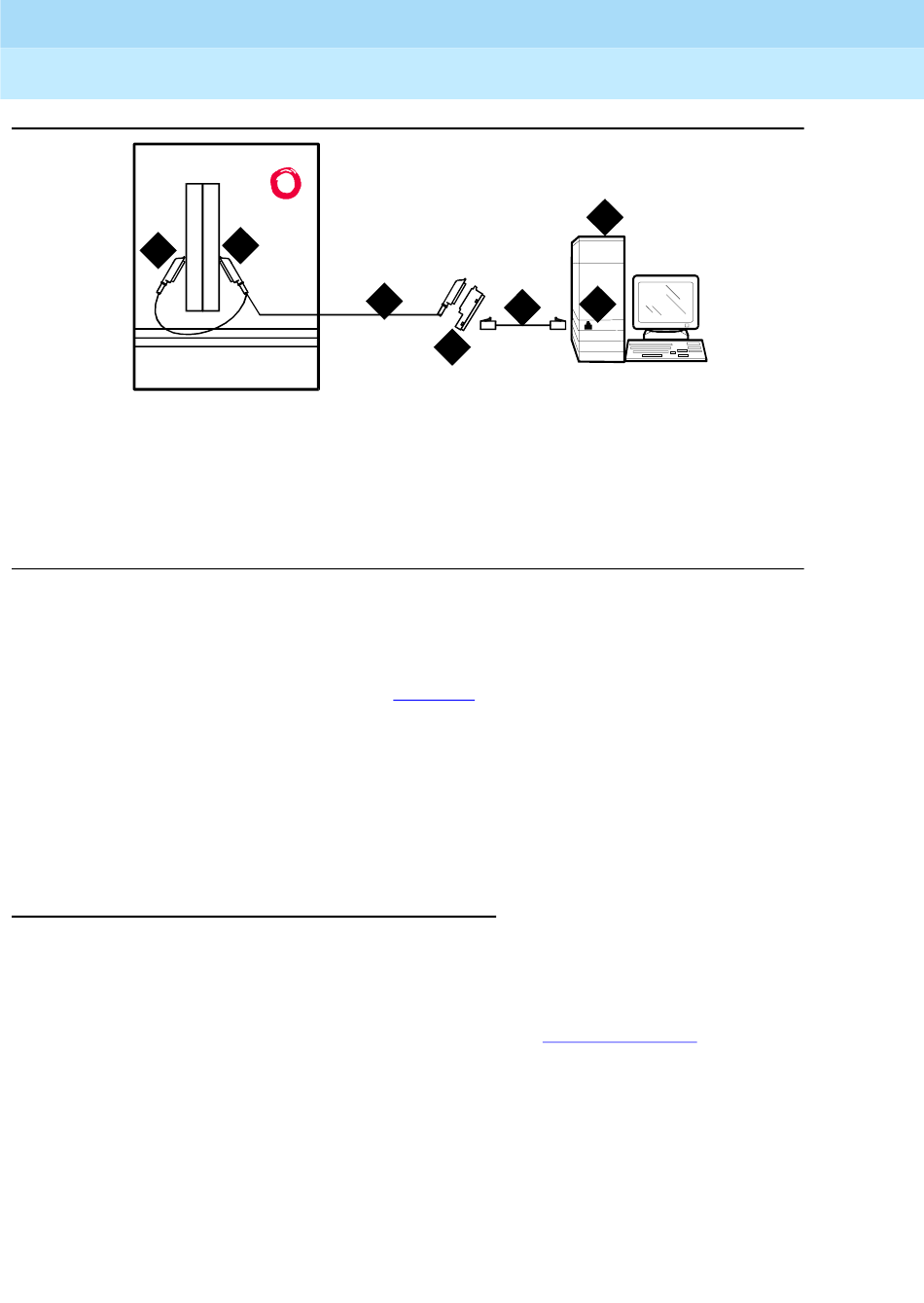

Figure 65. Typical Multimedia Call handling ESM Connections
ESM Installation
Use the following procedure and
1. Install the TN2207 primary rate interface (PRI) circuit pack and the
TN787F/G/H/J/K multimedia interface (MMI) circuit pack in the DEFINITY
System port carrier.
2. Record the circuit pack locations.
3. Connect the ESM Y-cable as shown.
Administer the DEFINITY ECS
1. Enter list configuration all, and a list of the installed carriers, circuit
packs, and ports appears.
2. Record the location (board number) of the new circuit packs and verify
that all other required circuit packs (refer to
present.
3. Enter add DS1 xxxxx, (where xxxxx is the location of the TN2207 PRI
circuit pack recorded in step 2), and the DS1 circuit pack administration
form appears.
4. Set the Name: field to ESM DS1
5. Set the Bit Rate: field to 2.048
6. Set the Line Coding: field to hdb3
2
3
Figure 65
6
7
5
4
cydf012 RPY 100697
5. D8W cord connected to 357A adapter
S/B port 8
6. Expansion service module (ESM)
7. Port B on compatible primary rate
interface (PRI) card
to connect to the ESM equipment:
''ESM Installation'') are
Issue 1
April 2000
188
