4 Data Modules and Asynchronous Data Units
Connect Data Modules
2. When the SET OPTIONS? prompt appears on the LCD, press the ENTER/
YES button.
POWER
TEST
Push the button indicated by the arrow ( )
A series of SET number SPEED? prompts appears.
3. Press the NEXT/NO button until you see the SET 9600 SPEED? prompt.
Then press the ENTER/YES button.
Most DEFINITY connections operate at the 9600 speed.
4. The 9600 = OFF? prompt appears. Press the NEXT/NO button.
5. The 9600 —> ON? prompt appears. Press the ENTER/YES button.
D D D R
T S R C T
R R I D S

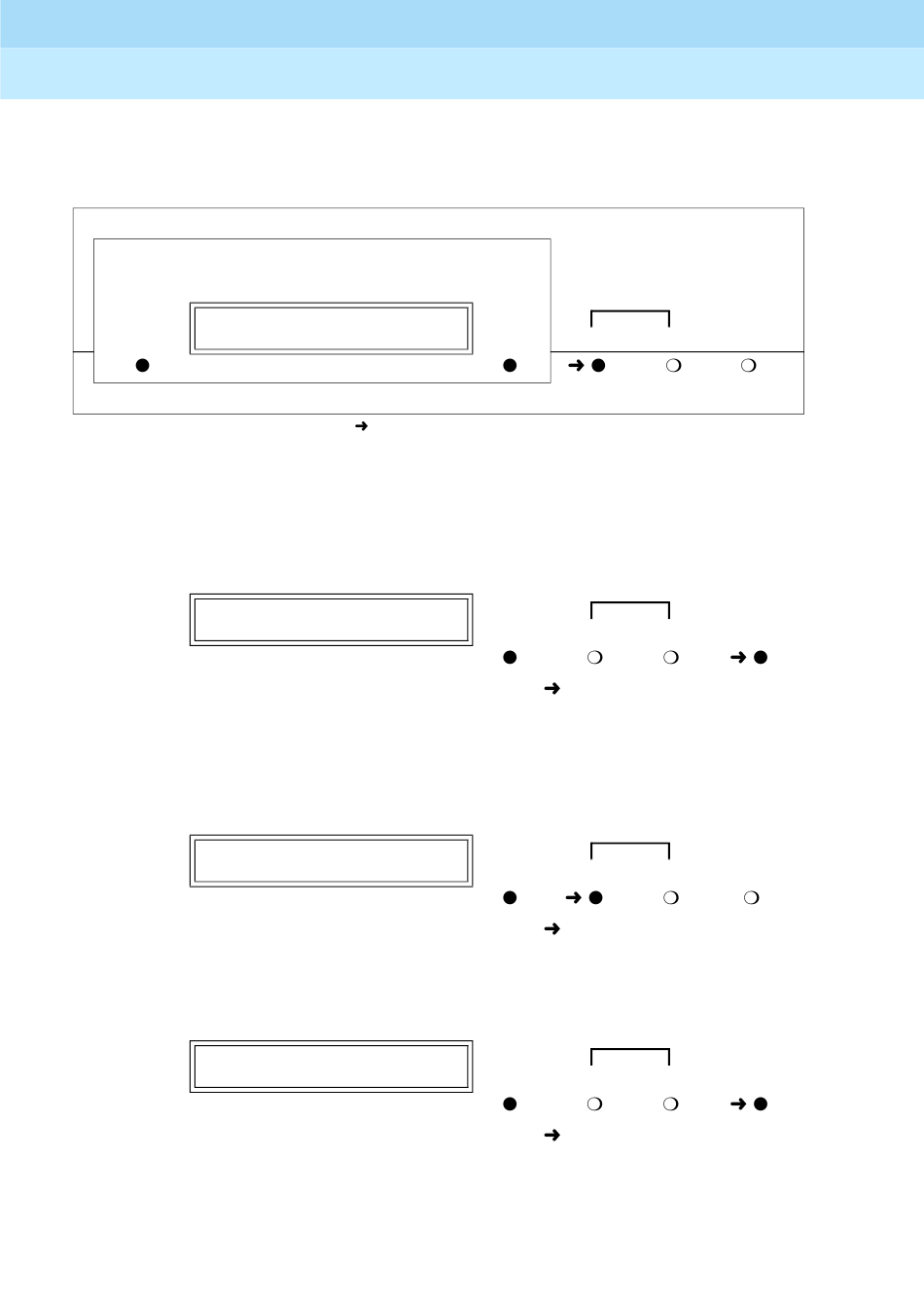

SET OPTIONS?
7400A Data Module
SET 9600 SPEED?
Push the button indicated by the arrow ( )
9600=OFF?
Push the button indicated by the arrow ( )
9600 —> ON?
Push the button indicated by the arrow ( )
C
T T R
S D D
DATA
DATA
DATA
DATA
