Connecting a PC
4. If you are not installing a printer, set the terminal options according to the
instructions in the terminal documentation.
5. At the terminal, enter AT. If the 7400B data module is connected
correctly, it responds with OK (written on the terminal screen).
6. Enter ATDT and the telephone number of the 7400A data module
connected to the DEFINITY LAN gateway (refer to the "Installing the
Terminals" worksheet for this number).
7. Check the DIP switches inside the front panel. If a telephone is not
connected with the data module, set the first DIP switch (1) to the ON
position. If a telephone is connected, set all DIP switches OFF.
6
7
5
1. Administration PC
2. RS-232 cable
3. Data module power supply
4. 7400B data module
5. D8W cord
6. 103A or modular wall jack
7. Main distribution frame (MDF)
8. 7400A data module

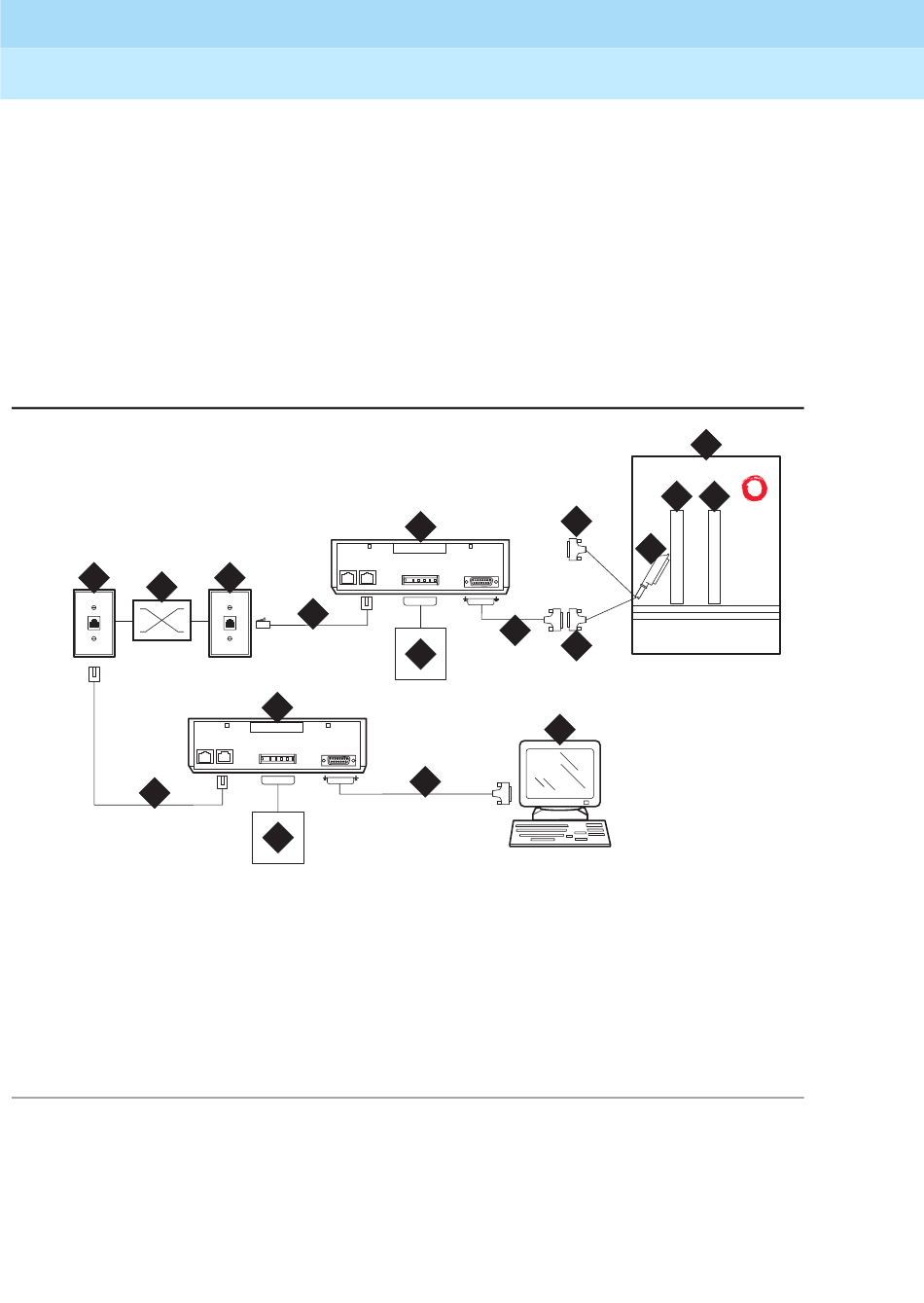

Figure 32. Typical Administration PC Connections Using Data Modules
8. After a connect interval, if the PC and 7400 data modules are installed
correctly (and the DEFINITY LAN Gateway is in either ADX, OAM, OS or
AINIT state), the screen displays the login prompt.
6
5
4
3
9. Null modem cable
10. Port B connector on MFB Y-cable
11. Port A connector on MFB Y-cable
12. Multifunction Y-cable (MFB
13. System cabinet
14. Alarm circuit pack (part of LAN gateway)
15. Multifunction circuit pack (part of LAN
11
8
9
10
3
1
2
gateway)
Issue 1
April 2000
109
13
15 14
12
cydf003 KLC 022900
