DCS Connections

DCS Connections
Typically, cabinets are connected by distributed communication-system (DCS)
links using direct connections or modems.
The system uses the processor interface as the control circuit pack. The control
circuit pack provides a single EIA port that allows access to one data link.
Connections to the system vary depending on the distance between systems
and the type of system being connected.
1
2
3
1. To processor interface circuit pack to PI
connector on rear of control carrier
2. 25 ft (7.7 m) maximum
3. M25B cable (RS-232)
4. Data module

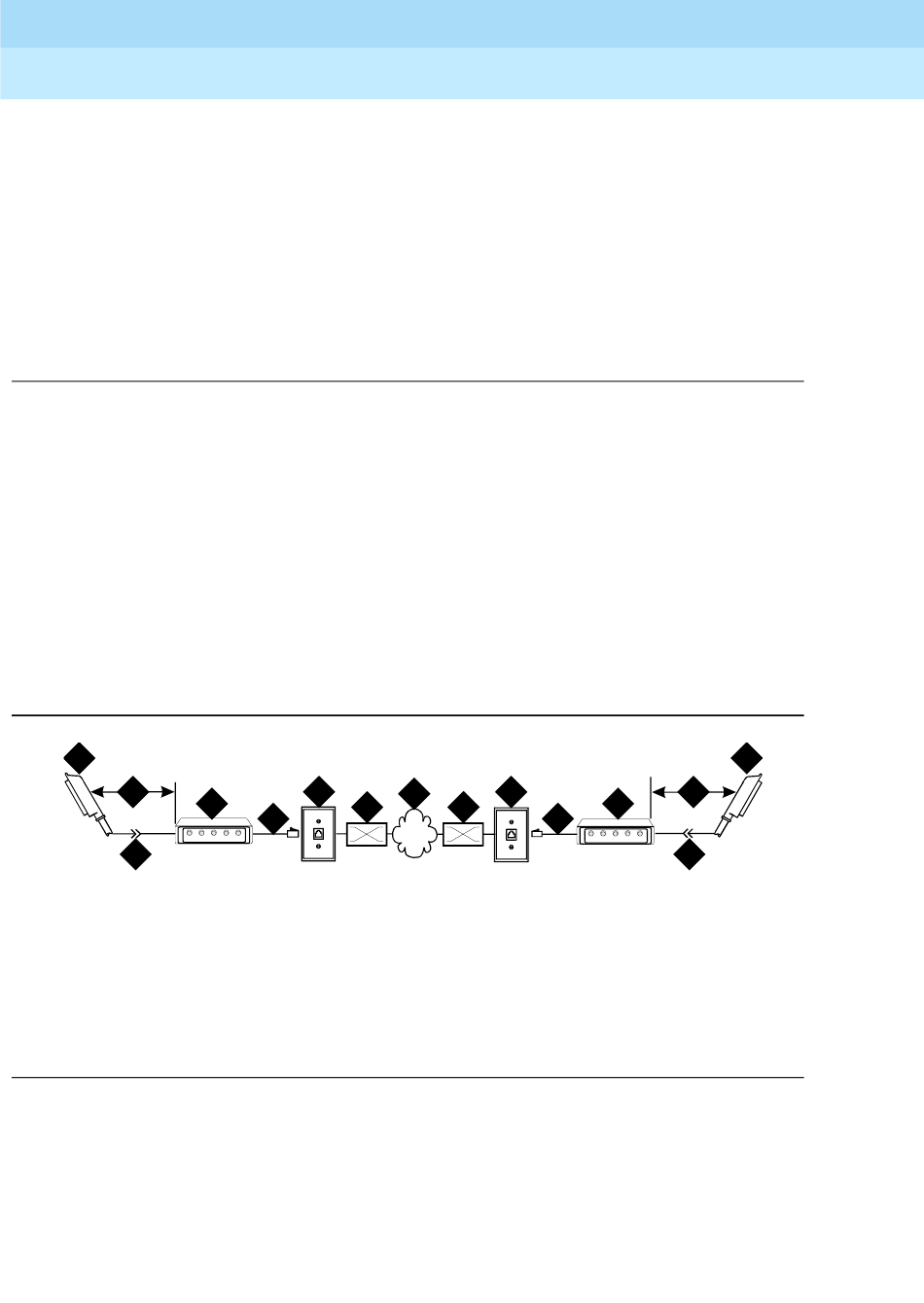

Figure 33. Typical DCS Link, System to System
6
4
7
5
6
8
7
5
5. Modular cord
6. 103A or modular wall jack
7. Main distribution frame (MDF)
8. Public switched telephone network
(PSTN)
