Lucent Technologies DEFINITY Installation For Adjuncts And Peripherals page 198

DEFINITY ECS Release 8.2
Installation for Adjuncts and Peripherals 555-233-116
18 Multimedia Communications Products: MMCX, MMCH, ESM
Wideband Endpoints
1
1
cydf049 RPY 123097

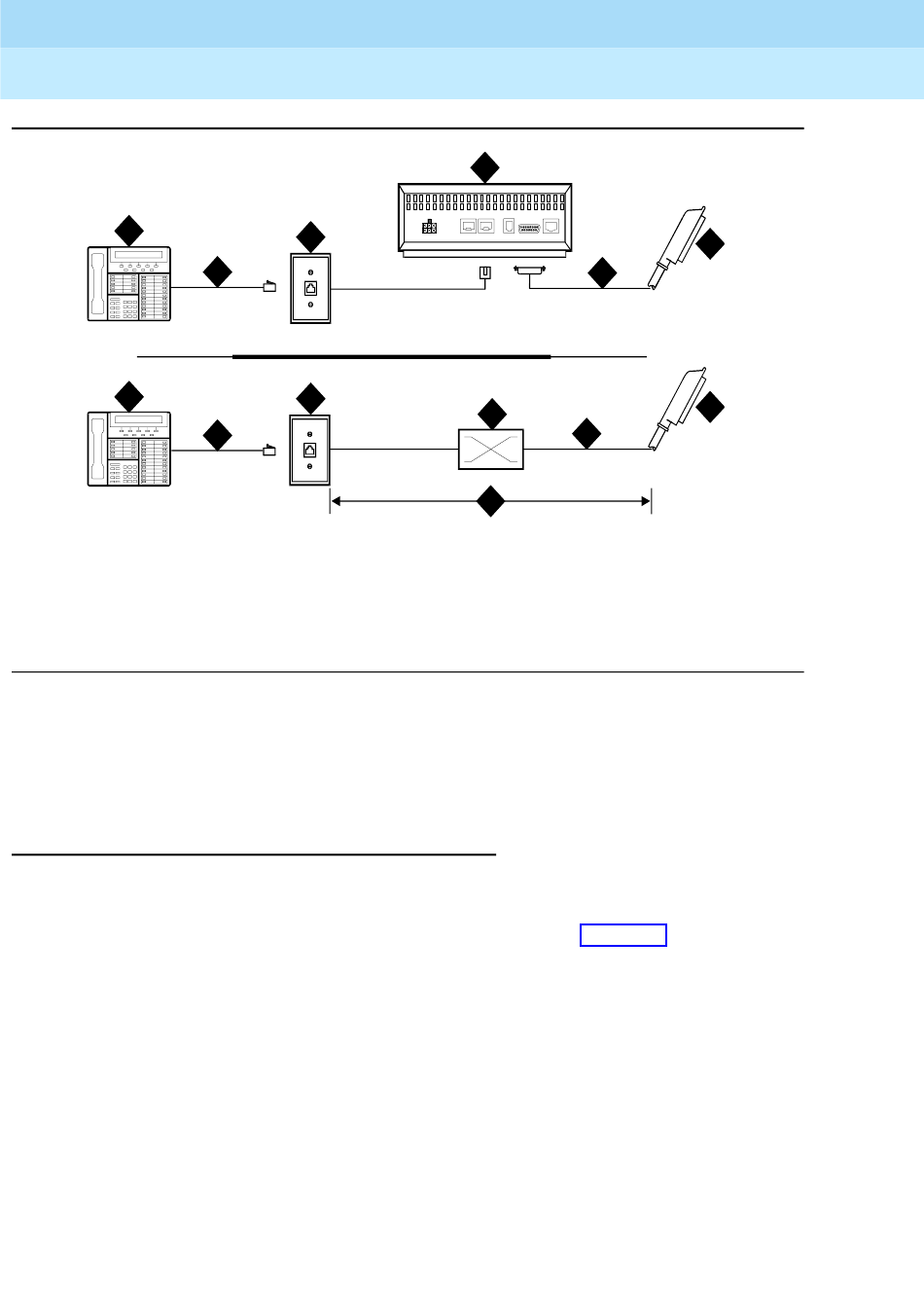

1. Wideband endpoint (wire per manufacturer)
2. Modular cord
3. 103A or modular wall jack
4. Channel service unit (CSU)
5. H600-307 cable to DTE connector on CSU
Figure 61. Typical Nonsignaling Wideband Configuration
If using a CSU, the distance between connections may be up to 1300 ft
(397.2 m). The maximum distance to the endpoint depends on the type of cable
and the specifications of the endpoint.
Signaling Configuration
A signaling connection from the system to a wideband endpoint passes through
a bandwidth controller. The distance between the system and the bandwidth
controller depends on the type of cable and controller.
connections with and without a CSU.
3
2
3
2
4
POWER AUX PORT COM PORT MODEM NETWORK
DTE
5
7
9
8
6. DS1/E1 circuit pack
7. Main distribution frame (MDF)
8. Distance limit depends on cable and
endpoint type.
9. A25D 25-pair cable (male-to-male)
Figure 62
Issue 1
April 2000
176
6
6
shows
