DEFINITY ECS Release 8.2
Installation for Adjuncts and Peripherals 555-233-116
17 Paging and Announcement Equipment

ESPA Radio Paging

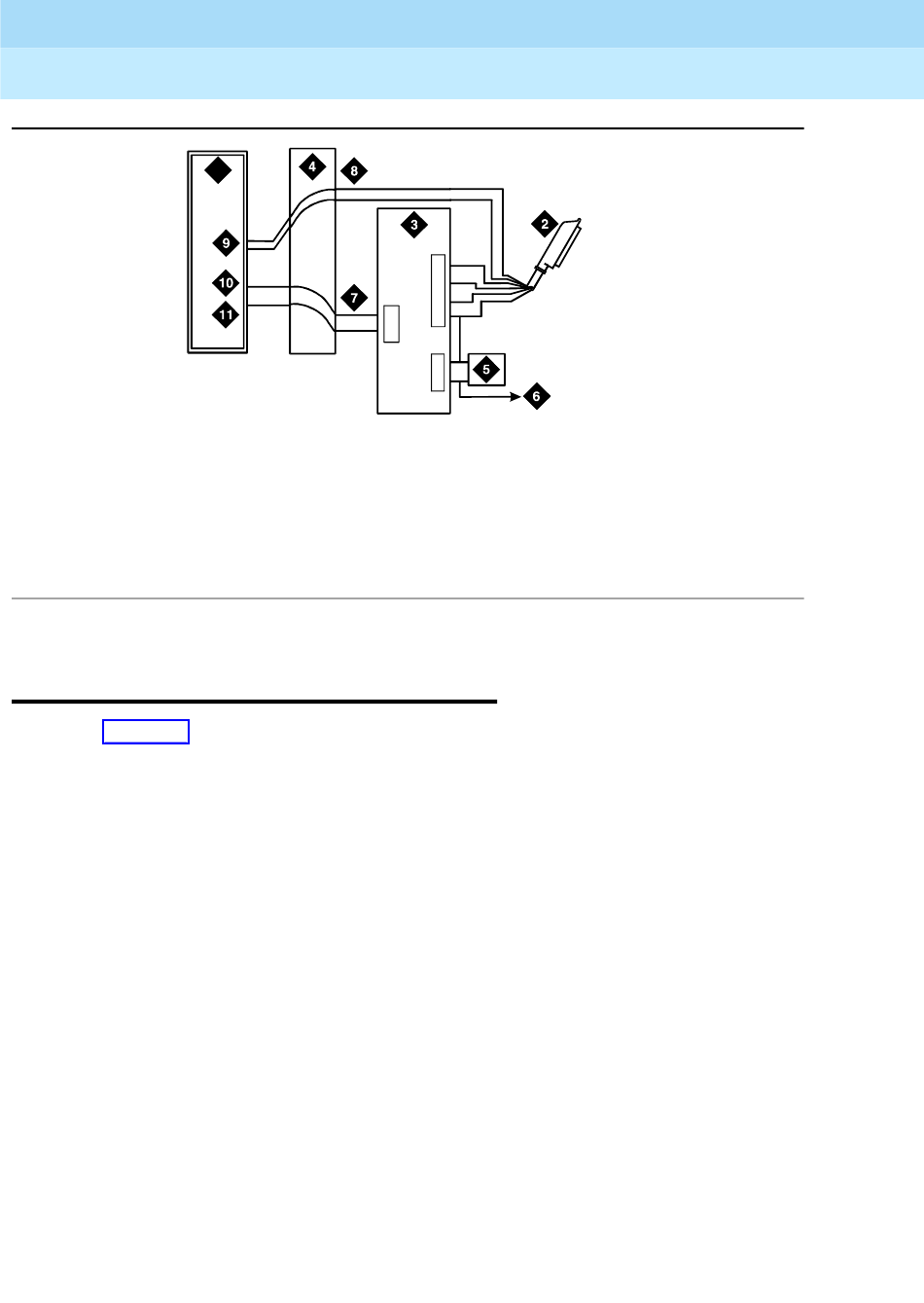

1. PagePac 20/100/300 system
2. 25-pair cable to auxiliary trunk circuit pack
(T, R, S, S1, Sz, SZ1)
3. 909A/B universal coupler
4. Part of main distribution frame
5. Power supply for universal coupler
Figure 56. Connections for PagePac 20/100/300 System
ESPA Radio Paging
Figure 57
(ESPA) equipment. Connect the LINE jack on the PassageWay interface to a
digital line 4-wire DCP circuit pack via the MDF.
1
shows typical connections to European Standard Paging Access
J1
7
6
J2
3
7
2
8
J3
5
2
0041_0 RBP 062796
6. To SZ1 on TN763/D connector
7. CBS1/C1 and CBS2/C2
8. Tip and ring wires
9. Page in connections
10. Music/page connection
11. Signal ground connection
Issue 1
April 2000
170
