7 DEFINITY LAN Gateway System
Connecting a PC
Testing a direct connection
1. Plug the power cord on the terminal into a wall outlet.
2. Power on the terminal.
3. If you are installing a printer, set the printer options as described in the
printer manual. Then set the corresponding options on the terminal to
match.
If the terminal is installed correctly and if the DEFINITY LAN Gateway is in
the ADX, OAM, OS or AINIT state, the screen displays the login prompt.
4. If you are not installing a printer, set the terminal options according to the
instructions in the terminal documentation.
If the terminal is installed correctly and if the DEFINITY LAN Gateway is in
the ADX, OAM, OS or AINIT state, the screen displays the login prompt.
5. If the terminal does not display the login prompt, write down the state
displayed, then see the troubleshooting procedures for terminal
connections in CallVisor ASAI/DEFINITY LAN Gateway documentation.
Connecting an administration PC via modems
Connect as shown in
2
1
1. Printer (optional)
2. Administration PC
3. RS-232 cable
4. Modem
5. 103A or modular wall jack
6. Main distribution frame (MDF)
7. Public switched telephone network
8. 117A Isolator (DC-powered Port-A connector
on MFB Y-cable systems only)

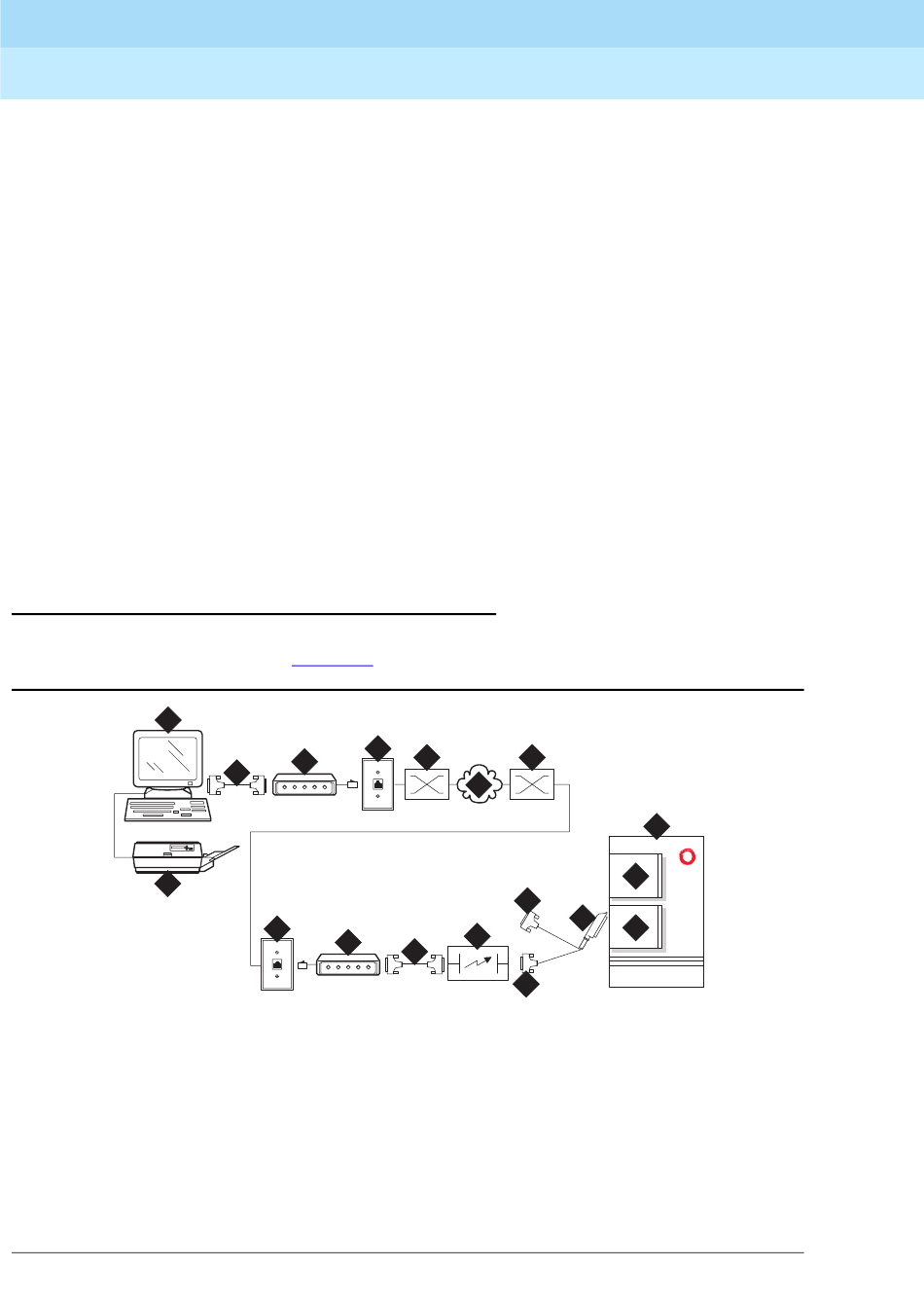

Figure 30. Typical Administration Terminal Connections via Modems
Figure 30.
5
4
3
5
4
6 6
7
9
11
8
3
10
9. Port B connector on MFB Y-cable
10. Port A connector on MFB Y-cable
11. Multifunction Y-cable (MFB)
12. System cabinet
13. Alarm circuit pack (part of LAN
gateway)
14. Multifunction circuit pack (part of
LAN gateway)
Issue 1
April 2000
106
12
13
15
14
