Lucent Technologies DEFINITY Installation For Adjuncts And Peripherals page 130

DEFINITY ECS Release 8.2
Installation for Adjuncts and Peripherals 555-233-116
7 DEFINITY LAN Gateway System
Connecting a PC
1
14
1. Administration PC
2. 25-Pin EIA-232-D connector on Z3A1
ADU
3. D8AM crossover cord
4. 103A or modular wall jack
5. Main distribution frame (MDF)
6. D8W cord
7. Power supply
8. D7AP cord

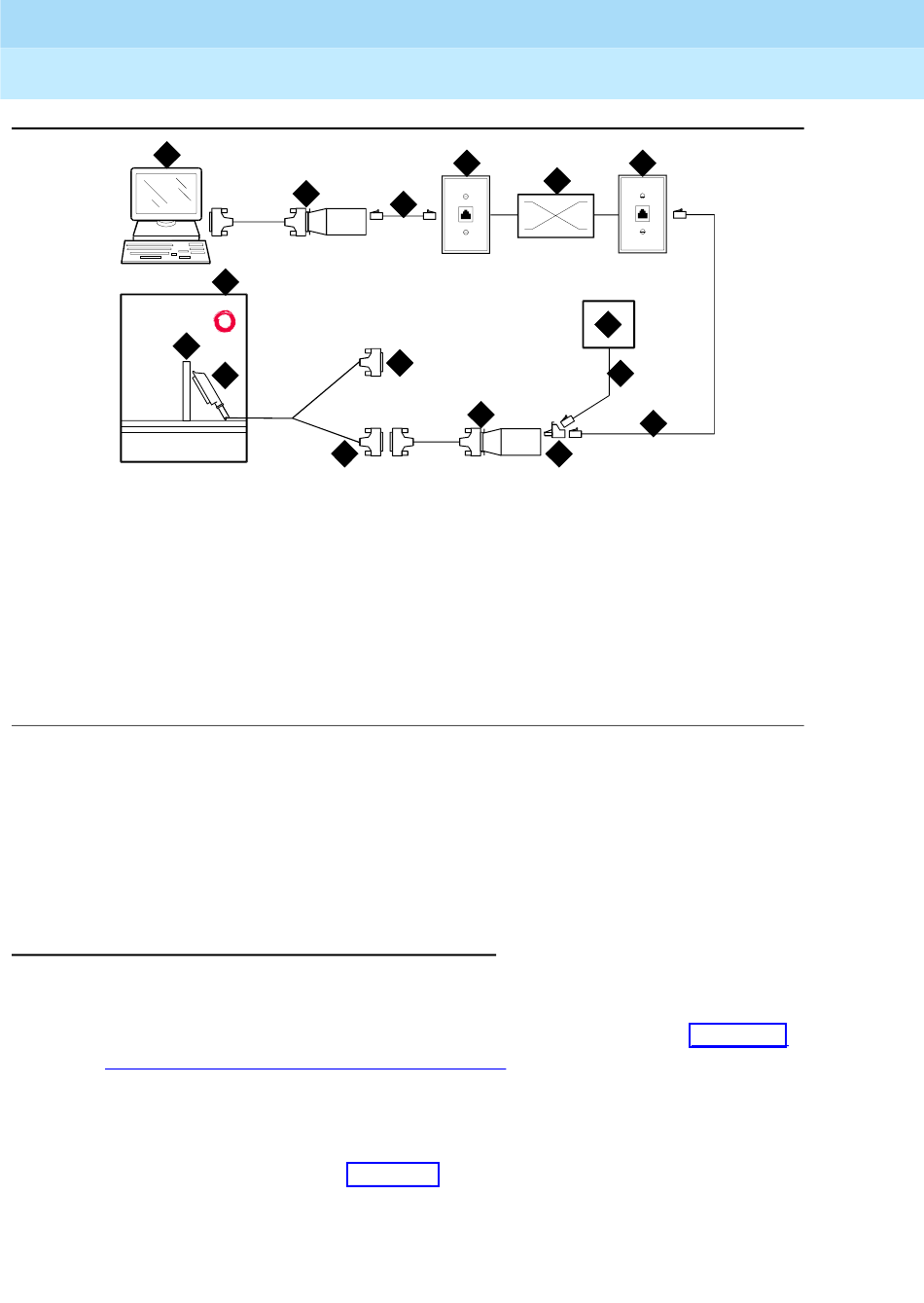

Figure 31. Typical Administration PC Connections through ADUs
If the terminal is installed correctly and if the DEFINITY LAN Gateway is in
the ADX, OAM, OS or AINIT state, the screen displays the login prompt.
9. If the terminal does not display the login prompt, write down the state
displayed, then see the troubleshooting procedures for terminal
connections in CallVisor ASAI/DEFINITY LAN Gateway documentation.
Connect the Administration PC via Data Modules
Two data modules can be used in this configuration. The DEFINITY LAN gateway
side of the configuration requires the 7400A. A second 7400A can be used and
is connected the same as a 7400B. Set the options as described in
''Data Modules and Asynchronous Data
1. Make sure the EIA connector board (located inside the data module) is set
to DCE (factory default). If not, unplug the card and turn it around to the
DCE setting (see "Mode Selection" on page 5-84 for details).
2. Connect as shown in
3. If you are installing a printer, set the printer options as described in the
printer manual. Then set the corresponding options on the terminal to
match.
2
15
13
12
Figure
4
5
3
11
10
9
9. 400B2 adapter
10. Z3A2 ADU
11. Port A connector on MFB Y-cable
12. Port B connector on MFB-Y-cable
13. Multifunction Y-cable (MFB)
14. System cabinet
15. Multifunction circuit pack (part of LAN
gateway)
Units''.
32.
Issue 1
April 2000
108
4
7
8
6
cydftadu RPY 091197
Chapter 4,
