3 Voice and Data Terminals and Extenders
2-Wire DCP Endpoint
1. 103A or modular wall jack
2. 2-wire endpoint
3. Data terminal (serial data)
4. Data adapter (such as Italtel)

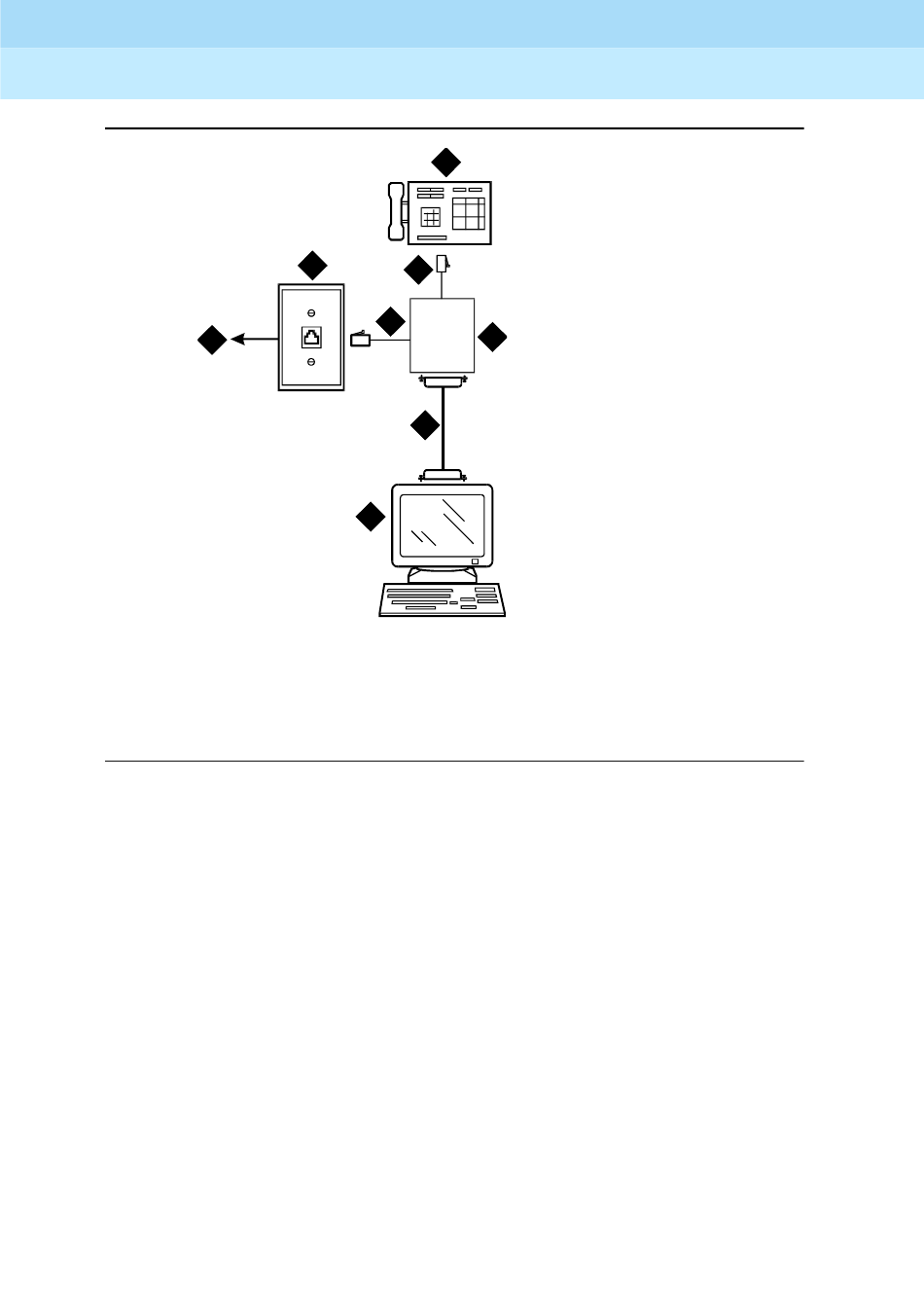

Figure 7. Typical Connections to a 2-Wire DCP Workstation
Wire the circuit pack to the MDF with a 25-pair cable:
1. Wire to the data adapter per local standards.
2. Wire the data terminal and telephone as instructed in the document
accompanying the data adapter.
1
7
3
itdata RBP 032896
2
5
Phone
5
4
Line
I/O
6
5. 4-wire modular cord
6. 25-pair cable
7. To TN2181 digital line circuit pack
