Lucent Technologies DEFINITY Installation For Adjuncts And Peripherals page 73

DEFINITY ECS Release 8.2
Installation for Adjuncts and Peripherals 555-233-116
4 Data Modules and Asynchronous Data Units
Connect Data Modules
Table 11. DTE-mode RS-232 signal-rate lead settings for the 7400A
If you selected AT control in an earlier step, set
You want only 1 data speed.
You want 2 data speeds.
You want only 3 or 4 data speeds.

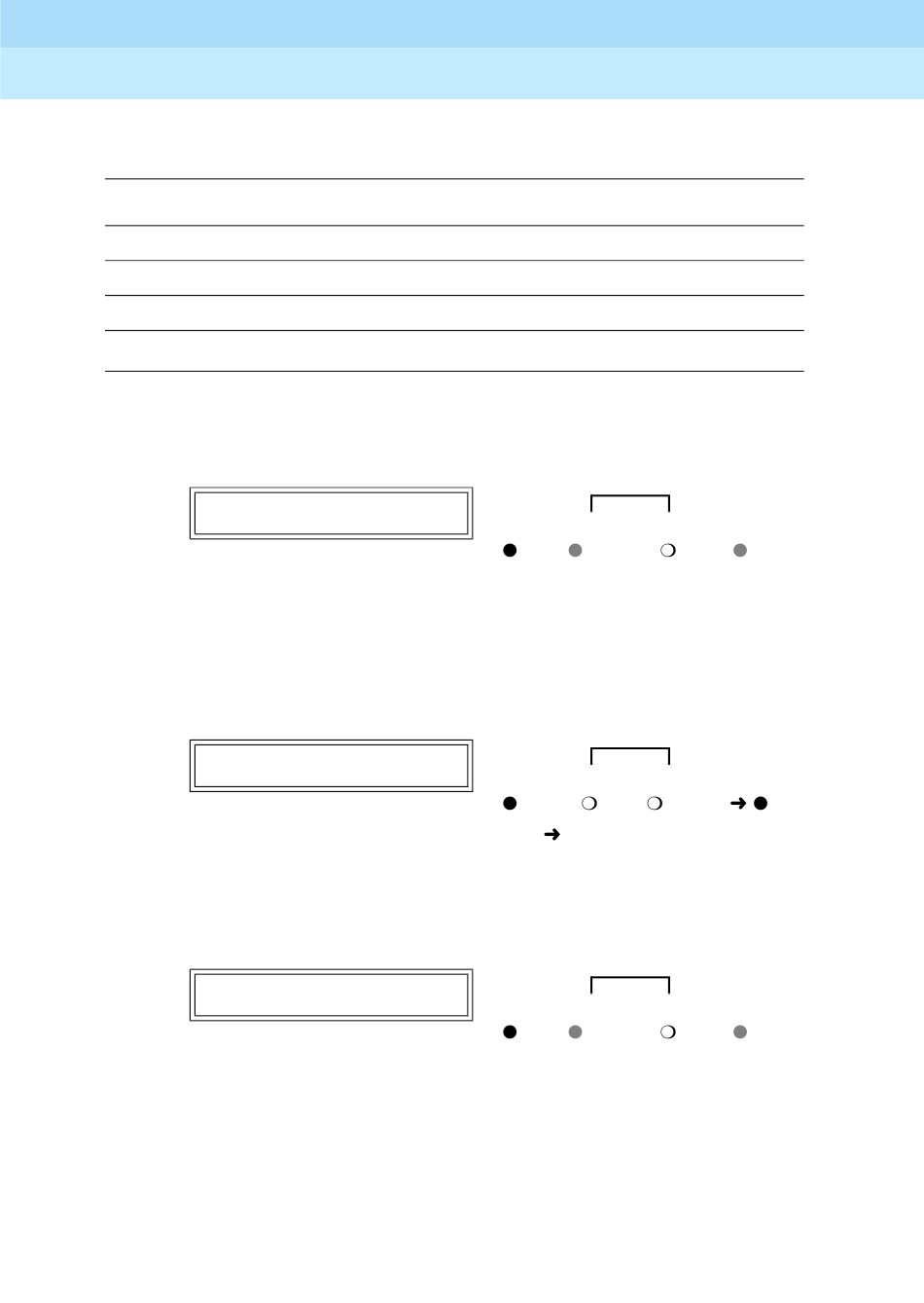

3. When the SET CI LEAD? prompt appears, press the NEXT/NO button to
keep the default (OFF) or the ENTER/YES button to make a change.
4. If you pressed ENTER/YES in the preceding step and the CI LEAD = ON?
prompt appears, press the ENTER/YES button again to confirm your
selection.
5. When the SET CI2 LEAD? prompt appears, press the NEXT/NO button to
keep the default (OFF) or the ENTER/YES button
SET CI LEAD?
Choose a button indicated by the question mark (?)
CI LEAD=ON?
Push the button indicated by the arrow ( )
SET CI2 LEAD?
Choose a button indicated by the question mark (?)
CI CH
OFF OFF
OFF OFF
ON ON
ON ON
DATA NEXT/NO BACK ENTER/YES
?
NEXT/NO BACK ENTER/YES
DATA
make a change.
to
DATA NEXT/NO BACK ENTER/YES
?
Issue 1
April 2000
51
CI2 CH2
OFF OFF
OFF OFF
OFF OFF
ON ON
?
?
