1. Release 8r PPN cabinet
2. AUX connector on processor carrier
(use wire pair 50 and 25, tip and ring)
3. Port carrier (with analog line circuit pack)

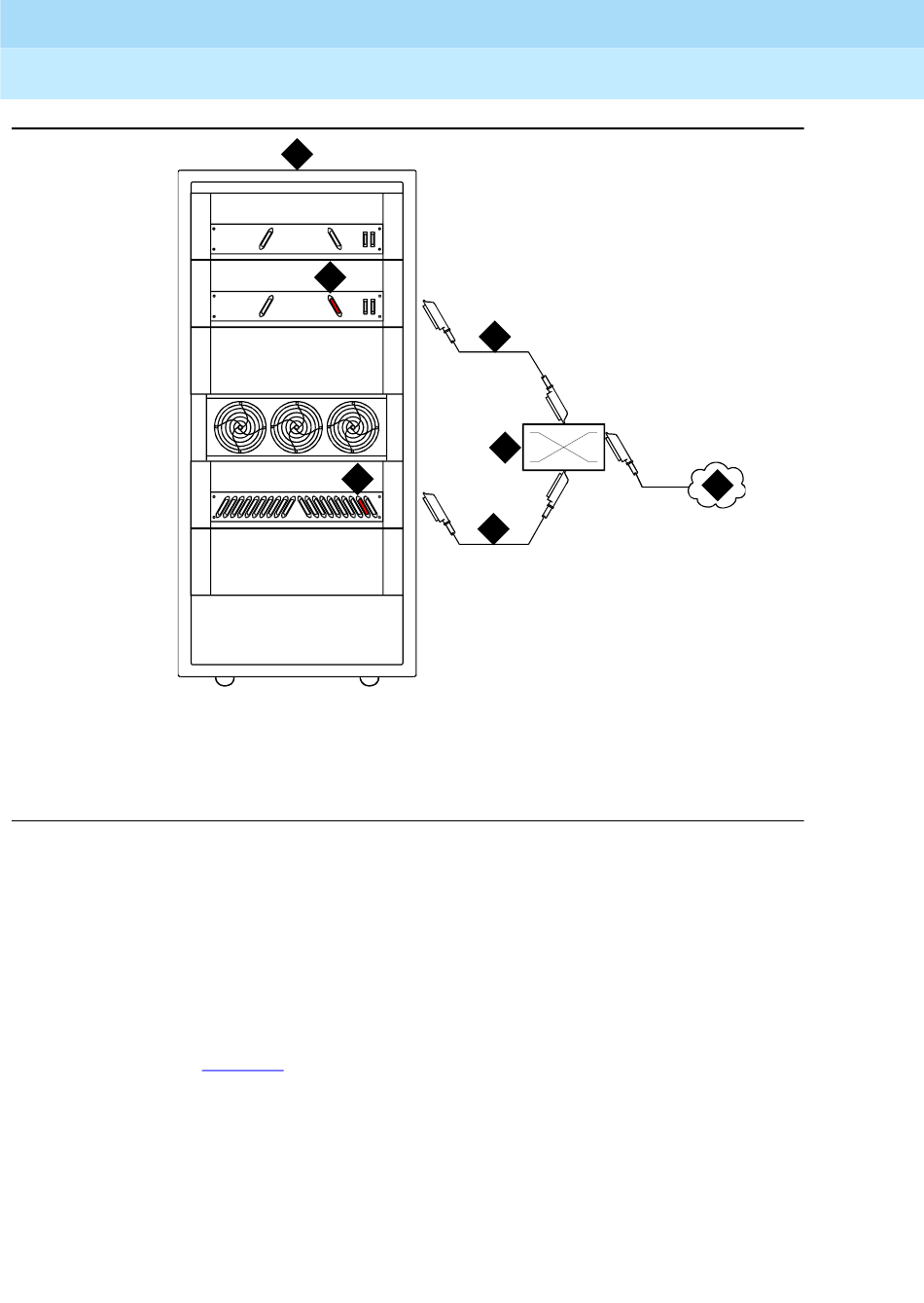

Figure 45. Analog Loopback Connections R8r
Installing INADS Analog Loopback on a High-
Reliability System
Be sure to place the TN1648B SYSAM circuit packs in different cabinets or
processor carriers. Also be sure to place the analog line circuit packs in the
same cabinets or carriers as the TN1648 circuit packs.
1. Connect each INADS tip/ring port to an analog station port via the MDF.
See
2. Connect each tip/ring port to a separate analog line circuit pack.
1
2
3
cydfmdf RPY 040698
Figure 45.
4
5
6
4. B25A 25-pair cable to AUX
5. Main distribution frame (MDF)
6. B25A 25-pair cable to circuit pack
7. PSTN or DEFINITY extension
