Goodrive35 inverters
Environment
inverter (do not install the inverter on the flammable materials such as wood);
keep away from direct sunlight, oil mist, steam and vibration environment.
<1000m
Altitude
If the elevation is above 1000m, derate 1% for every additional 100m.
≤ 5.88m/s
Vibration
Installation The inverter should be installed in upright position to ensure sufficient cooling
direction effect.
Note:
1. Goodrive35 series inverters should be installed in a clean and well ventilated environment
according to enclosure classification.
2. Cooling air must be clean, free from corrosive materials and electrically conductive dust.

4.2.2 Installation direction

The inverter may be installed on the wall or in a cabinet.
The inverter must be installed in an upright position. Check the installation site according to the
requirements below. Refer to chapter Dimension Drawings in the appendix for frame details.

4.2.3 Installation manner

The inverter can be installed in three different ways, depending on the frame size:
a) Wall mounting (for the inverters of 380 V≤315 kW and the inverters of 660 V≤350 kW)
b) Flange mounting (for the inverters of 380 V≤200 kW and the inverters of 660 V≤220 kW)
c) Floor mounting (for the inverters of 380 V 220-500 kW and the inverters of 660 V 250 – 630 kW)
2 (
0.6g)

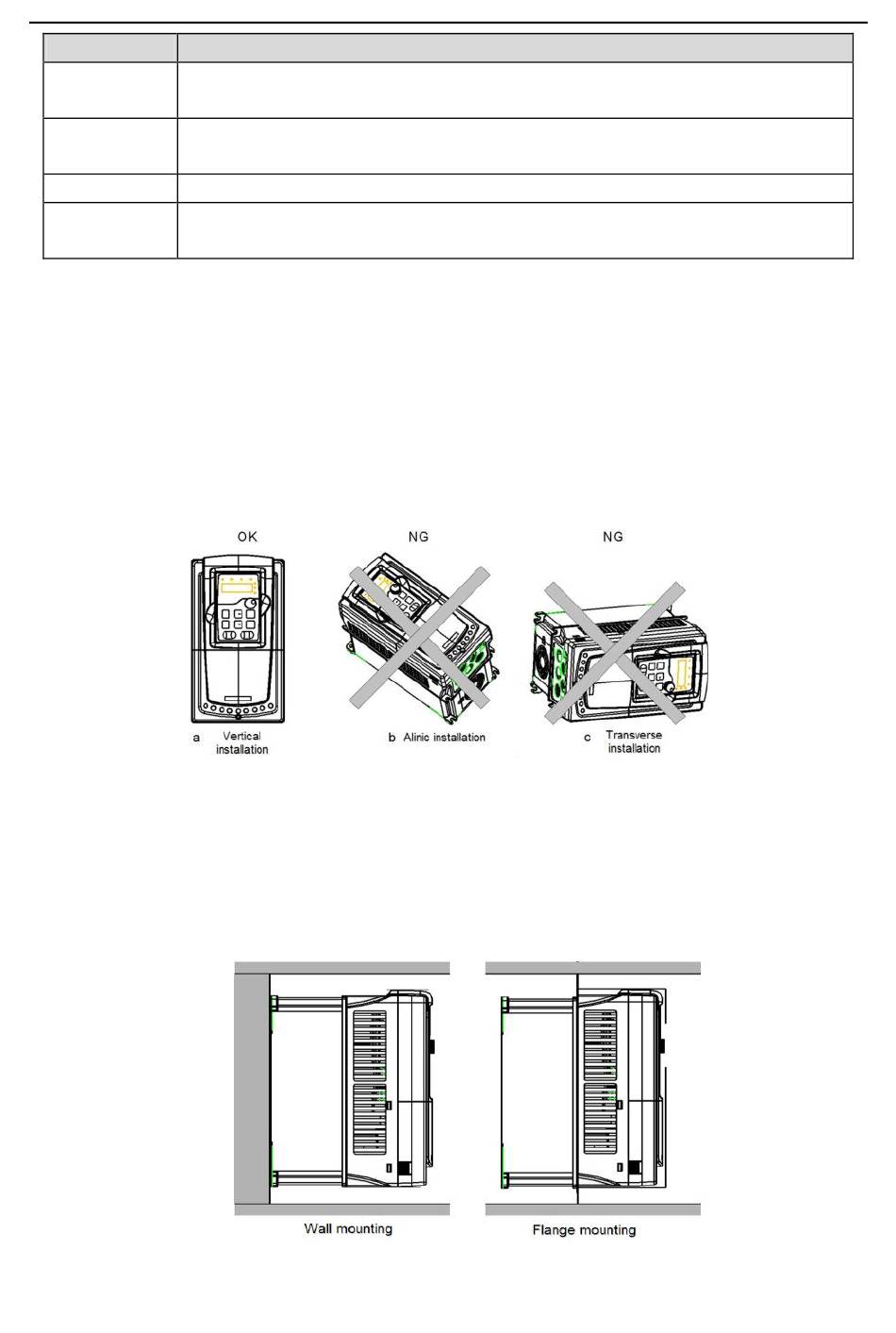

Fig 4-1 Installation direction of the inverter
Fig 4-2 Installation manner
Conditions
15
Installation guidelines
