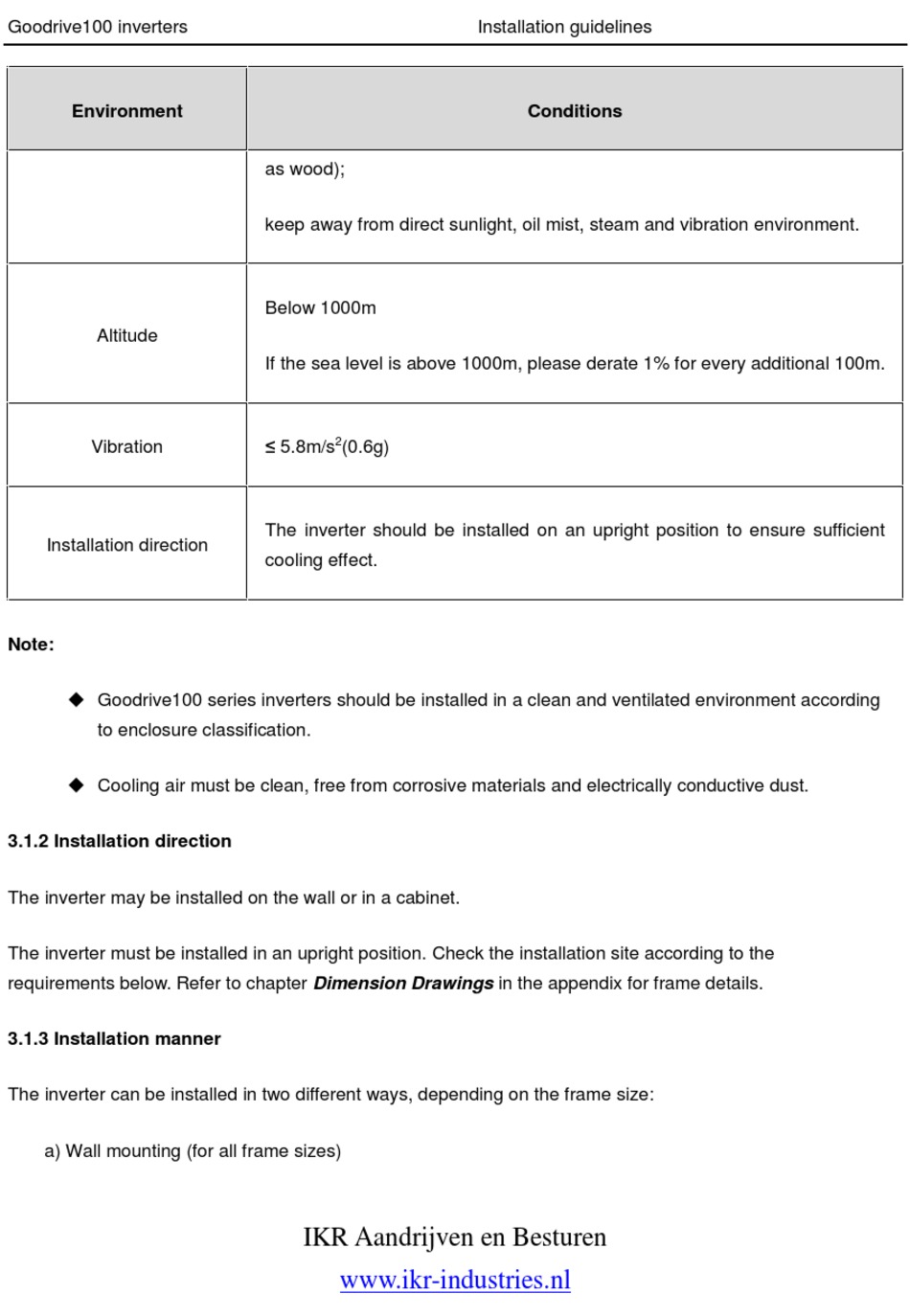

Goodrive100 inverters
Environment
Altitude
Vibration

Installation direction

Note:
 Goodrive100 series inverters should be installed in a clean and ventilated environment according
to enclosure classification.
 Cooling air must be clean, free from corrosive materials and electrically conductive dust.
3.1.2 Installation direction
The inverter may be installed on the wall or in a cabinet.
The inverter must be installed in an upright position. Check the installation site according to the
requirements below. Refer to chapter Dimension Drawings in the appendix for frame details.

3.1.3 Installation manner

The inverter can be installed in two different ways, depending on the frame size:
a) Wall mounting (for all frame sizes)
as wood);
keep away from direct sunlight, oil mist, steam and vibration environment.
Below 1000m
If the sea level is above 1000m, please derate 1% for every additional 100m.
2
≤ 5.8m/s (0.6g)
The inverter should be installed on an upright position to ensure sufficient
cooling effect.
IKR Aandrijven en Besturen
www.ikr-industries.nl
Installation guidelines
Conditions
