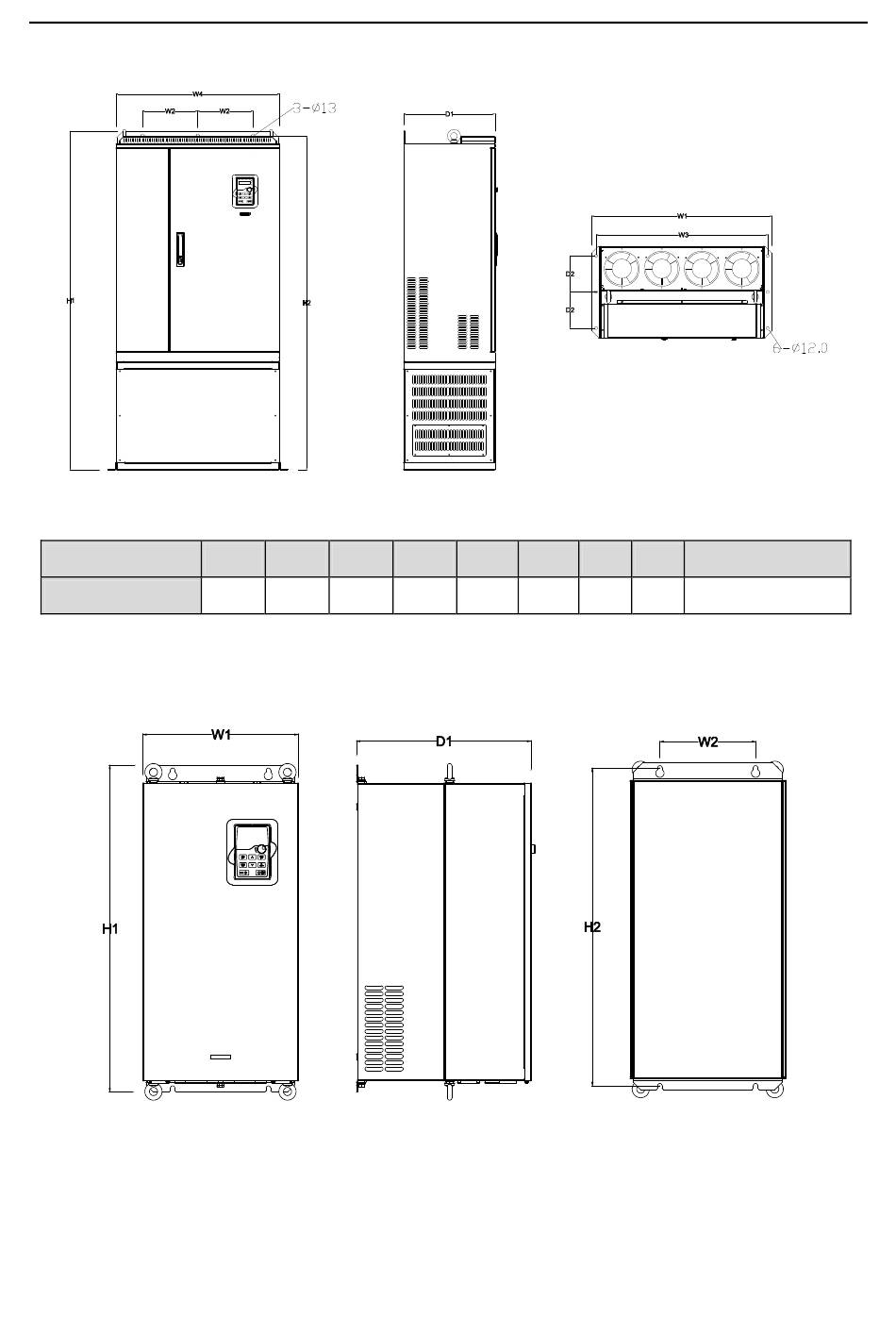

C.4.3 Floor installation

Floor installation of 380 V 220-315 kW inverters
Installation hole
Model
W1
W2
W3
W4
H1
H2
D1
D2
220 kW – 315 kW
13\12
750
230
714
680
1410 1390
380
150
C.5 Dimensions for inverters of AC 3PH 520 V (-15%) – 690 V (+10%)
C.5.1 Wall installation
Wall installation of 660 V 22-132 kW inverters
252
