Goodrive35 inverters
4.4.4.2 Terminal instruction
Terminal name
PWR
A1+, A1-, B1+, B1-, Z1+, Z1-
A2+, A2-, B2+, B2-,
AO+, AO-, BO+, BO-, ZO+ and ZO-
COM
Note: Refer to section 4.4.1 for detailed information of AO1, AO2, AI1, AI2, 485 and other terminals.

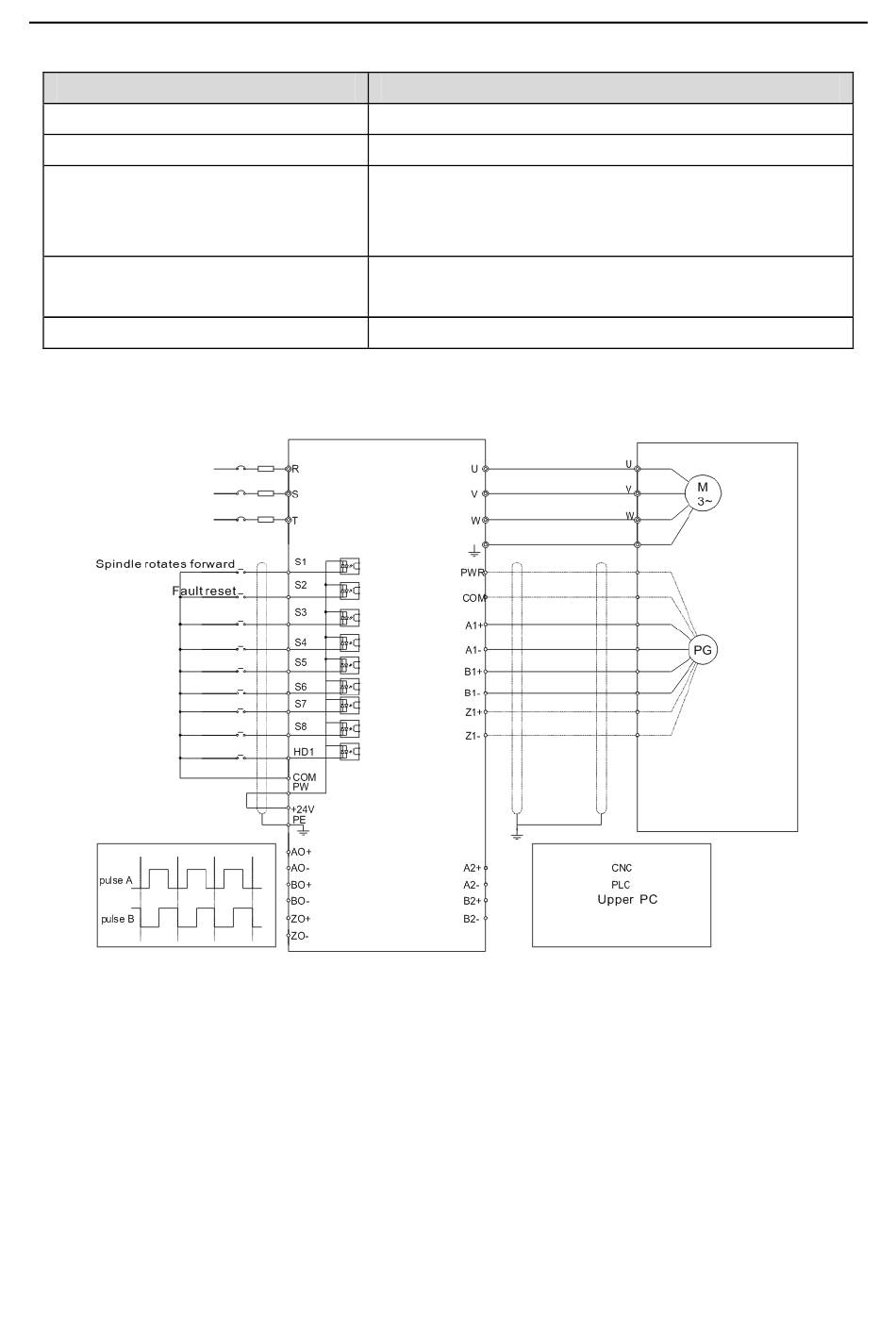

4.4.4.3 Wiring diagram
Power supply, provide 5 V/12 V, 200mA power supply
Signal input
Pulse reference signal, default as 5 V input. External
current-limiting resistor is needed when the input
voltage is above 10 V
Encoder signal output, 5 V differential signal and the
ratio of frequency-division is 1: 1
Grounding terminal of the encoder
31
Installation guidelines
Instruction
