INVT Goodrive 35 Series Operation Manual page 34

Goodrive35 inverters

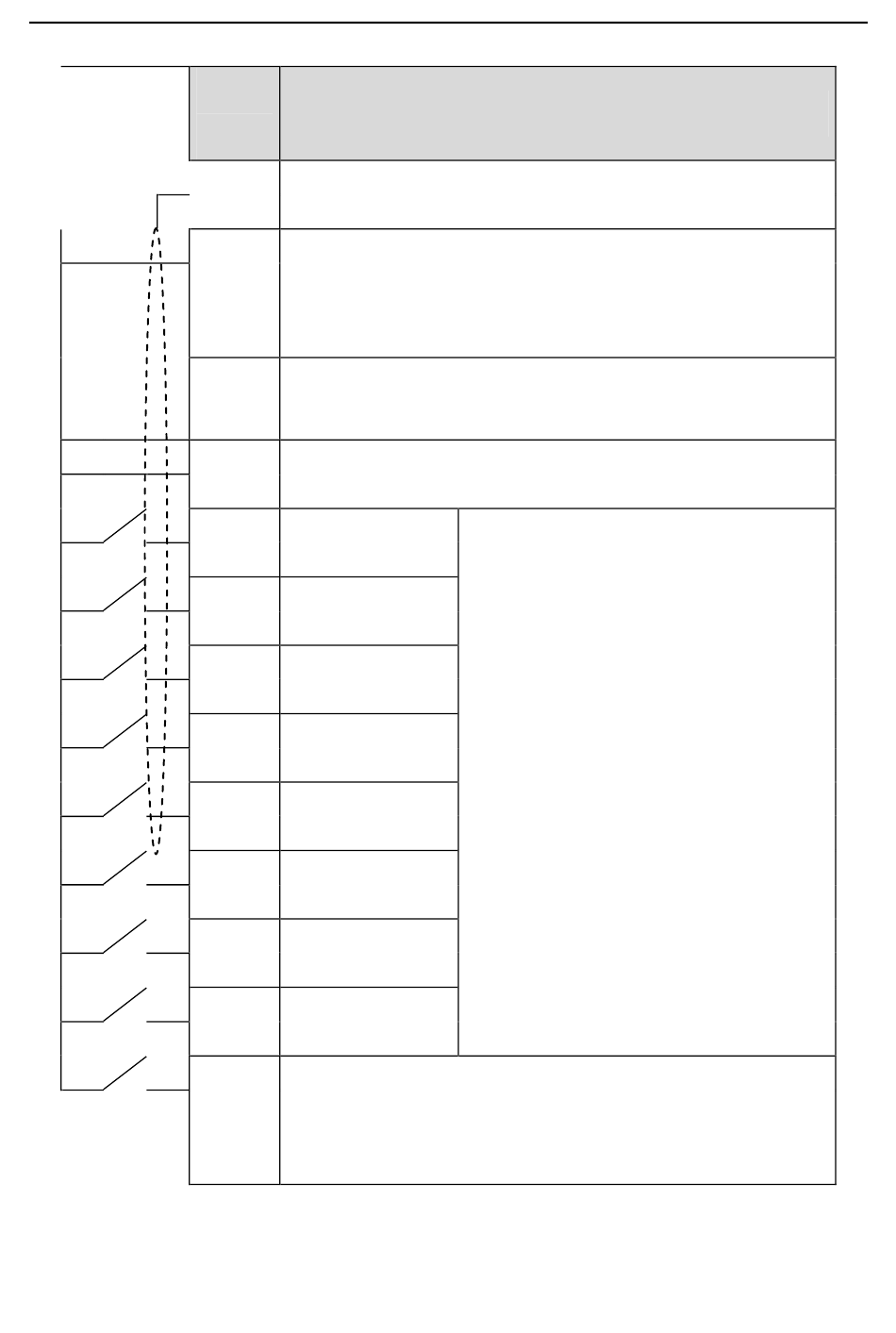

Terminal
name
Grounding terminal
PE
Provide the input switch working power supply from external to
internal.
PW
Voltage range: 12 – 24 V
The inverter provides the power supply for users with a maximum
24 V
output current of 200mA
COM +24 V common terminal
S1 Switch input 1
S2 Switch input 2
S3 Switch input 3
S4 Switch input 4
S5 Switch input 5
S6 Switch input 6
S7 Switch input 7
S8 Switch input 8
Except for S1 – S8, this terminal can be used as high frequency
input channel.
HDI
Max input frequency: 50 kHz
Description
1. Internal impedance: 3.3kΩ
2. 12 – 30 V voltage input is available
3. The terminal is the dual-direction input
terminal supporting both NPN and PNP
4. Max input frequency: 1 kHz
5. All are programmable digital input
terminal. User can set the terminal function
through function codes.
27
Installation guidelines
