Goodrive35 inverters
Code Fault
Grounding
ETH2
shortcut fault 2
Speed deviation
dEu
fault
Maladjustment
STo
fault
Electronic
LL
underload fault
ENC1 Encoder offline
O fault
ENC1 Encoder reverse
D fault
Encoder Z pulse
ENC1Z
offline
Motor over-
OT
temperature fault

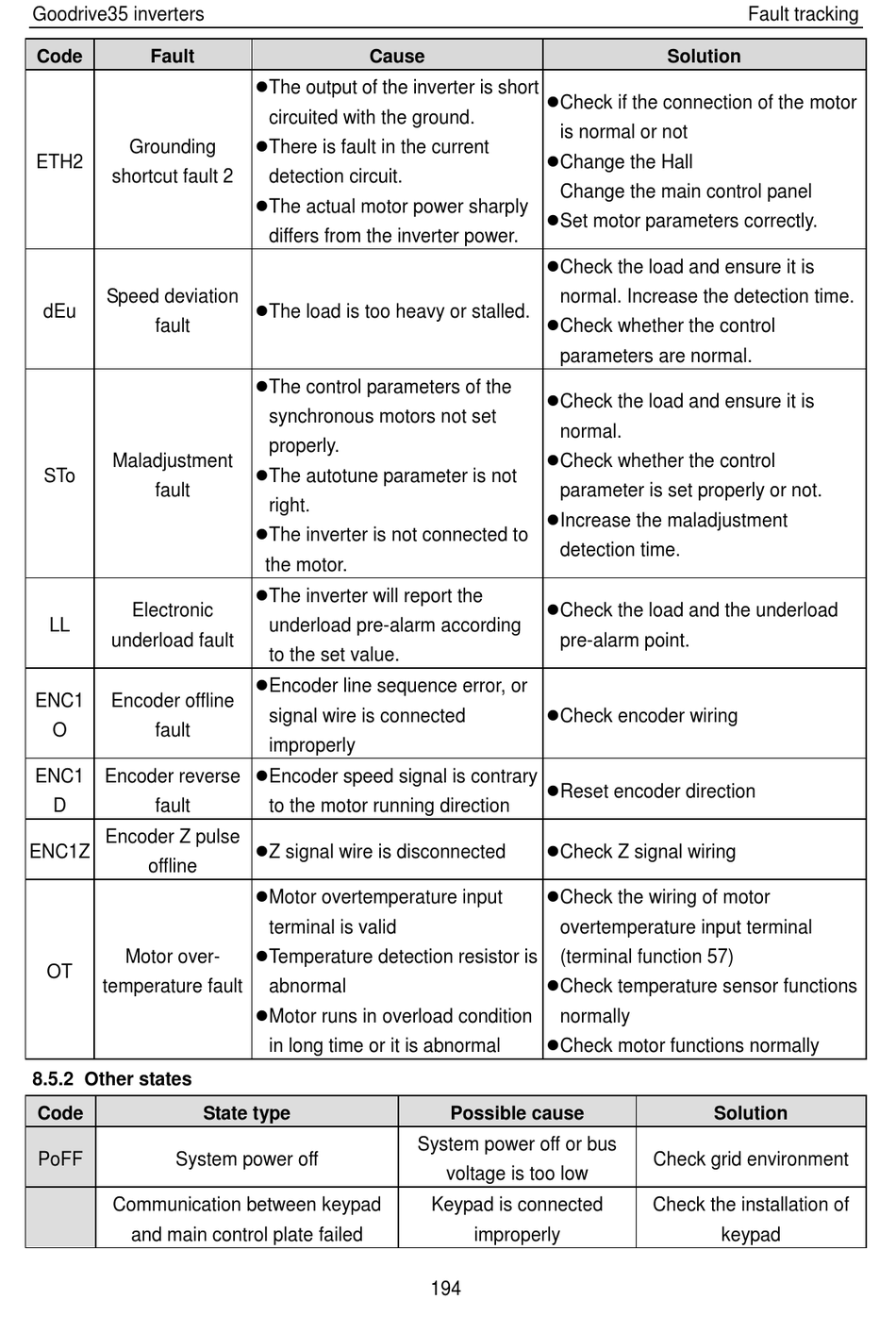

8.5.2 Other states

Code
PoFF System power off
Communication between keypad
and main control plate failed
Cause
 The output of the inverter is short
circuited with the ground.
 There is fault in the current
detection circuit.
 The actual motor power sharply
differs from the inverter power.
 The load is too heavy or stalled.
 The control parameters of the
synchronous motors not set
properly.
 The autotune parameter is not
right.
 The inverter is not connected to
the motor.
 The inverter will report the
underload pre-alarm according
to the set value.
 Encoder line sequence error, or
signal wire is connected
improperly
 Encoder speed signal is contrary
to the motor running direction
 Z signal wire is disconnected
 Motor overtemperature input
terminal is valid
 Temperature detection resistor is
abnormal
 Motor runs in overload condition
in long time or it is abnormal
State type
 Check if the connection of the motor
is normal or not
 Change the Hall
Change the main control panel
 Set motor parameters correctly.
 Check the load and ensure it is
normal. Increase the detection time.
 Check whether the control
parameters are normal.
 Check the load and ensure it is
normal.
 Check whether the control
parameter is set properly or not.
 Increase the maladjustment
detection time.
 Check the load and the underload
pre-alarm point.
 Check encoder wiring
 Reset encoder direction
 Check Z signal wiring
 Check the wiring of motor
overtemperature input terminal
(terminal function 57)
 Check temperature sensor functions
normally
 Check motor functions normally
Possible cause
System power off or bus
voltage is too low
Keypad is connected
improperly
194
Fault tracking
Solution
Solution
Check grid environment
Check the installation of
keypad
