INVT Goodrive 35 Series Operation Manual page 230

Goodrive35 inverters
Note: the blank in the above command is for illustration. The blank cannot be added in the actual
application unless the upper monitor can remove the blank by themselves.

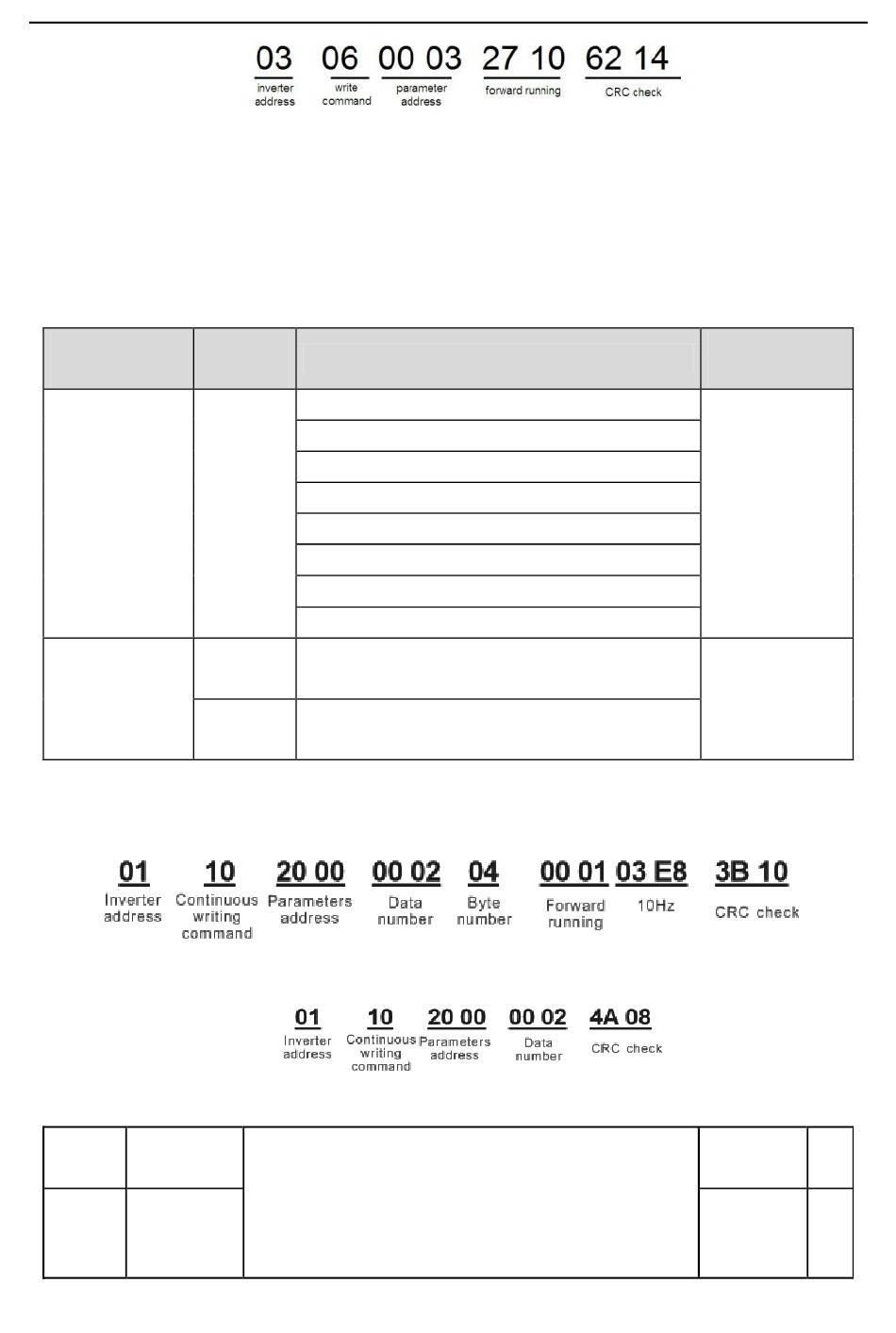

10.4.8.3 Example of continuous writing command10H
Example 1: make the inverter whose address is 01H run forward at 10 Hz. Refer to the instruction of
2000H and 0001. Set the address of "communication setting frequency" is 2001H and 10 Hz
corresponds to 03E8H. See the table below.
Function
instruction
Communication
control
command
The address of
communication
setting
Set P00.01 to 2 and P00.06 to 8.
The command sent to the inverter:
If the response message is as below:
Example 2: set the ACC time of 01H inverter as 10s and the DEC time as 20s
P00.11 ACC time 1
P00.12 DEC time 1
Address
definition
0001H: forward running
0002H: reverse running
0003H: forward jogging
0004H: reverse jogging
2000H
0005H: stop
0006H: coast to stop (emergency stop)
0007H: fault reset
0008H: jogging stop
Communication setting frequency (0–Fmax
2001H
(unit: 0.01 Hz))
PID given, range (0 – 1000, 1000 corresponds
2002H
to100.0% )
ACC time means the time needed if the inverter
speeds up from 0 Hz to the Max One (P00.03).
DEC time means the time needed if the inverter
speeds down from the Max Output frequency to 0 Hz
(P00.03).
Data meaning instruction
223
Communication protocol
R/W
characteristics
W/R
W/R
Depend on
○
model
Depend on
○
model
