4.4.6 S1 terminal (EC-PG302-05) instruction

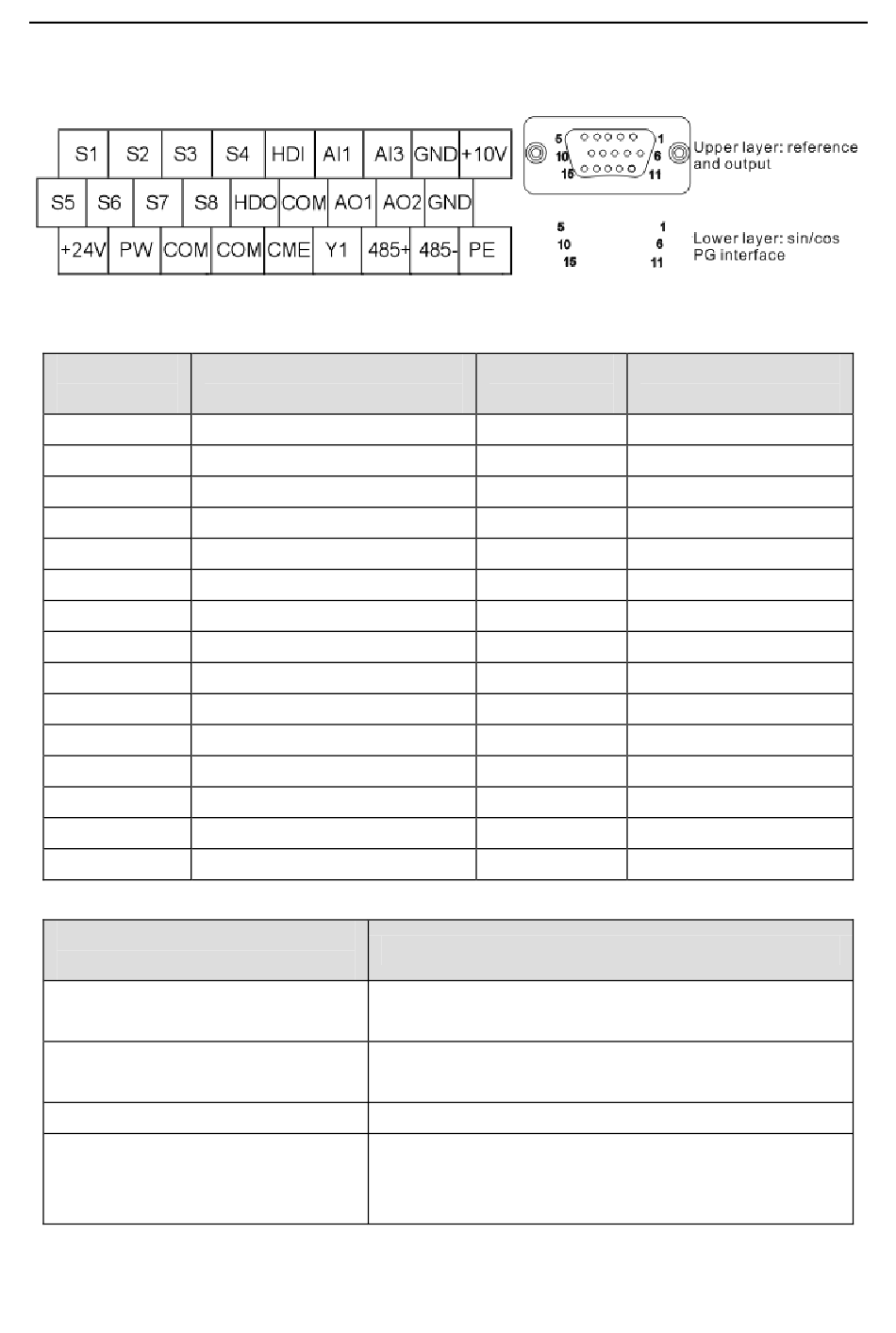

4.4.6.1 Sin/cos terminal layout
4.4.6.2 DB15 interface instruction
DB15 (upper
layer)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
4.4.6.3 DB15 pin function instruction
Name of upper layer terminal
(pulse reference interface)
A2+, A2-, B2+, B2-,
AO+, AO-, BO+, BO-, ZO+, ZO-
+5 V, 0 V
A+, A-, B+, B-, C+, C-, D+, D-, R+,
R-
Pulse reference and output
interface signal
AO+
AO-
BO+
BO-
ZO+
ZO-
/
/
/
/
A2+
A2-
B2+
B2-
/
5 V differential quadrature pulse reference signal,
support 400 kHz at maximum
Encoder pulse signal frequency-division output, 5 V
differential signal, frequency division ratio is 1: 1
Encoder power, can provide 5 V± 5%, 200mA.
Sin/cos encoder signal input, support
SINA/SINB/SINC/SIND 0.8 – 1.2 Vpp, SINR 0.2 – 0.85
Vpp, 200 kHz at maximum
DB15 (Lower
layer)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Instruction
