INVT Goodrive 35 Series Operation Manual page 85

Goodrive35 inverters
Function
Name
code
Lower output limit
P06.17
of AO1
Corresponding
P06.18 AO1 output of
lower limit
Upper output limit
P06.19
of AO1
Corresponding
P06.20 AO1 output of
upper limit
AO1 output filter
P06.21
time
Lower output limit
P06.22
of AO2
Corresponding
P06.23 AO2 output of
lower limit
Upper output limit
P06.24
of AO2
Corresponding
P06.25
AO2 output of
Detailed instruction of parameters
10: Analog AI1 input value
11: Analog AI2 input value
12: Analog AI3 input value
13: High speed pulse HDI input value
14: MODBUS communication set value 1
15: MODBUS communication set value 2
16: PROFIBUS/CANopen communication set value 1
17: PROFIBUS/CANopen communication set value 2
18: Ethernet communication set value 1
19: Ethernet communication set value 2
20 – 21: Reserved
22: Torque current (relative to 2 times of the rated
current of the motor)
23: Pre-magnetizing current (100% corresponds to
10 V)
24: Setting frequency
25: Ramp reference frequency
26: Operation speed

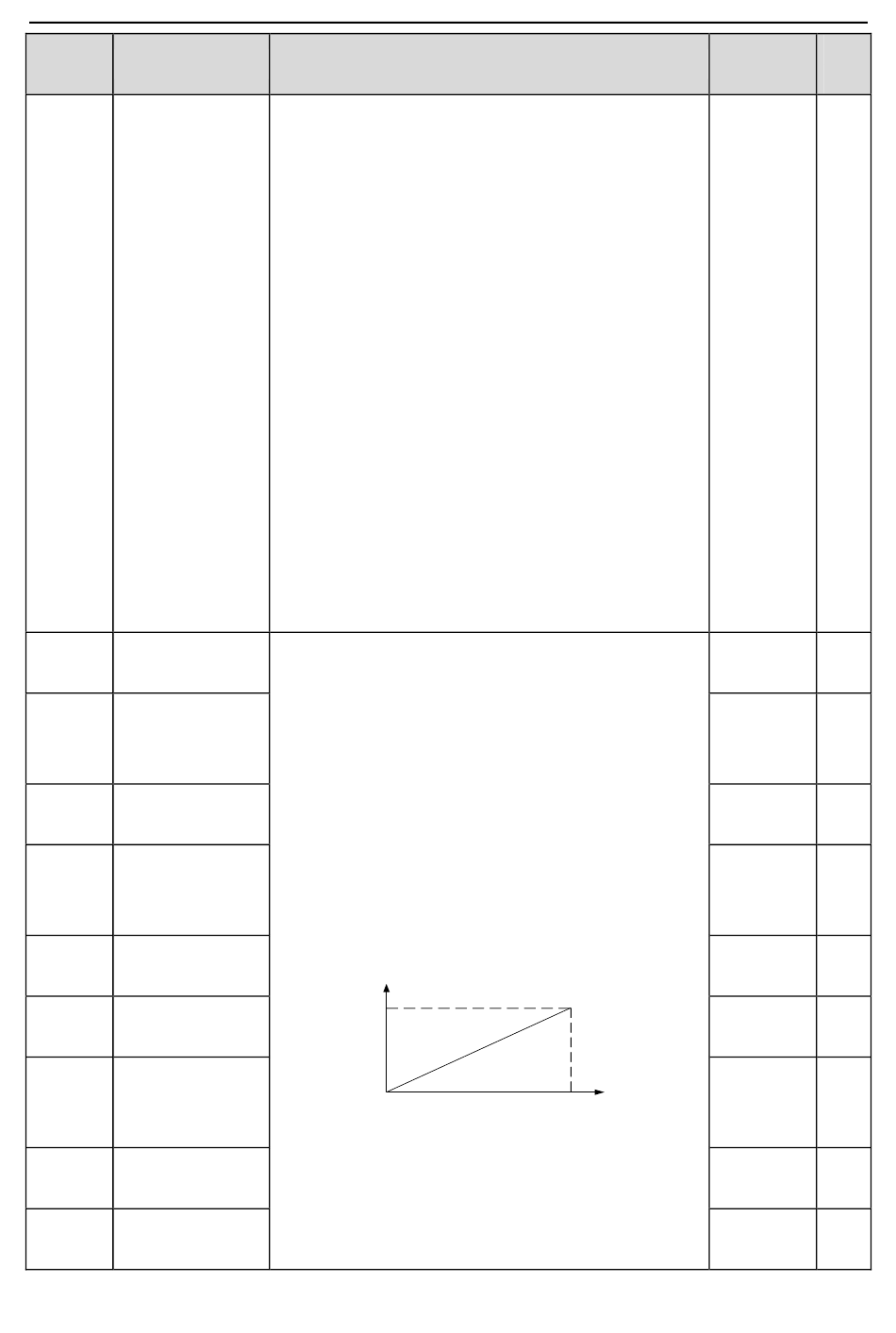

The above function codes define the relative
relationship between the output value and analog
output. When the output value exceeds the range of
set maximum or minimum output, it will count
according to the low-limit or upper-limit output.
When the analog output is current output, 1mA
equals to 0.5 V.
In different cases, the corresponding analog output of
100% of the output value is different. See each
application for detailed information. Please refer to
Analog output in chapter 7 for more details.
AO
10V (20mA)
0.0%
Setting range of P06.17: -300.0% – P06.19
Setting range of P06.18: 0.00 V – 10.00 V
Setting range of P06.19: P06.17 – 300.0%
Setting range of P06.20: 0.00 V – 10.00 V
Setting range of P06.21: 0.000s – 10.000s
78
Function parameters
100.0%
Default Mod
value ify
○
0.0%
○
0.00 V
○
100.0%
○
10.00 V
○
0.000 s
○
0.0%
○
0.00 V
○
100.0%
○
10.00 V
