3. When connecting the brake resistor, take off the yellow warning label marked with (+) and (-) on the
terminal bar before connecting brake resistor wire, otherwise, poor contact will occur.

4.3.3 Terminals figure of main circuit

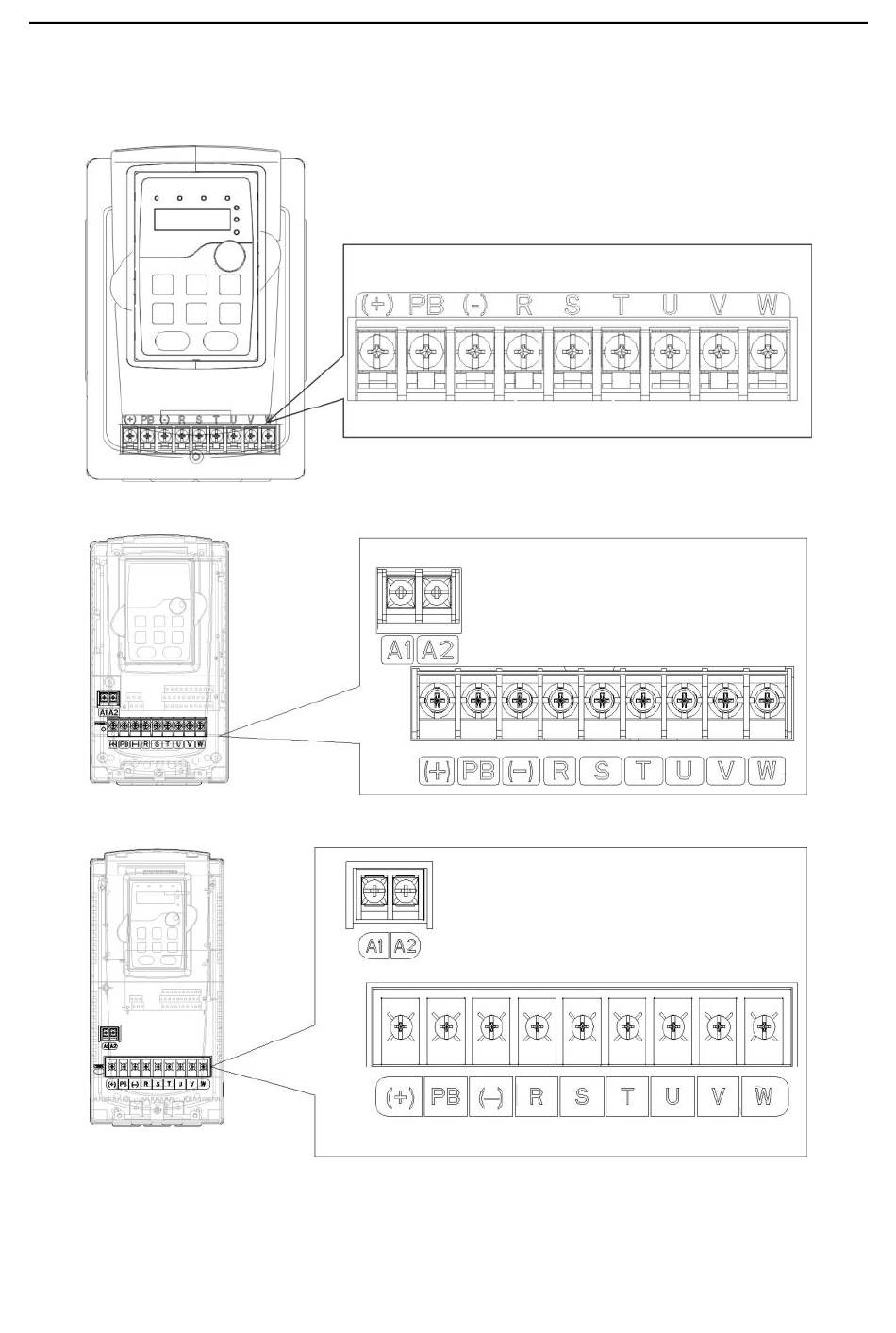

Fig 4-9 Terminals of main circuit for the inverters of 380 V 1.5 – 2.2 kW
Fig 4-10 Terminals of main circuit for the inverters of 380 V 4 – 5.5 kW
Fig 4-11 Terminals of main circuit for the inverters of 380 V 7.5 – 11 kW
