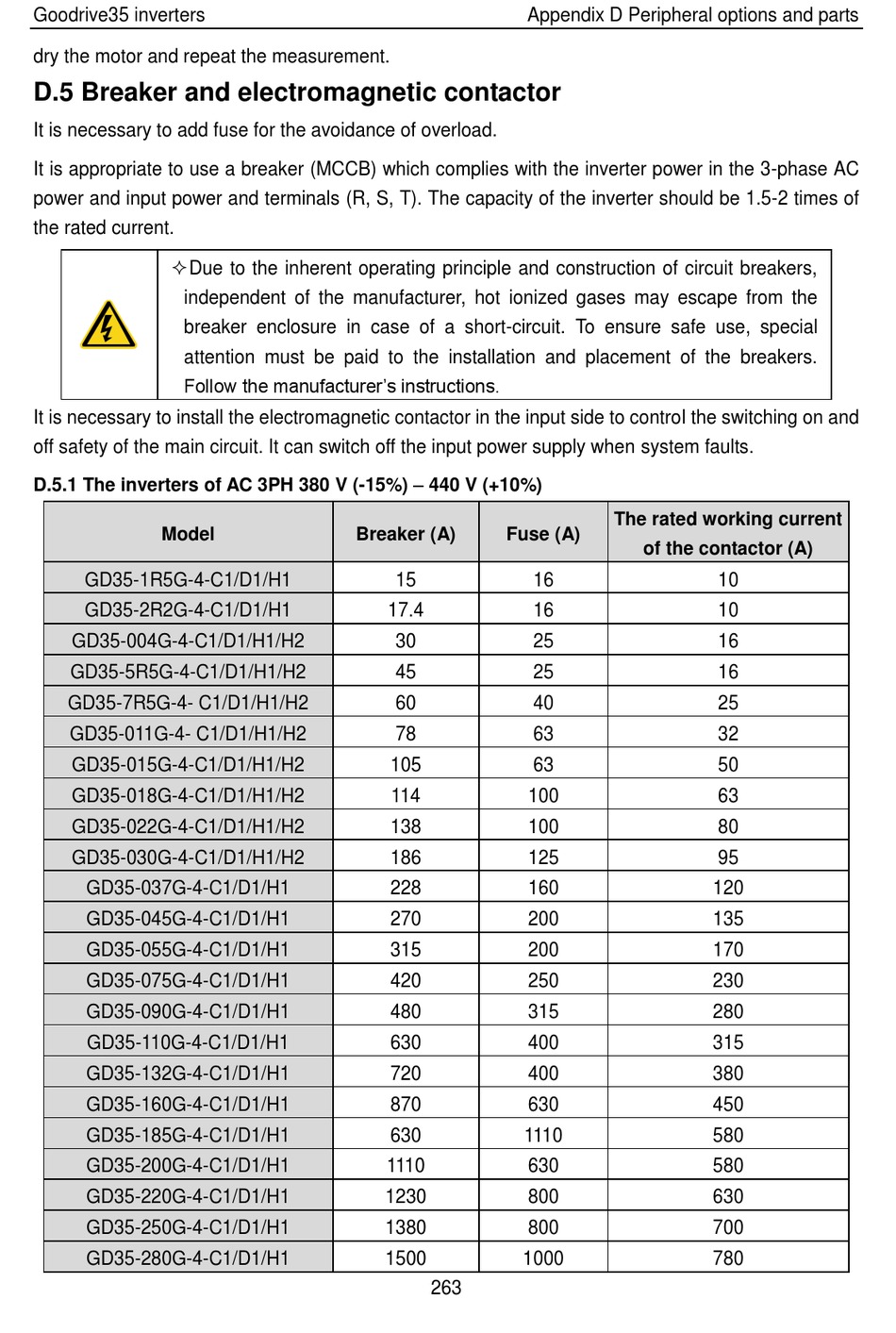

D.5 Breaker and electromagnetic contactor

It is necessary to add fuse for the avoidance of overload.
It is appropriate to use a breaker (MCCB) which complies with the inverter power in the 3-phase AC
power and input power and terminals (R, S, T). The capacity of the inverter should be 1.5-2 times of
the rated current.
 Due to the inherent operating principle and construction of circuit breakers,
independent of the manufacturer, hot ionized gases may escape from the
breaker enclosure in case of a short-circuit. To ensure safe use, special
attention must be paid to the installation and placement of the breakers.
Follow the manufacturer's instructions.
It is necessary to install the electromagnetic contactor in the input side to control the switching on and
off safety of the main circuit. It can switch off the input power supply when system faults.
D.5.1 The inverters of AC 3PH 380 V (-15%) – 440 V (+10%)
Model
GD35-1R5G-4-C1/D1/H1
GD35-2R2G-4-C1/D1/H1
GD35-004G-4-C1/D1/H1/H2
GD35-5R5G-4-C1/D1/H1/H2
GD35-7R5G-4- C1/D1/H1/H2
GD35-011G-4- C1/D1/H1/H2
GD35-015G-4-C1/D1/H1/H2
GD35-018G-4-C1/D1/H1/H2
GD35-022G-4-C1/D1/H1/H2
GD35-030G-4-C1/D1/H1/H2
GD35-037G-4-C1/D1/H1
GD35-045G-4-C1/D1/H1
GD35-055G-4-C1/D1/H1
GD35-075G-4-C1/D1/H1
GD35-090G-4-C1/D1/H1
GD35-110G-4-C1/D1/H1
GD35-132G-4-C1/D1/H1
GD35-160G-4-C1/D1/H1
GD35-185G-4-C1/D1/H1
GD35-200G-4-C1/D1/H1
GD35-220G-4-C1/D1/H1
GD35-250G-4-C1/D1/H1
GD35-280G-4-C1/D1/H1
Breaker (A) Fuse (A)
15
17.4
30
45
60
78
105
114
138
186
228
270
315
420
480
630
720
870
630 1110
1110
1230
1380
1500 1000
