2.1.7 Main Menu Mode

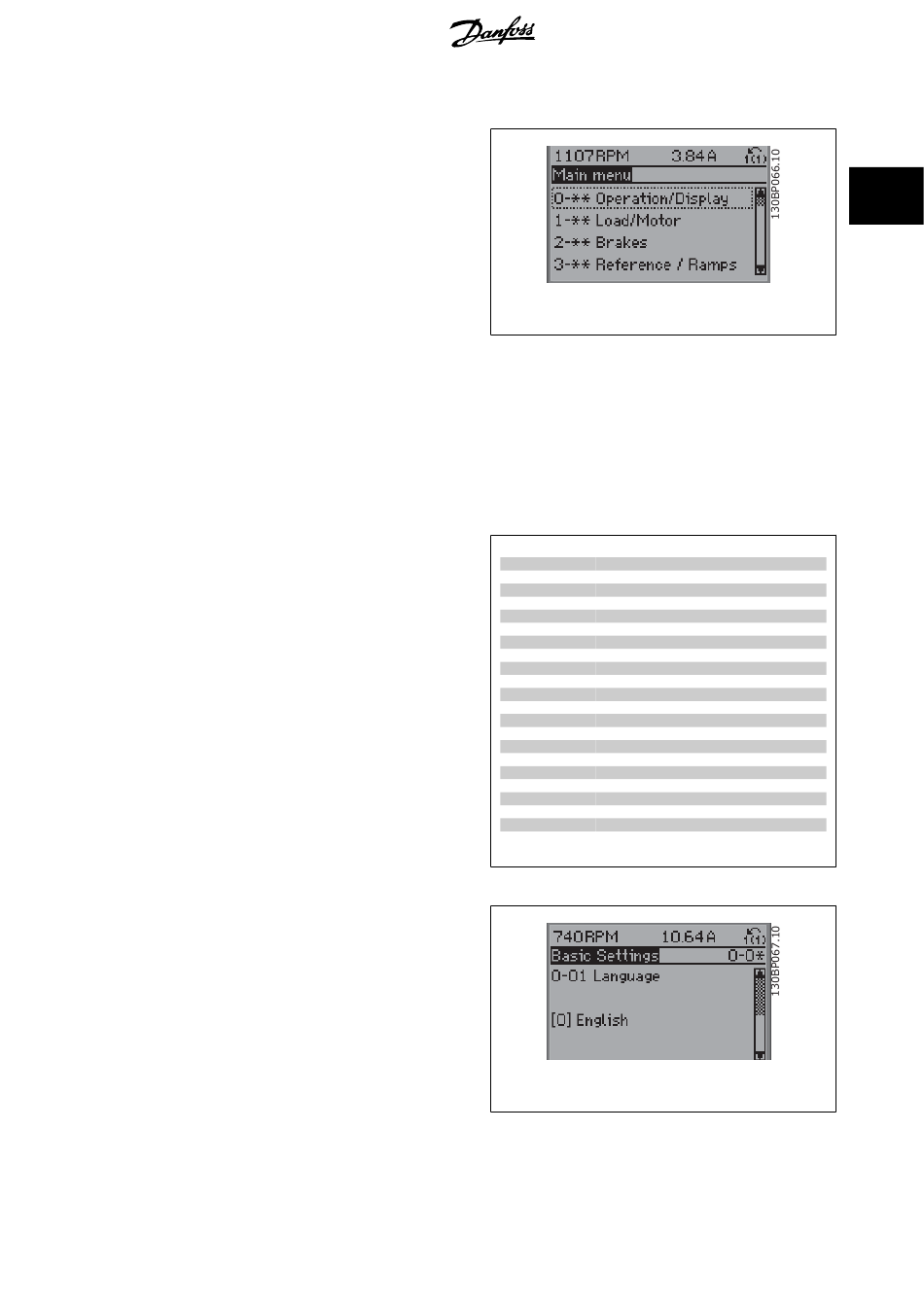

Select the Main Menu mode by pressing the [Main Menu] key. Illustration
6.2 shows the resulting read-out, which appears on the display of the
GLCP.
Lines 2 through 5 on the display show a list of parameter groups which
can be chosen by toggling the up and down buttons.
Each parameter has a name and number which remain the same regardless of the programming mode. In the Main Menu mode, the parameters are
divided into groups. The first digit of the parameter number (from the left) indicates the parameter group number.
All parameters can be changed in the Main Menu. The configuration of the unit (par.1-00) will determine other parameters available for programming.
For example, selecting Closed Loop enables additional parameters related to closed loop operation. Option cards added to the unit enable additional
parameters associated with the option device.
2.1.8 Parameter Selection
In the Main Menu mode, the parameters are divided into groups. Select
a parameter group by means of the navigation keys.
The following parameter groups are accessible:
After selecting a parameter group, choose a parameter by means of the
navigation keys.
The middle section on the GLCP display shows the parameter number and
name as well as the selected parameter value.
Illustration 2.14: Display example.
Group no.
0
1
2
3
4
5
6
8
11
13
14
15
16
18
20
21
22
23
25
26
28
* Only when MCA 107 AKLon is installed
**Only when MCB 109 is installed
Table 2.2: Parameter groups.
Illustration 2.15: Display example.
MG.11.N1.02 - VLT ® is a registered Danfoss trademark
2 How to Programme
Parameter group:
Operation/Display
Load/Motor
Brakes
References/Ramps
Limits/Warnings
Digital In/Out
Analog In/Out
Comm. and Options
AKD Lon*
Smart Logic
Special Functions
Drive Information
Data Readouts
Info & Readouts
Internal Control
Extended PID
Application Functions
Time-based Functions
Pack Controller
Analog I/O Option MCB 109**
Compressor functions
