ADAP-KOOL Drive Programming Guide

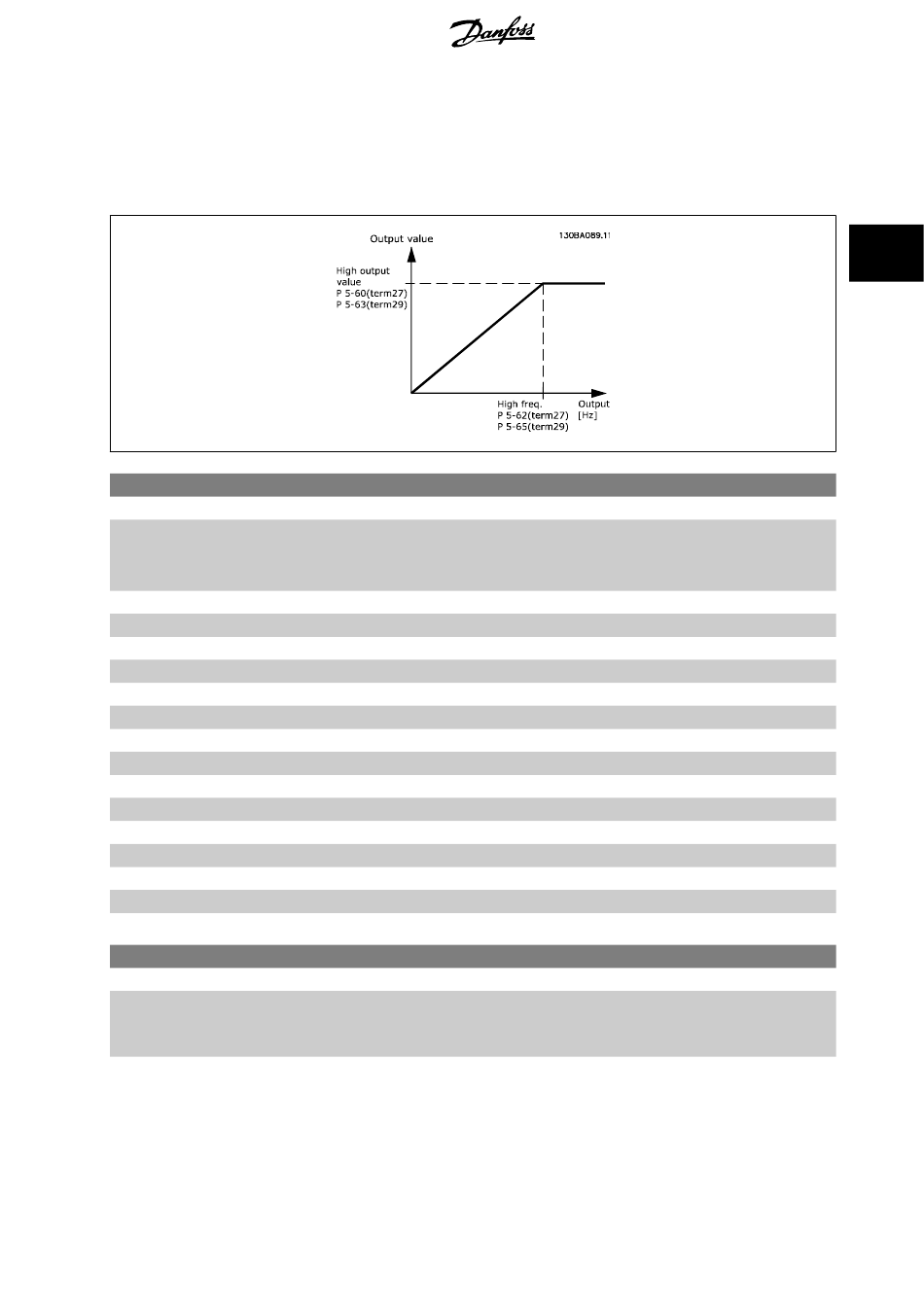

3.7.7 5-6* Pulse Outputs
Parameters for configuring the scaling and output functions of pulse outputs. The pulse outputs are designated to terminals 27 or 29. Select terminal 27
Terminal 27 Mode
output in par.5-01
5-60 Terminal 27 Pulse Output Variable
Option:
[0] * No operation
[45] Bus ctrl.
[48] Bus ctrl., timeout
[100] Output frequency
[101] Reference
[102] Feedback
[103] Motor current
[104] Torque rel to limit
[105] Torq relate to rated
[106] Power
[107] Speed
[108] Torque
[109] Max Out Freq
[113] Ext. Closed Loop 1
[114] Ext. Closed Loop 2
[115] Ext. Closed Loop 3
5-62 Pulse Output Max Freq #27
Range:
5000 Hz* [0 - 32000 Hz]
Terminal 29 Mode
and terminal 29 output in par.5-02
Function:
Same options and functions as par. 5-6*.
Select the operation variable assigned for terminal 27 readouts.
This parameter cannot be adjusted while the motor is running.
Function:
Set the maximum frequency for terminal 27, corresponding to the output variable selected in par.
Terminal 27 Pulse Output Variable
5-60
This parameter cannot be adjusted while the motor is running.
