ADAP-KOOL Drive Programming Guide
The relation will depend on the type of unit selected in par.0-30
Unit Type
Dimensionless
Speed
Flow, volume
Flow, mass
Velocity
Length
Temperature
Pressure
Power
0-30 Custom Readout Unit
Option:
[0]
[1] * %
[5] PPM
[10] 1/min
[11] RPM
[12] Pulse/s
[20] l/s
[21] l/min
[22] l/h
[23] m³/s
[24] m³/min
[25] m³/h
[30] kg/s
[31] kg/min
[32] kg/h
Custom Readout Unit
:
Speed Relation
Linear
Quadratic
Cubic
Function:

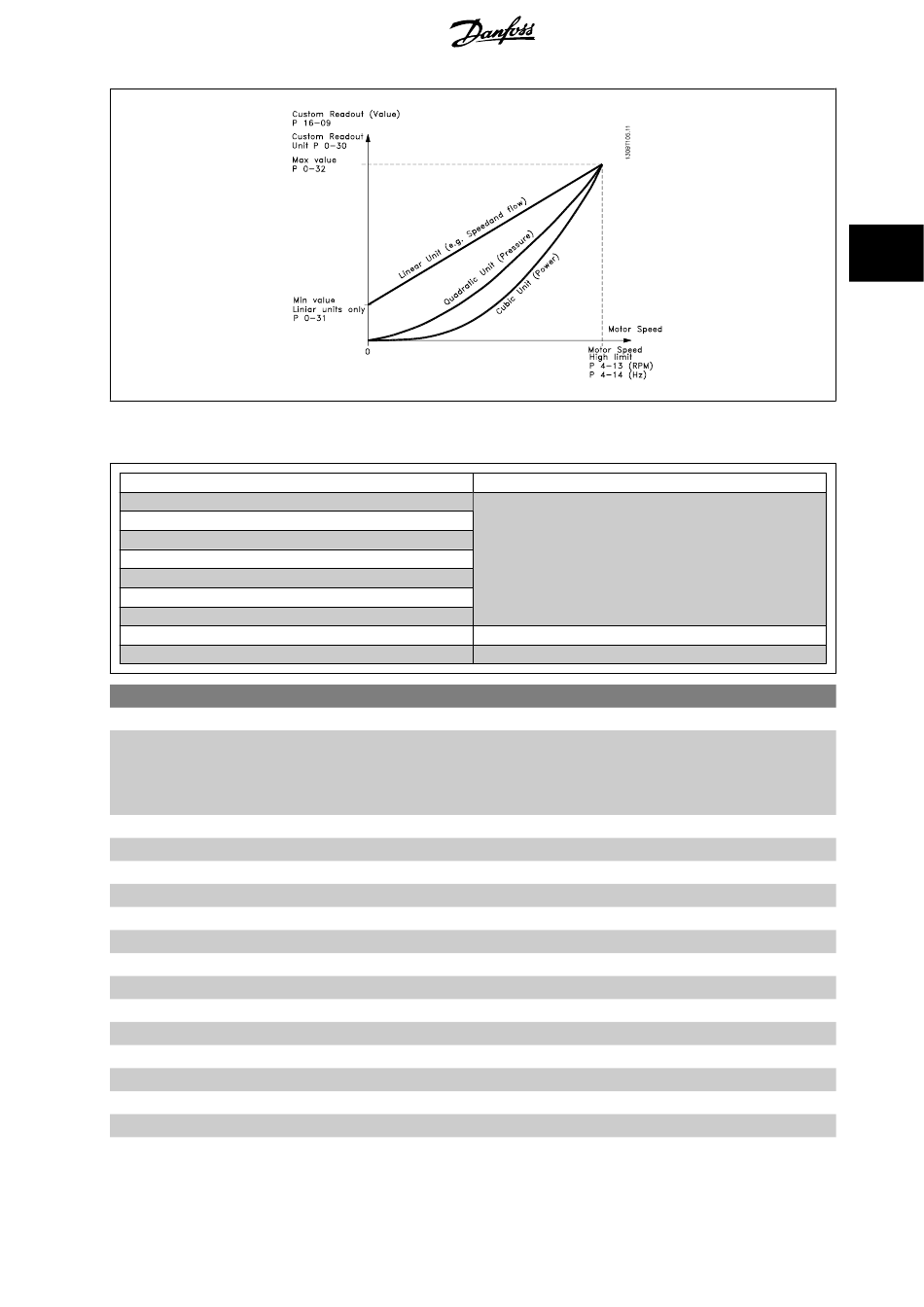

Program a value to be shown in the display of the LCP. The value has a linear, squared or cubed
relation to speed. This relation depends on the unit selected (see table above). The actual calculated
Custom Readout
value can be read in par.16-09
Readout [16-09] in par.0-20 Display Line 1.1 Small
MG.11.N1.02 - VLT ® is a registered Danfoss trademark
3 Parameter Description
, and/or shown in the display be selecting Custom
to par. 0-24 Display Line 3 Large .
