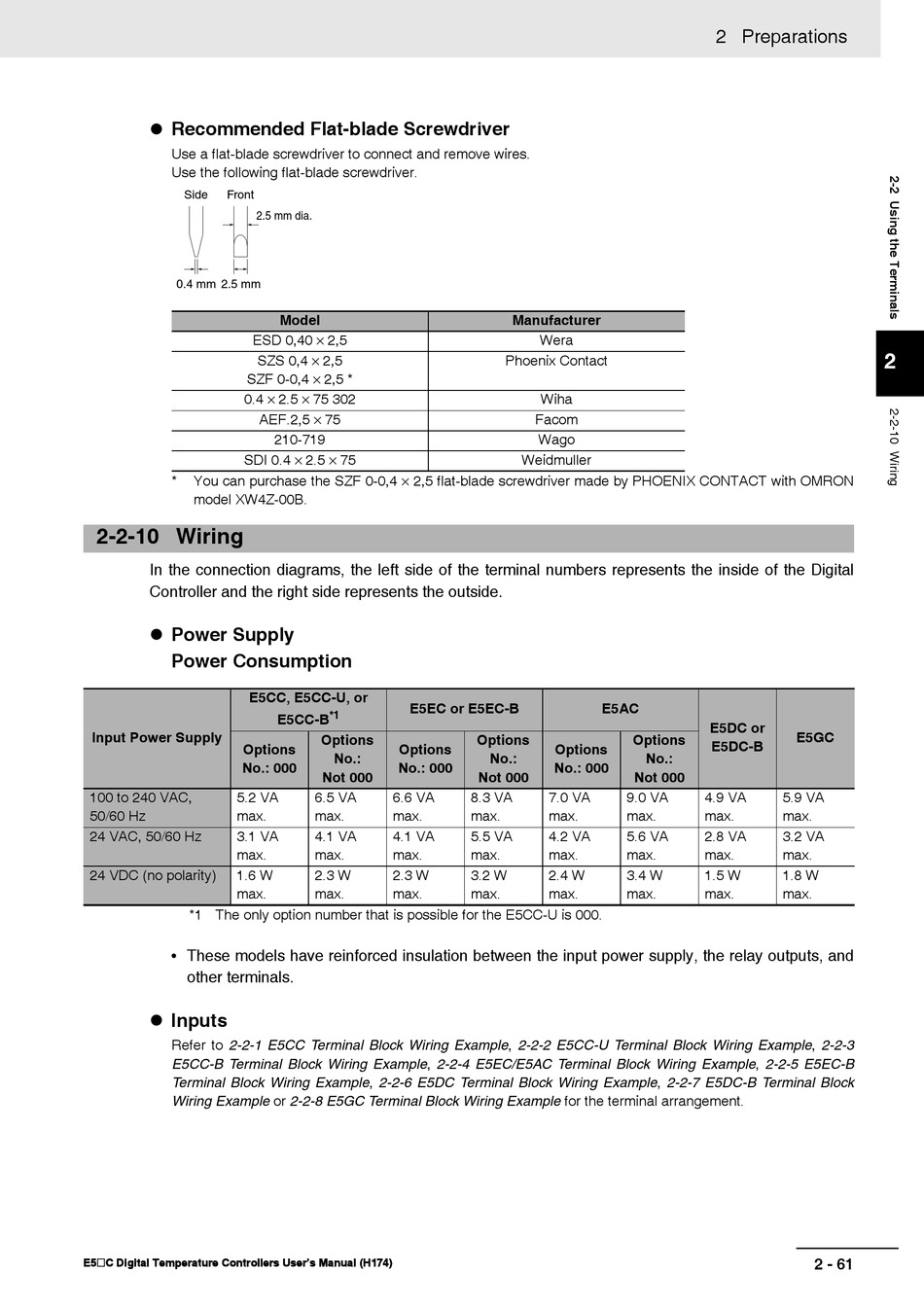

 Recommended Flat-blade Screwdriver
Use a flat-blade screwdriver to connect and remove wires.
Use the following flat-blade screwdriver.
Side Front
2.5 mm dia.
0.4 mm 2.5 mm
ESD 0,40 × 2,5
SZS 0,4 × 2,5
SZF 0-0,4 × 2,5 *
0.4 × 2.5 × 75 302
SDI 0.4 × 2.5 × 75
You can purchase the SZF 0-0,4 × 2,5 flat-blade screwdriver made by PHOENIX CONTACT with OMRON
*
model XW4Z-00B.

2-2-10 Wiring

In the connection diagrams, the left side of the terminal numbers represents the inside of the Digital
Controller and the right side represents the outside.
 Power Supply
Power Consumption
E5CC, E5CC-U, or
Input Power Supply
Options
No.: 000
100 to 240 VAC, 5.2 VA
50/60 Hz max.
24 VAC, 50/60 Hz 3.1 VA
max.
24 VDC (no polarity) 1.6 W
max.
*1 The only option number that is possible for the E5CC-U is 000.
• These models have reinforced insulation between the input power supply, the relay outputs, and
other terminals.
 Inputs
Refer to 2-2-1 E5CC Terminal Block Wiring Example, 2-2-2 E5CC-U Terminal Block Wiring Example, 2-2-3
E5CC-B Terminal Block Wiring Example, 2-2-4 E5EC/E5AC Terminal Block Wiring Example, 2-2-5 E5EC-B
Terminal Block Wiring Example, 2-2-6 E5DC Terminal Block Wiring Example, 2-2-7 E5DC-B Terminal Block
Wiring Example or 2-2-8 E5GC Terminal Block Wiring Example for the terminal arrangement.
E5@C Digital Temperature Controllers User's Manual (H174)
Model
AEF.2,5 × 75
210-719
E5EC or E5EC-B
*1
E5CC-B
Options
Options
No.:
No.: 000
Not 000
6.5 VA 6.6 VA
max. max.
4.1 VA 4.1 VA
max. max.
2.3 W 2.3 W
max. max.
Manufacturer
Wera
Phoenix Contact
Wiha
Facom
Wago
Weidmuller
E5AC
Options Options
Options
No.:
No.: 000
Not 000 Not 000
8.3 VA 7.0 VA 9.0 VA
max. max. max.
5.5 VA 4.2 VA 5.6 VA
max. max. max.
3.2 W 2.4 W 3.4 W
max. max. max.
2 Preparations
E5DC or
E5GC
E5DC-B
No.:
4.9 VA 5.9 VA
max. max.
2.8 VA 3.2 VA
max. max.
1.5 W 1.8 W
max. max.
2 - 61
