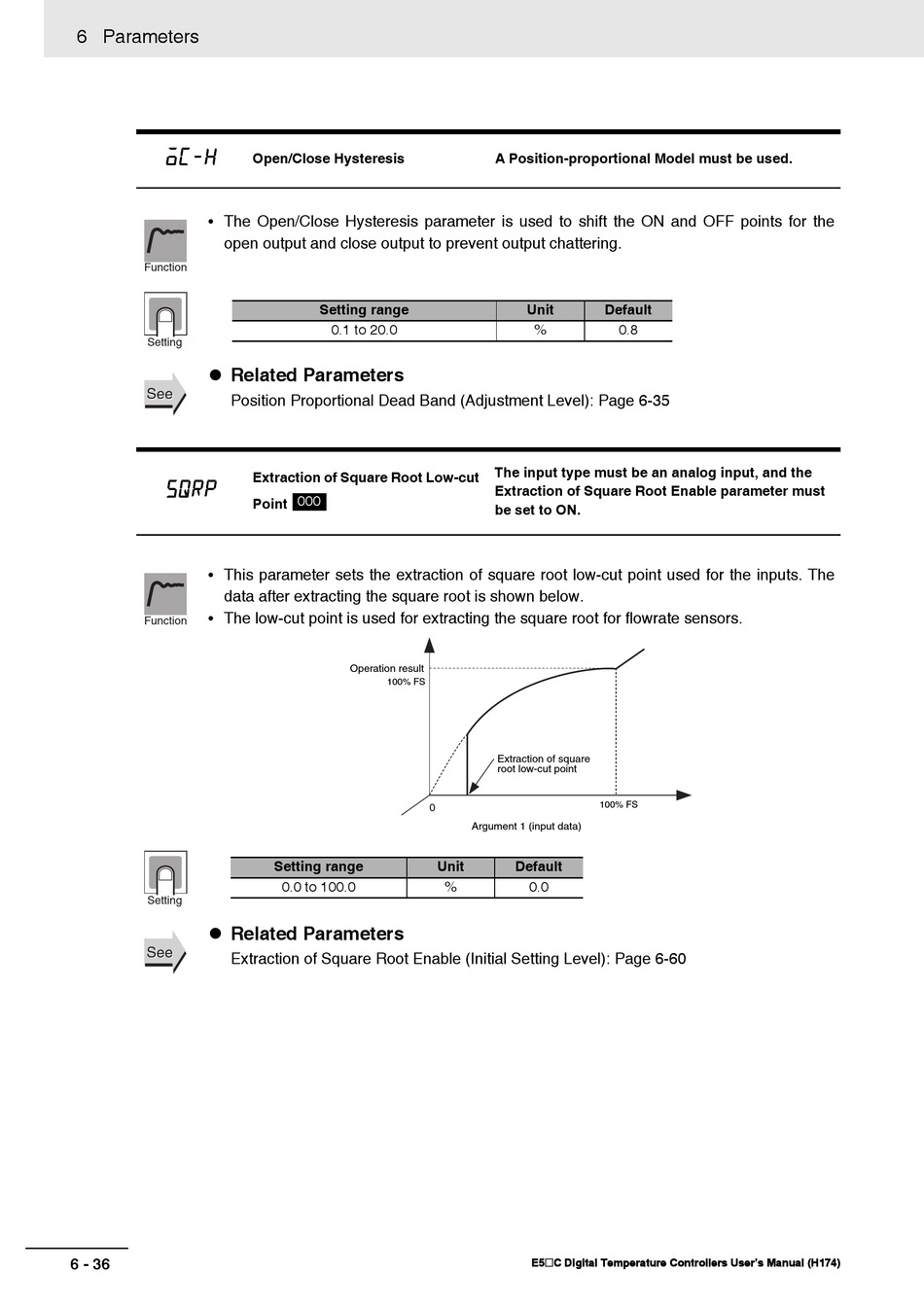

Omron E5*C Series User Manual page 306

6 Parameters
oc-h
• The Open/Close Hysteresis parameter is used to shift the ON and OFF points for the
open output and close output to prevent output chattering.
Function
Setting
 Related Parameters
See
See
Position Proportional Dead Band (Adjustment Level): Page 6-35
sqrp
• This parameter sets the extraction of square root low-cut point used for the inputs. The
data after extracting the square root is shown below.
• The low-cut point is used for extracting the square root for flowrate sensors.
Function
Setting
 Related Parameters
See
See
Extraction of Square Root Enable (Initial Setting Level): Page 6-60
6 - 36
Open/Close Hysteresis
Setting range
0.1 to 20.0
Extraction of Square Root Low-cut
000
Point
Operation result
100% FS
Setting range
0.0 to 100.0
A Position-proportional Model must be used.
Unit
%
The input type must be an analog input, and the
Extraction of Square Root Enable parameter must
be set to ON.
Extraction of square
root low-cut point
100% FS
0
Argument 1 (input data)
Unit Default
% 0.0
E5@C Digital Temperature Controllers User's Manual (H174)
Default
0.8
