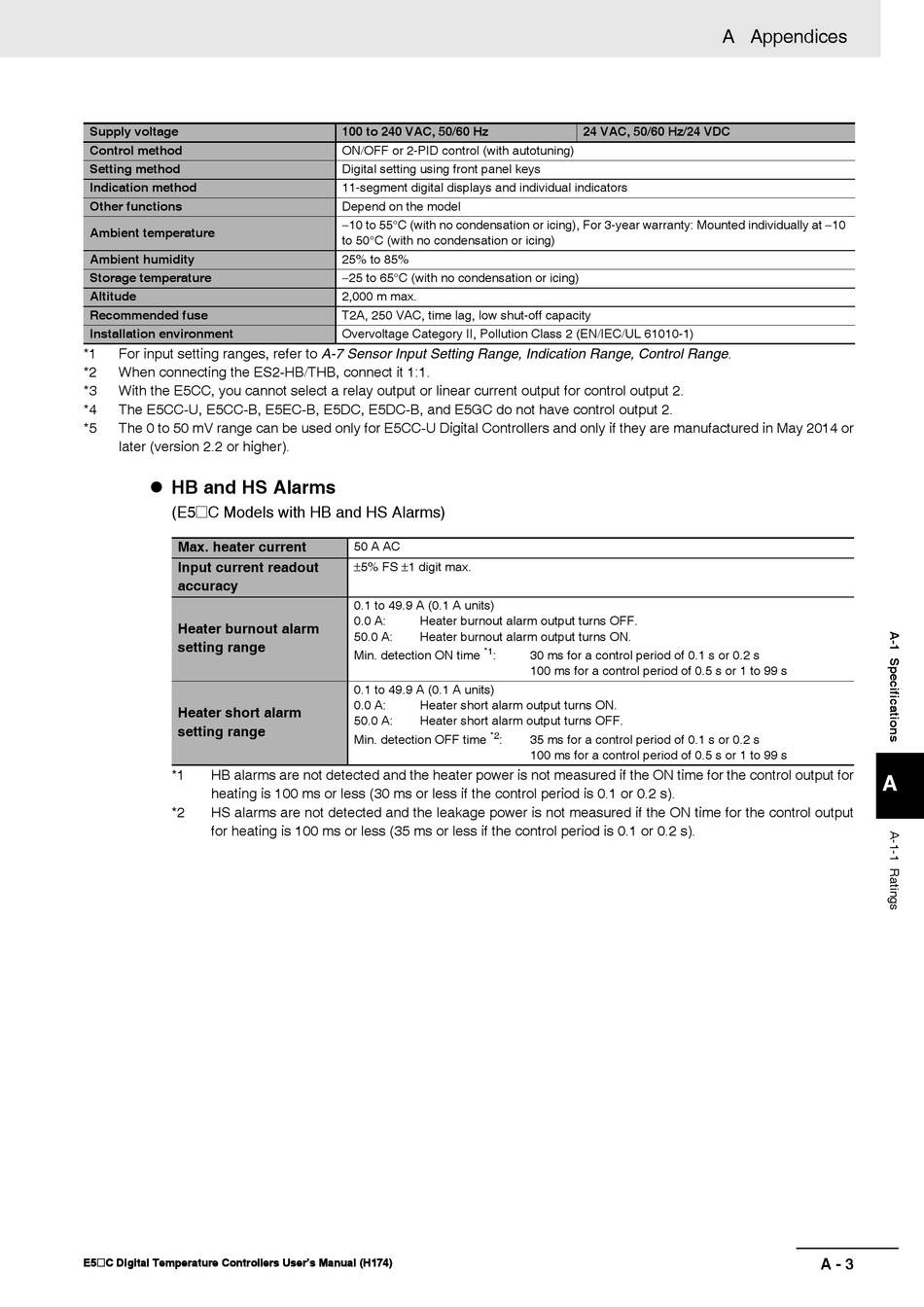

Omron E5*C Series User Manual page 389

Supply voltage
Control method
Setting method
Indication method
Other functions
Ambient temperature
Ambient humidity
Storage temperature
Altitude
Recommended fuse
Installation environment
*1 For input setting ranges, refer to A-7 Sensor Input Setting Range, Indication Range, Control Range.
*2 When connecting the ES2-HB/THB, connect it 1:1.
*3 With the E5CC, you cannot select a relay output or linear current output for control output 2.
*4 The E5CC-U, E5CC-B, E5EC-B, E5DC, E5DC-B, and E5GC do not have control output 2.
*5 The 0 to 50 mV range can be used only for E5CC-U Digital Controllers and only if they are manufactured in May 2014 or
later (version 2.2 or higher).
 HB and HS Alarms
(E5@C Models with HB and HS Alarms)
Max. heater current
Input current readout
accuracy
Heater burnout alarm
setting range
Heater short alarm
setting range
*1 HB alarms are not detected and the heater power is not measured if the ON time for the control output for
heating is 100 ms or less (30 ms or less if the control period is 0.1 or 0.2 s).
*2 HS alarms are not detected and the leakage power is not measured if the ON time for the control output
for heating is 100 ms or less (35 ms or less if the control period is 0.1 or 0.2 s).
E5@C Digital Temperature Controllers User's Manual (H174)
100 to 240 VAC, 50/60 Hz
ON/OFF or 2-PID control (with autotuning)
Digital setting using front panel keys
11-segment digital displays and individual indicators
Depend on the model
−10 to 55°C (with no condensation or icing), For 3-year warranty: Mounted individually at −10
to 50°C (with no condensation or icing)
25% to 85%
−25 to 65°C (with no condensation or icing)
2,000 m max.
T2A, 250 VAC, time lag, low shut-off capacity
Overvoltage Category II, Pollution Class 2 (EN/IEC/UL 61010-1)
50 A AC
±5% FS ±1 digit max.
0.1 to 49.9 A (0.1 A units)
0.0 A: Heater burnout alarm output turns OFF.
50.0 A: Heater burnout alarm output turns ON.
*1
Min. detection ON time :
0.1 to 49.9 A (0.1 A units)
0.0 A: Heater short alarm output turns ON.
50.0 A: Heater short alarm output turns OFF.
*2
Min. detection OFF time :
24 VAC, 50/60 Hz/24 VDC
30 ms for a control period of 0.1 s or 0.2 s
100 ms for a control period of 0.5 s or 1 to 99 s
35 ms for a control period of 0.1 s or 0.2 s
100 ms for a control period of 0.5 s or 1 to 99 s
A Appendices
A
A - 3
