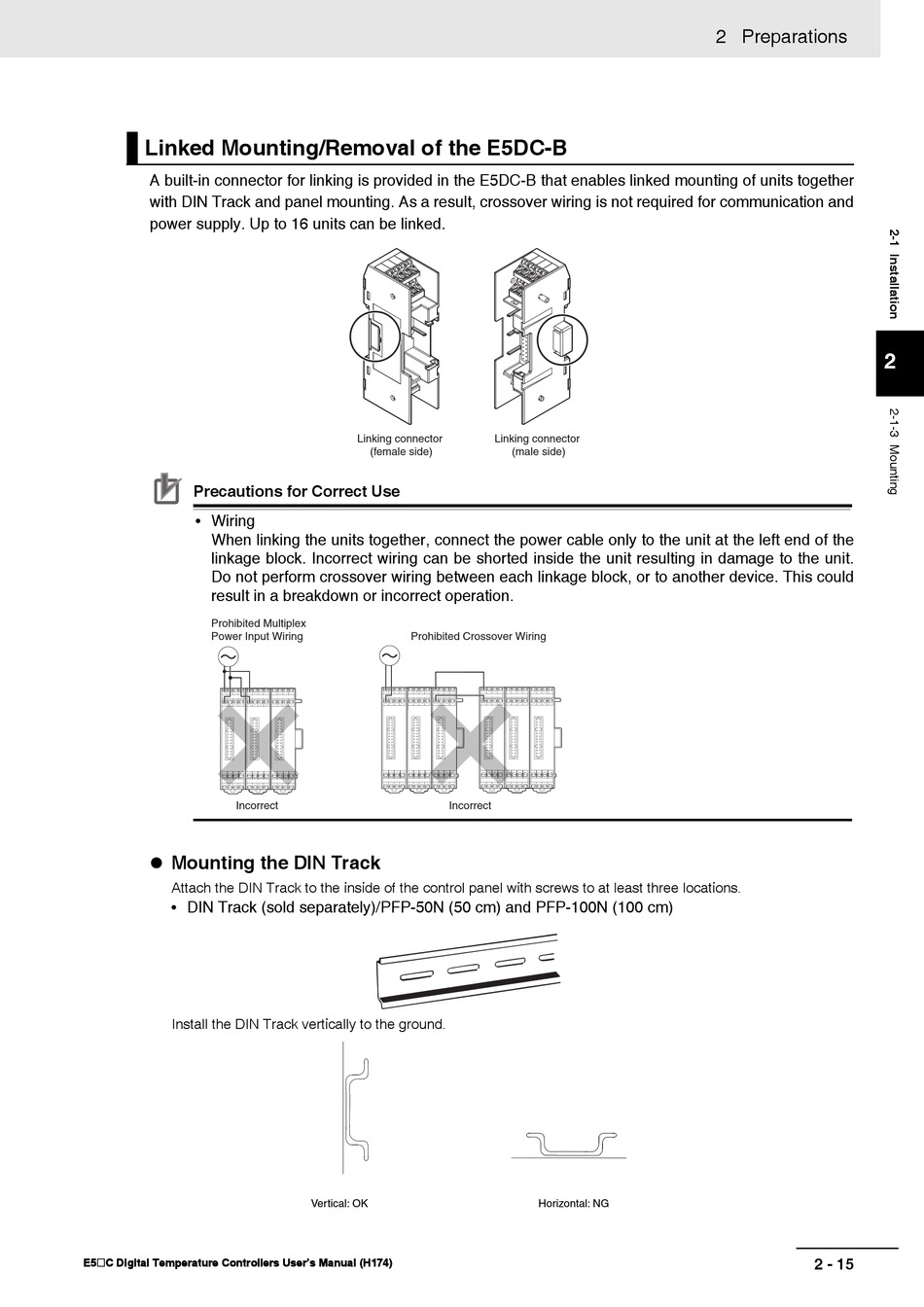

Linked Mounting/Removal of the E5DC-B
A built-in connector for linking is provided in the E5DC-B that enables linked mounting of units together
with DIN Track and panel mounting. As a result, crossover wiring is not required for communication and
power supply. Up to 16 units can be linked.
Precautions for Correct Use
• Wiring
When linking the units together, connect the power cable only to the unit at the left end of the
linkage block. Incorrect wiring can be shorted inside the unit resulting in damage to the unit.
Do not perform crossover wiring between each linkage block, or to another device. This could
result in a breakdown or incorrect operation.
Prohibited Multiplex
Power Input Wiring
Incorrect
 Mounting the DIN Track
Attach the DIN Track to the inside of the control panel with screws to at least three locations.
• DIN Track (sold separately)/PFP-50N (50 cm) and PFP-100N (100 cm)
Install the DIN Track vertically to the ground.
E5@C Digital Temperature Controllers User's Manual (H174)
Linking connector
(female side)
Prohibited Crossover Wiring
Incorrect
Vertical: OK
Linking connector
(male side)
Horizontal: NG
