Omron E5*C Series User Manual page 52

2 Preparations

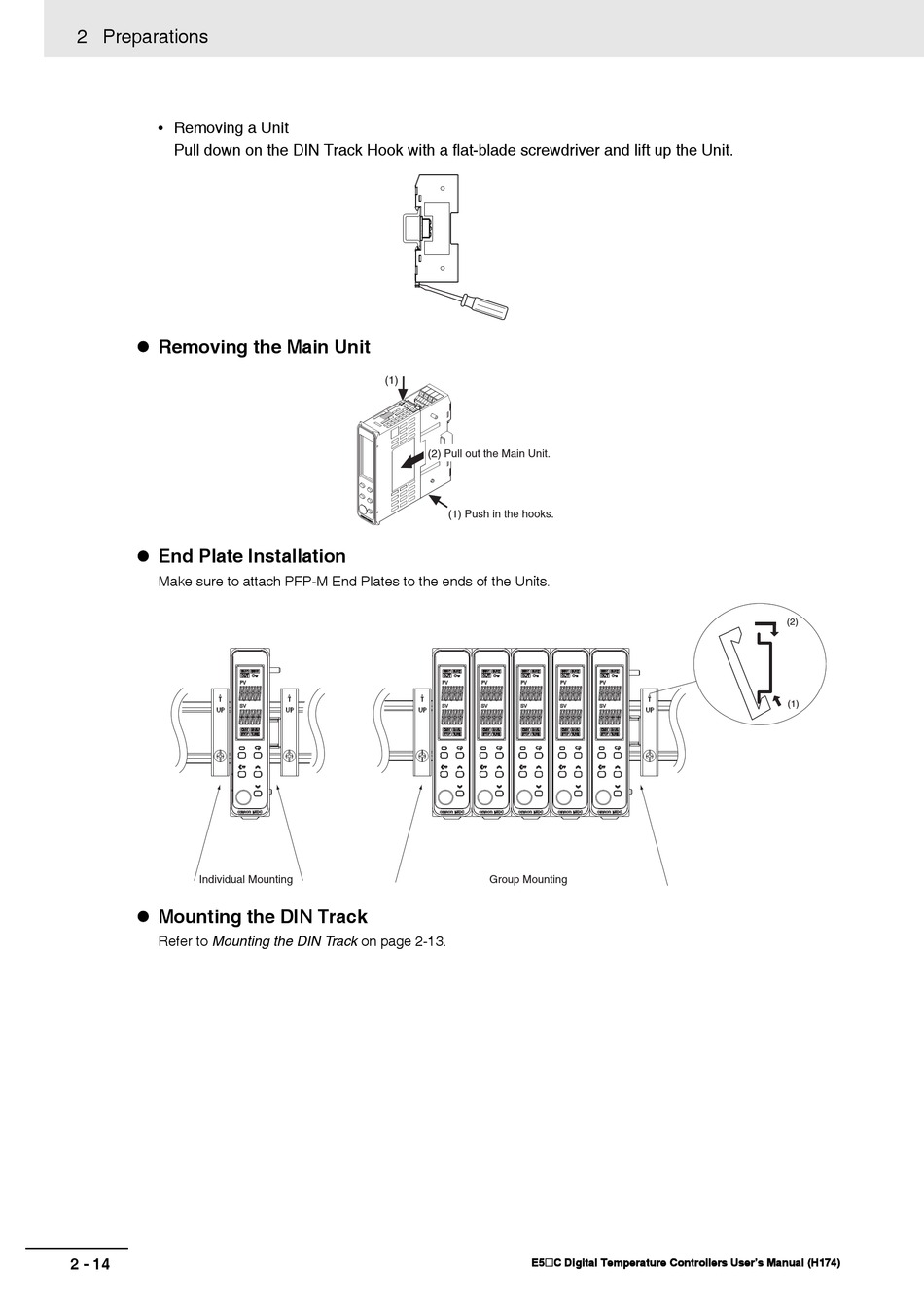

• Removing a Unit
Pull down on the DIN Track Hook with a flat-blade screwdriver and lift up the Unit.
 Removing the Main Unit
 End Plate Installation
Make sure to attach PFP-M End Plates to the ends of the Units.
Individual Mounting
 Mounting the DIN Track
Refer to Mounting the DIN Track on page 2-13.
2 - 14
(1)
(2) Pull out the Main Unit.
(1) Push in the hooks.
Group Mounting
E5@C Digital Temperature Controllers User's Manual (H174)
(2)
(1)
