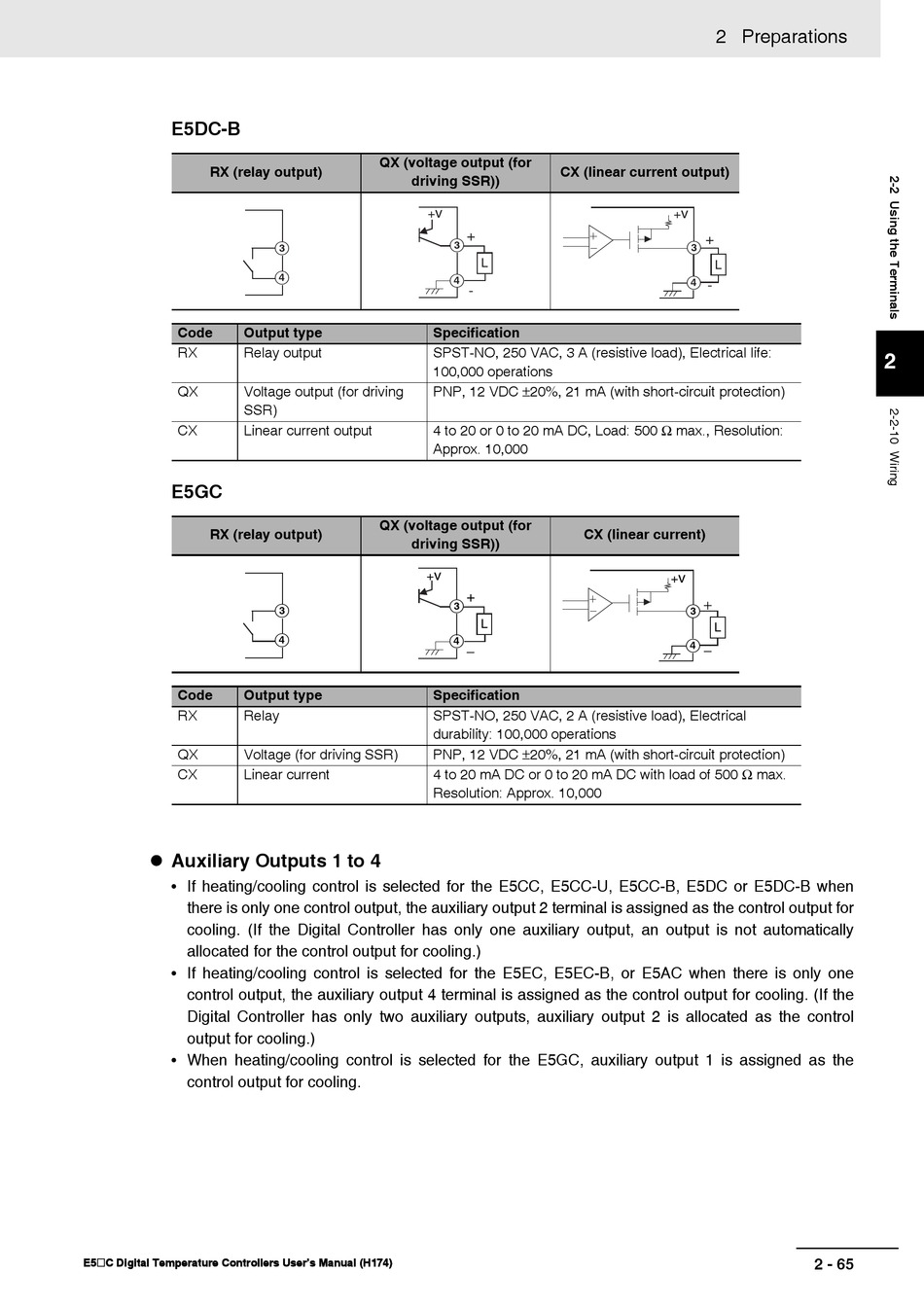

Omron E5*C Series User Manual page 103

E5DC-B
RX (relay output)
Code Output type
RX Relay output
QX Voltage output (for driving
SSR)
CX Linear current output
E5GC
RX (relay output)
Code Output type
RX Relay
QX Voltage (for driving SSR)
CX Linear current
 Auxiliary Outputs 1 to 4
• If heating/cooling control is selected for the E5CC, E5CC-U, E5CC-B, E5DC or E5DC-B when
there is only one control output, the auxiliary output 2 terminal is assigned as the control output for
cooling. (If the Digital Controller has only one auxiliary output, an output is not automatically
allocated for the control output for cooling.)
• If heating/cooling control is selected for the E5EC, E5EC-B, or E5AC when there is only one
control output, the auxiliary output 4 terminal is assigned as the control output for cooling. (If the
Digital Controller has only two auxiliary outputs, auxiliary output 2 is allocated as the control
output for cooling.)
• When heating/cooling control is selected for the E5GC, auxiliary output 1 is assigned as the
control output for cooling.
E5@C Digital Temperature Controllers User's Manual (H174)
QX (voltage output (for
driving SSR))
v
+
C
D
Specification
SPST-NO, 250 VAC, 3 A (resistive load), Electrical life:
100,000 operations
PNP, 12 VDC ±20%, 21 mA (with short-circuit protection)
4 to 20 or 0 to 20 mA DC, Load: 500 Ω max., Resolution:
Approx. 10,000
QX (voltage output (for
driving SSR))
v
+
C
D
Specification
SPST-NO, 250 VAC, 2 A (resistive load), Electrical
durability: 100,000 operations
PNP, 12 VDC ±20%, 21 mA (with short-circuit protection)
4 to 20 mA DC or 0 to 20 mA DC with load of 500 Ω max.
Resolution: Approx. 10,000
CX (linear current output)
+
C
L
D
-
CX (linear current)
+
C
L
D
−
