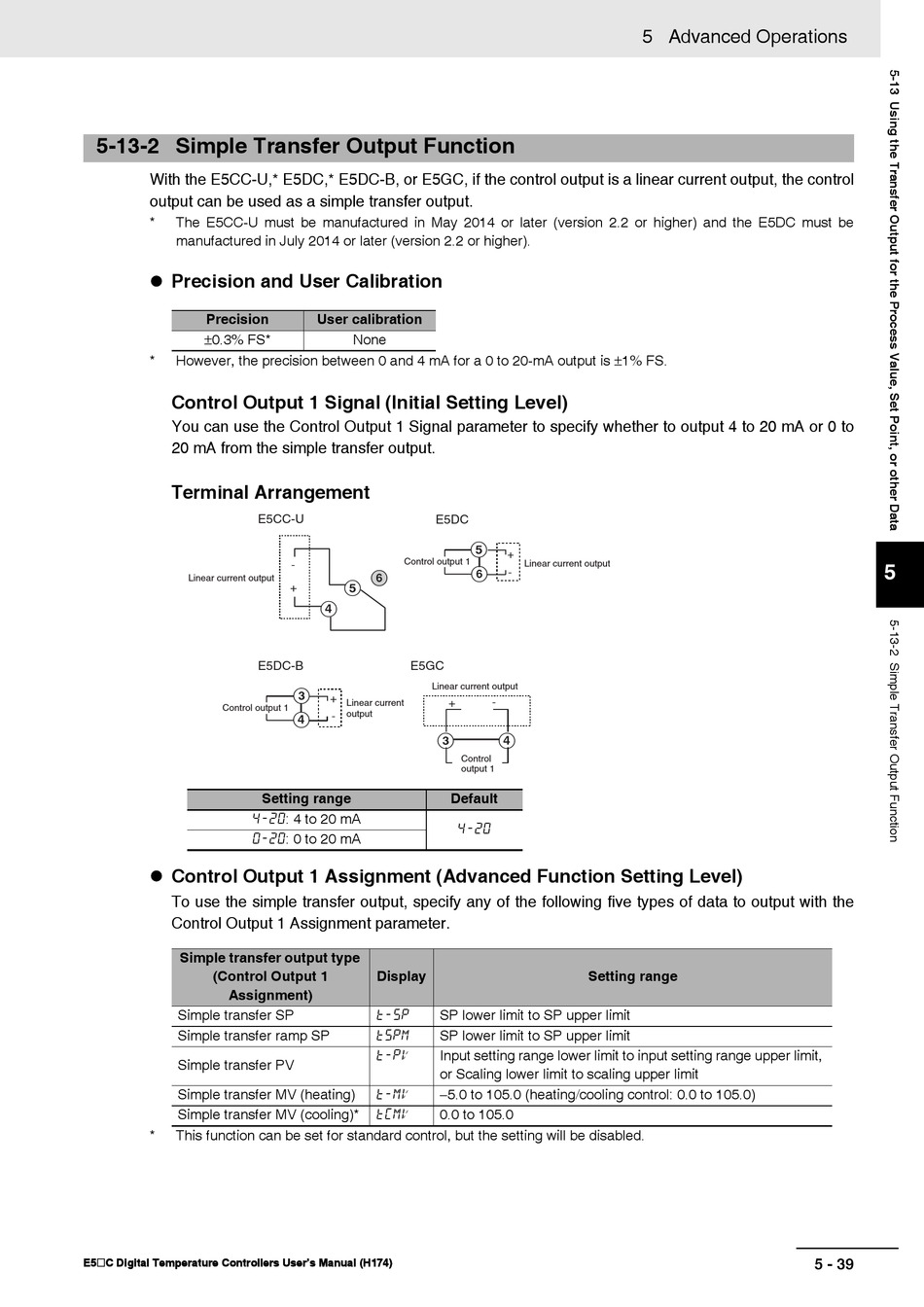

5-13-2 Simple Transfer Output Function
With the E5CC-U,* E5DC,* E5DC-B, or E5GC, if the control output is a linear current output, the control
output can be used as a simple transfer output.
*
The E5CC-U must be manufactured in May 2014 or later (version 2.2 or higher) and the E5DC must be
manufactured in July 2014 or later (version 2.2 or higher).
Precision and User Calibration
Precision
±0.3% FS*
*
However, the precision between 0 and 4 mA for a 0 to 20-mA output is ±1% FS.
Control Output 1 Signal (Initial Setting Level)
You can use the Control Output 1 Signal parameter to specify whether to output 4 to 20 mA or 0 to
20 mA from the simple transfer output.
Terminal Arrangement
Linear current output
Control output 1
4-20: 4 to 20 mA
0-20: 0 to 20 mA
Control Output 1 Assignment (Advanced Function Setting Level)
To use the simple transfer output, specify any of the following five types of data to output with the
Control Output 1 Assignment parameter.
Simple transfer output type
(Control Output 1
Assignment)
Simple transfer SP
Simple transfer ramp SP
Simple transfer PV
Simple transfer MV (heating)
Simple transfer MV (cooling)*
*
This function can be set for standard control, but the setting will be disabled.
E5@C Digital Temperature Controllers User's Manual (H174)
User calibration
None
E5CC-U
-
Control output 1
F
E
+
D
E5DC-B
E5GC
Linear current output
C
+
Linear current
D
-
output
Setting range
Display
t-sp
tspm
t-pV
t-mV
tcmV
E5DC
E
+
Linear current output
F
-
-
+
C
D
Control
output 1
Default
4-20
Setting range
SP lower limit to SP upper limit
SP lower limit to SP upper limit
Input setting range lower limit to input setting range upper limit,
or Scaling lower limit to scaling upper limit
−5.0 to 105.0 (heating/cooling control: 0.0 to 105.0)
0.0 to 105.0
5 Advanced Operations
5 - 39
5
