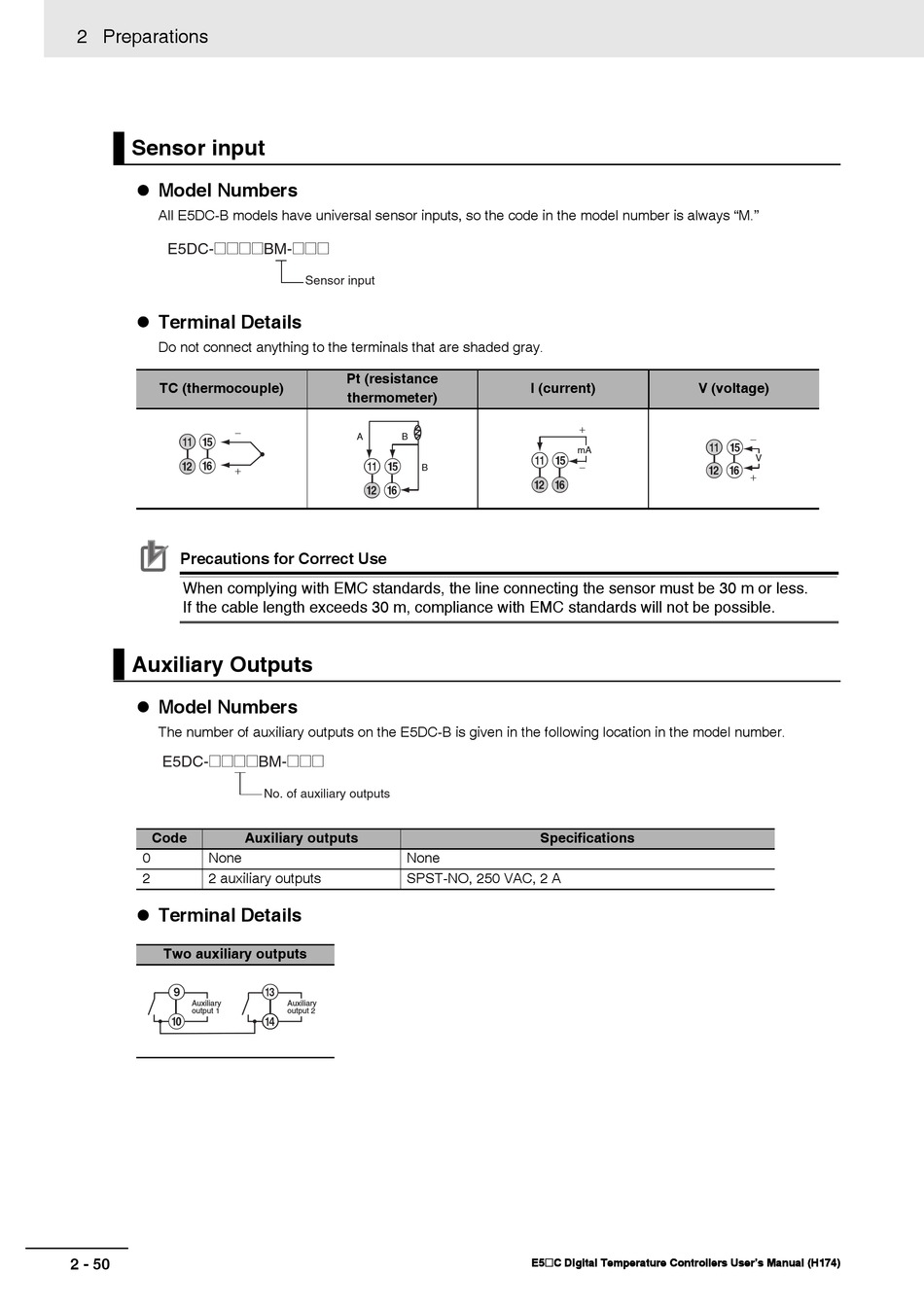

2 Preparations
Sensor input
 Model Numbers
All E5DC-B models have universal sensor inputs, so the code in the model number is always "M."
E5DC-@@@@BM-@@@
 Terminal Details
Do not connect anything to the terminals that are shaded gray.
TC (thermocouple)
−
K O
L P
+
Precautions for Correct Use
When complying with EMC standards, the line connecting the sensor must be 30 m or less.
If the cable length exceeds 30 m, compliance with EMC standards will not be possible.
Auxiliary Outputs
 Model Numbers
The number of auxiliary outputs on the E5DC-B is given in the following location in the model number.
E5DC-@@@@BM-@@@
Code Auxiliary outputs
0 None
2 2 auxiliary outputs
 Terminal Details
Two auxiliary outputs
I
Auxiliary
output 1
J
2 - 50
Sensor input
Pt (resistance
thermometer)
A B
K O
B
L P
No. of auxiliary outputs
None
SPST-NO, 250 VAC, 2 A
M
Auxiliary
output 2
N
I (current) V (voltage)
+
mA
K O
−
L P
Specifications
E5@C Digital Temperature Controllers User's Manual (H174)
−
