Omron E5*C Series User Manual page 57

6

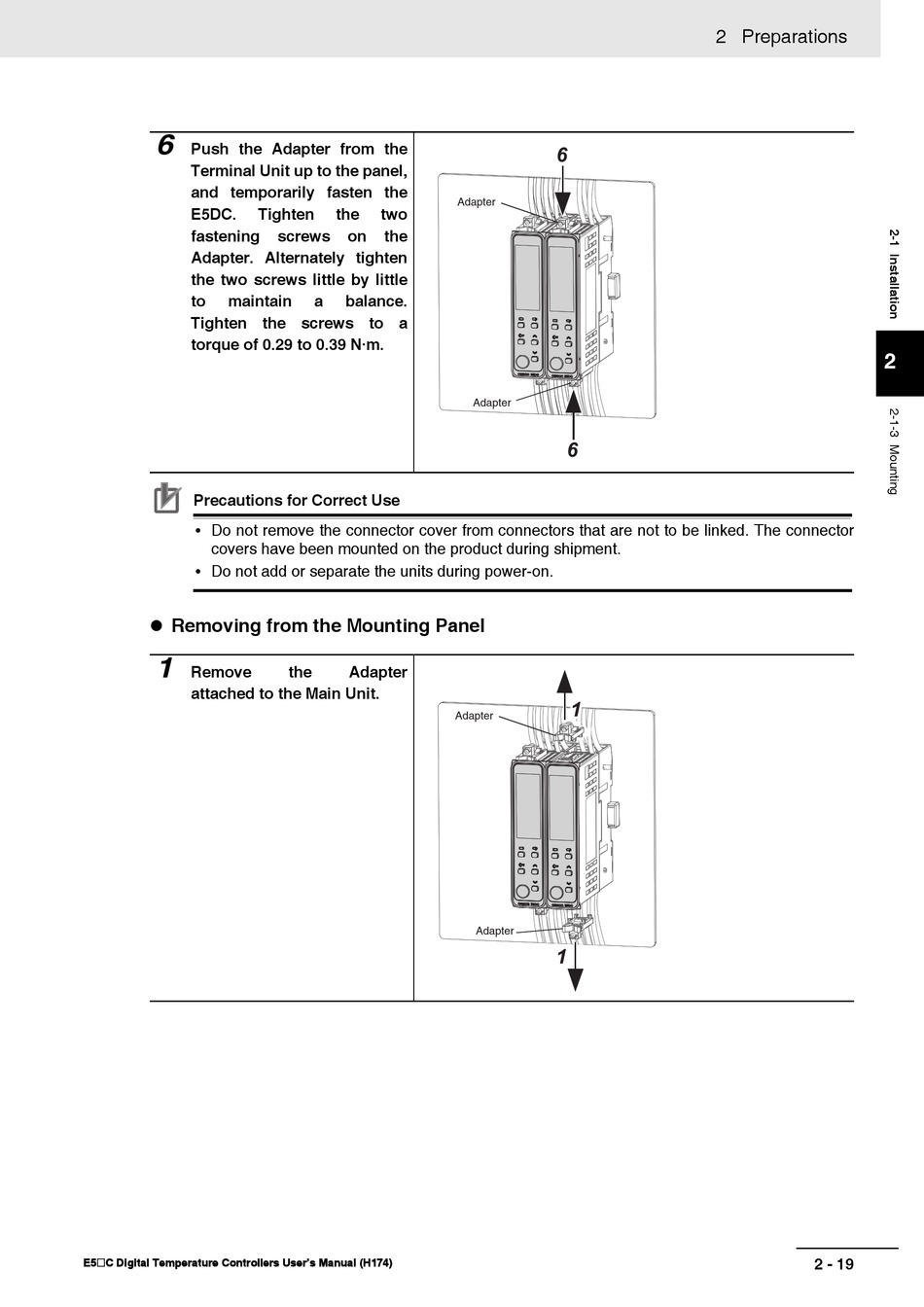

Push the Adapter from the
Terminal Unit up to the panel,
and temporarily fasten the
E5DC.
fastening
Adapter. Alternately tighten
the two screws little by little
to maintain
Tighten the screws to a
torque of 0.29 to 0.39 N·m.
Precautions for Correct Use
• Do not remove the connector cover from connectors that are not to be linked. The connector
covers have been mounted on the product during shipment.
• Do not add or separate the units during power-on.
 Removing from the Mounting Panel
1
Remove
attached to the Main Unit.
E5@C Digital Temperature Controllers User's Manual (H174)
Tighten the two
screws on the
a balance.
the Adapter
6
Adapter
Adapter
6
1
Adapter
Adapter
1
2 Preparations
2
2 - 19
