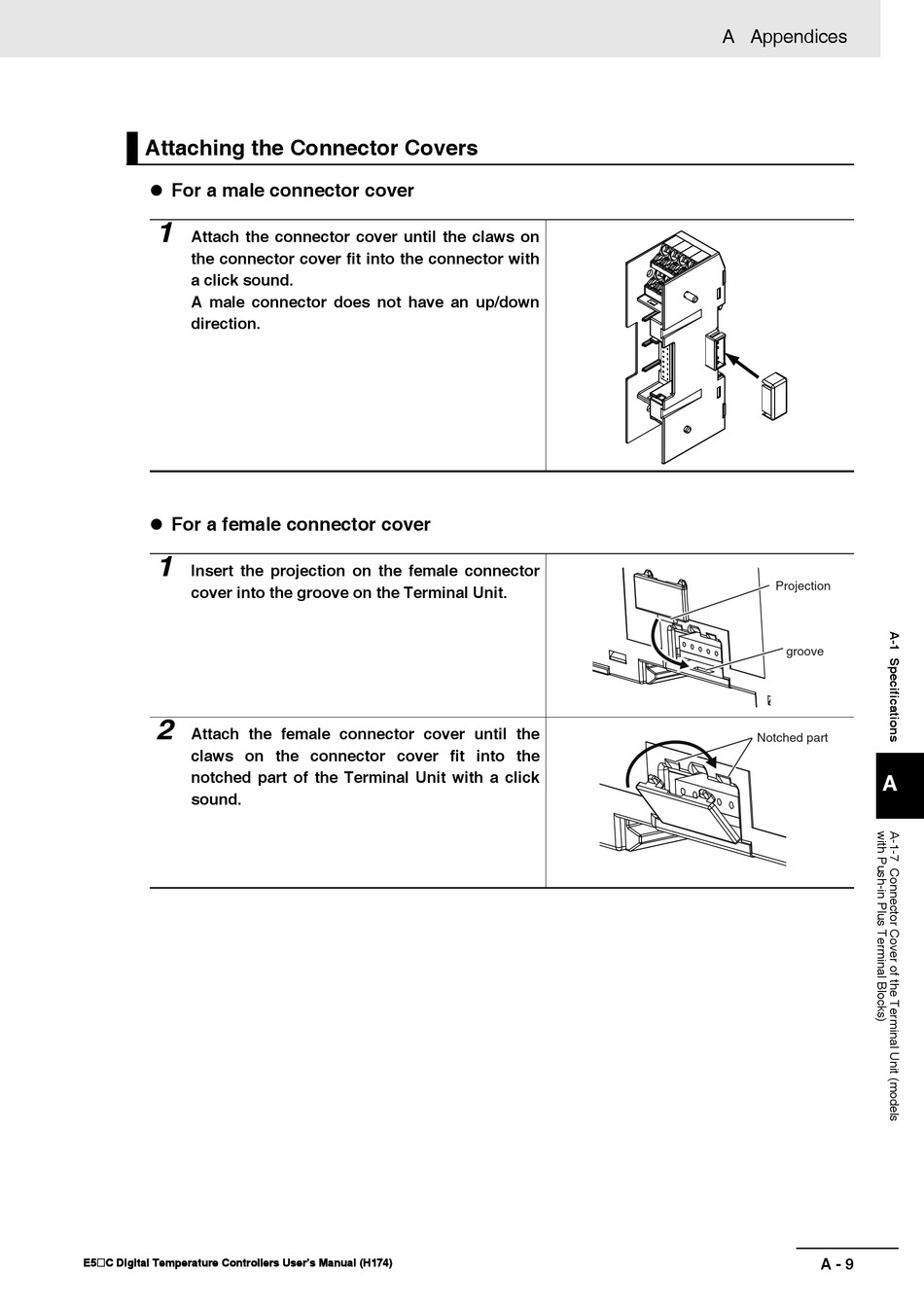

Attaching the Connector Covers
 For a male connector cover
1
Attach the connector cover until the claws on
the connector cover fit into the connector with
a click sound.
A male connector does not have an up/down
direction.
 For a female connector cover
1
Insert the projection on the female connector
cover into the groove on the Terminal Unit.
2
Attach the female connector cover until the
claws on the connector cover fit into the
notched part of the Terminal Unit with a click
sound.
