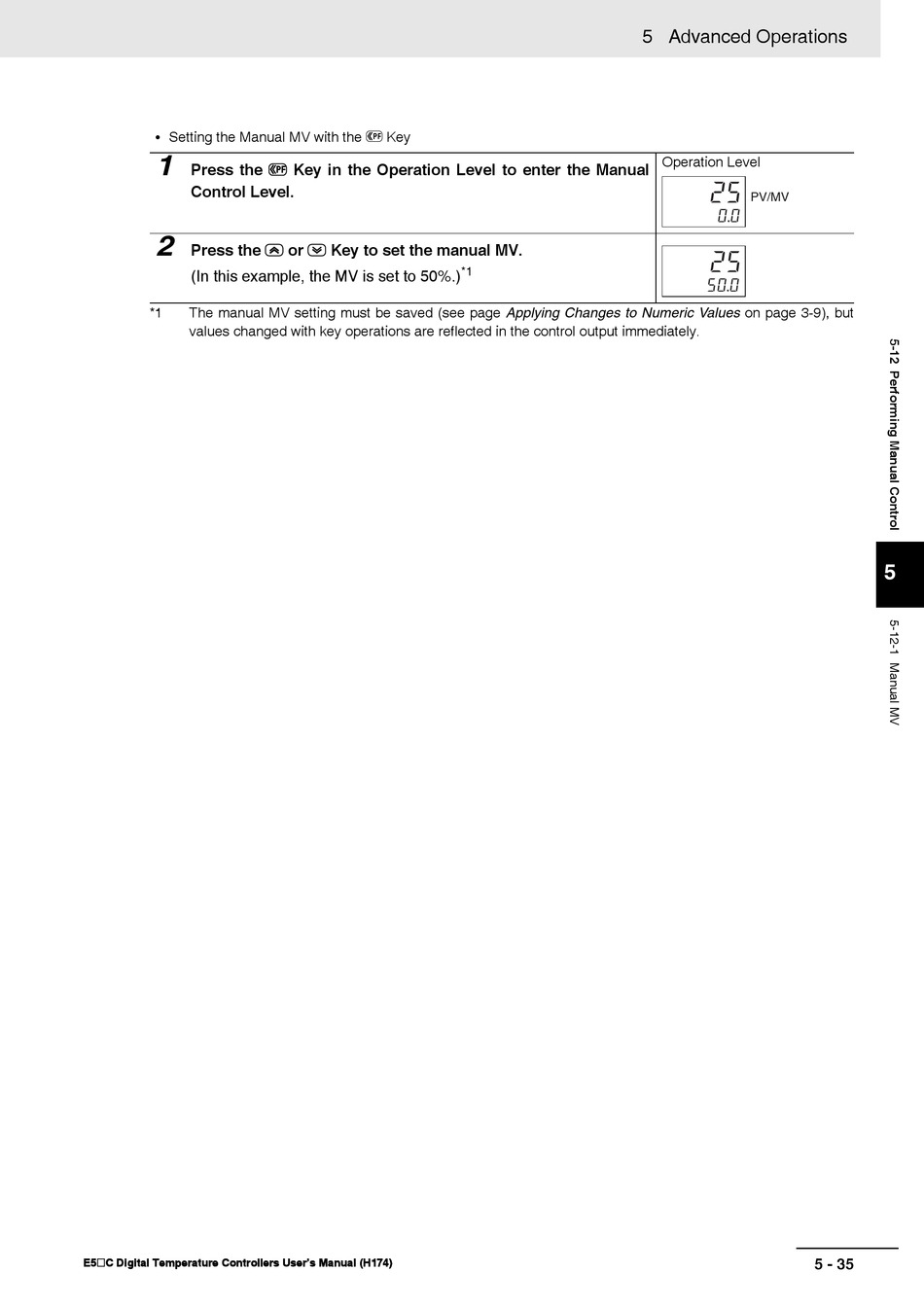

• Setting the Manual MV with the S Key
1
Press the S Key in the Operation Level to enter the Manual
Control Level.
2
Press the U or D Key to set the manual MV.
(In this example, the MV is set to 50%.)
*1 The manual MV setting must be saved (see page Applying Changes to Numeric Values on page 3-9), but
values changed with key operations are reflected in the control output immediately.
E5@C Digital Temperature Controllers User's Manual (H174)
*1
5 Advanced Operations
Operation Level
25
PV/MV
0.0
25
50.0
5 - 35
5
