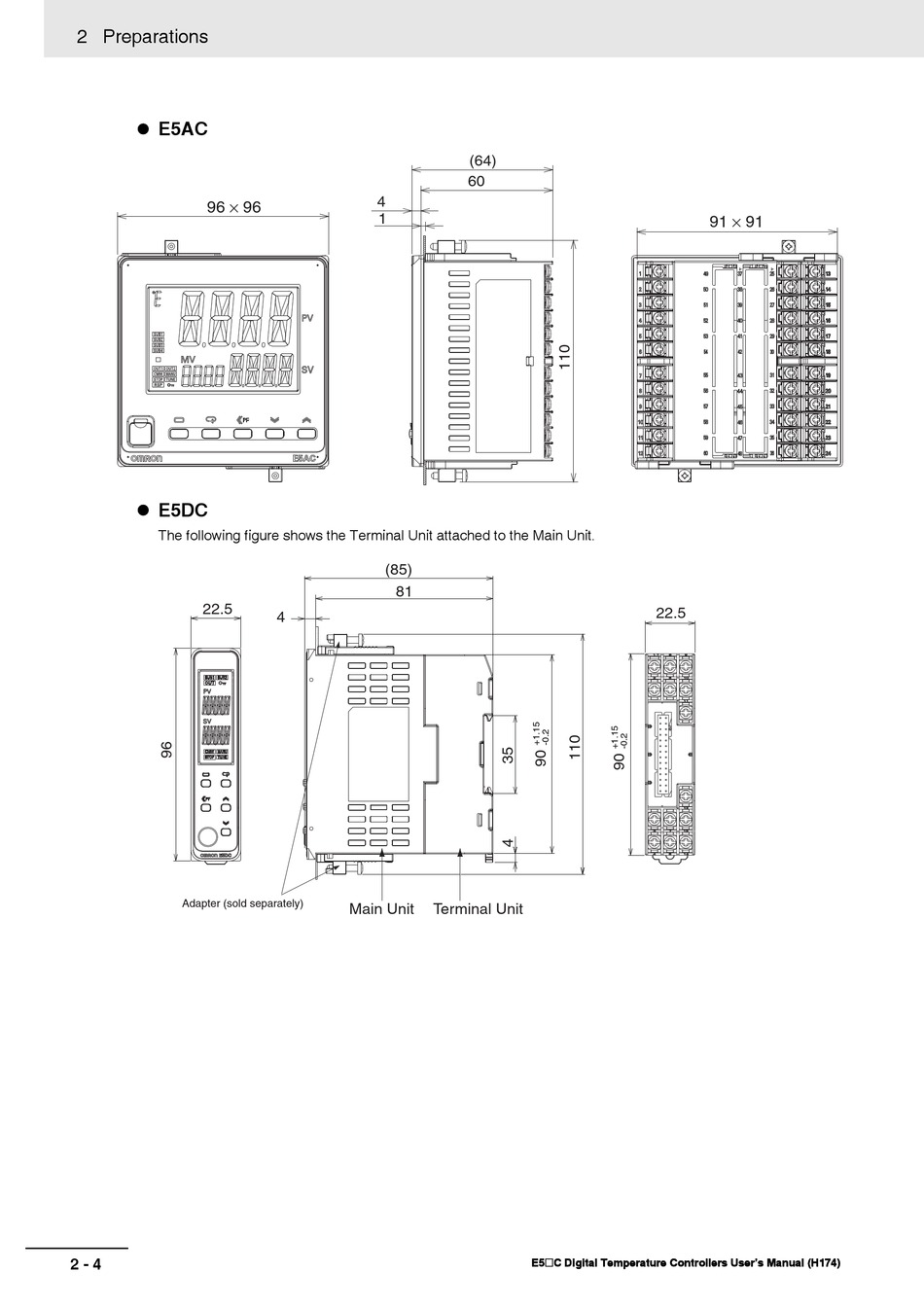

2 Preparations
 E5AC
(64)
60
4
96 × 96
91 × 91
1
 E5DC
The following figure shows the Terminal Unit attached to the Main Unit.
(85)
81
22.5
22.5
4
Adapter (sold separately)
Main Unit Terminal Unit
2 - 4 E5@C Digital Temperature Controllers User's Manual (H174)
