E5DC/E5DC-B

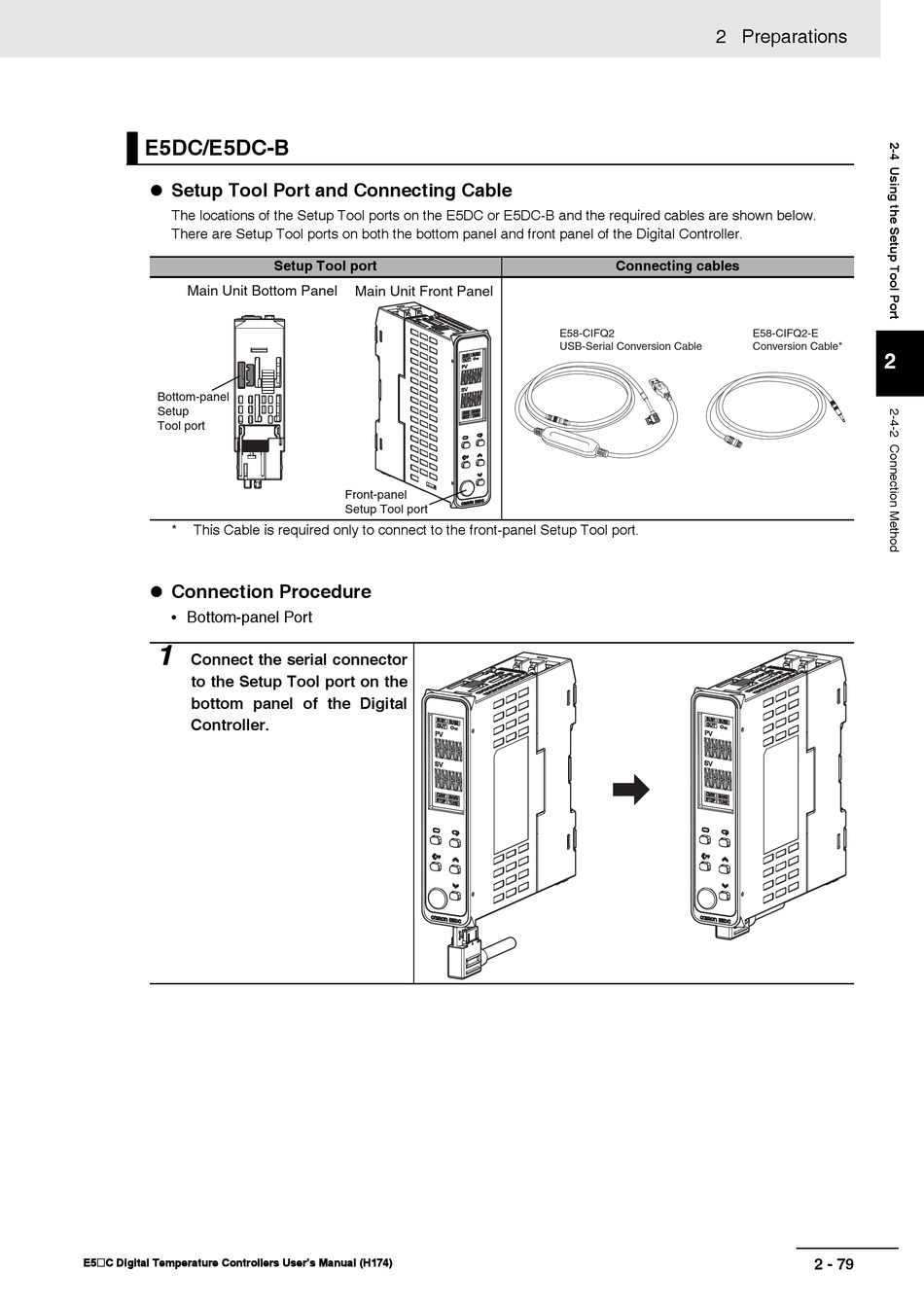

 Setup Tool Port and Connecting Cable
The locations of the Setup Tool ports on the E5DC or E5DC-B and the required cables are shown below.
There are Setup Tool ports on both the bottom panel and front panel of the Digital Controller.
Main Unit Bottom Panel
Bottom-panel
Setup
Tool port
* This Cable is required only to connect to the front-panel Setup Tool port.
 Connection Procedure
• Bottom-panel Port
1
Connect the serial connector
to the Setup Tool port on the
bottom panel of the Digital
Controller.
E5@C Digital Temperature Controllers User's Manual (H174)
Setup Tool port
Main Unit Front Panel
Front-panel
Setup Tool port
2 Preparations
Connecting cables
E58-CIFQ2
USB-Serial Conversion Cable
E58-CIFQ2-E
Conversion Cable*
2
2 - 79
