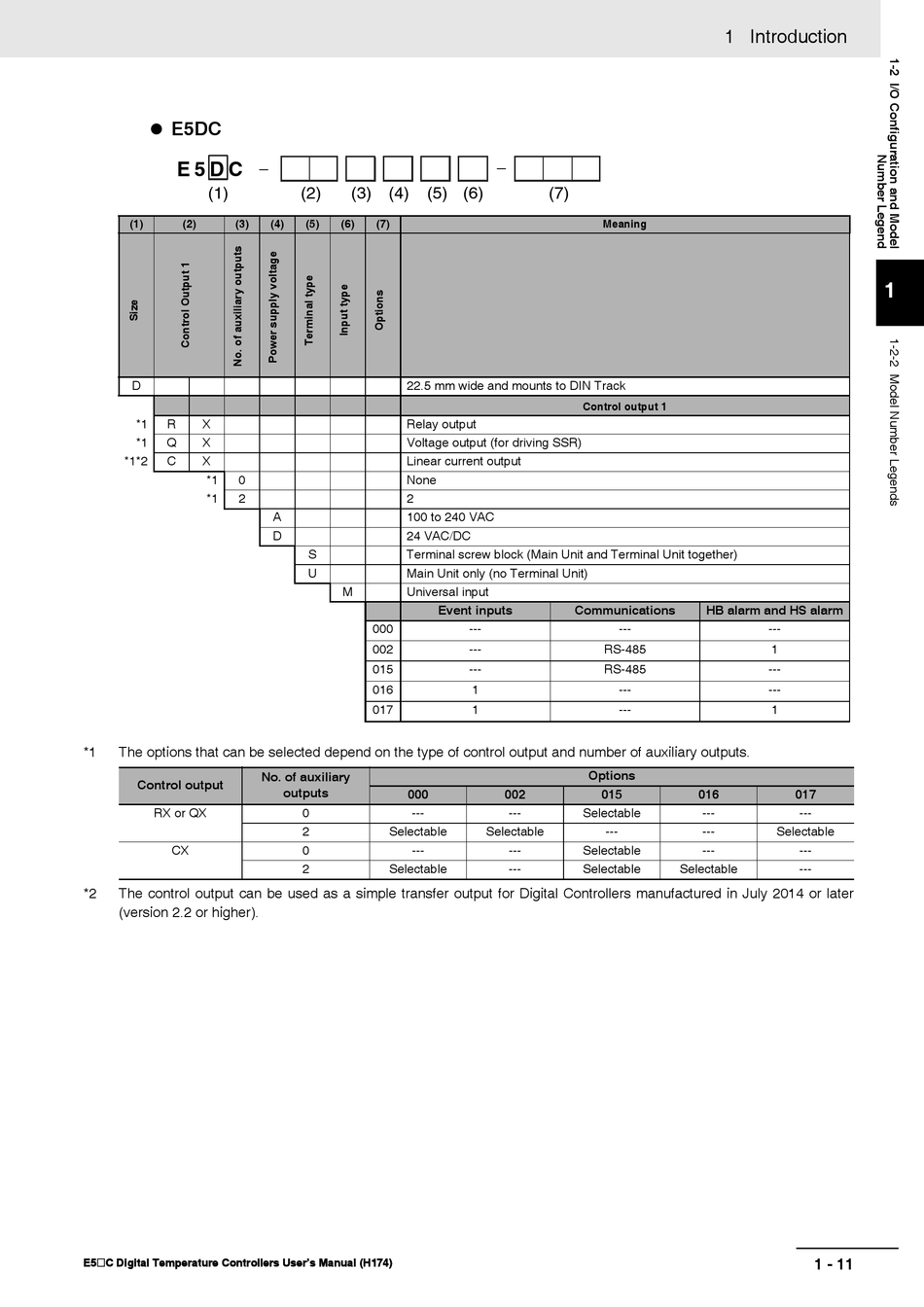

Omron E5*C Series User Manual page 35

 E5DC
E 5 D C
(1)
(1) (2) (3)
D
*1 R X
*1 Q X
*1*2 C X
*1 0
*1 2
*1 The options that can be selected depend on the type of control output and number of auxiliary outputs.
Control output
RX or QX
CX
*2 The control output can be used as a simple transfer output for Digital Controllers manufactured in July 2014 or later
(version 2.2 or higher).
E5@C Digital Temperature Controllers User's Manual (H174)
−
(2) (3) (4) (5) (6)
(4) (5) (6) (7)
22.5 mm wide and mounts to DIN Track
Relay output
Voltage output (for driving SSR)
Linear current output
None
2
A 100 to 240 VAC
D 24 VAC/DC
S Terminal screw block (Main Unit and Terminal Unit together)
U Main Unit only (no Terminal Unit)
M Universal input
000
002
015
016
017
No. of auxiliary
outputs
000
0 ---
2 Selectable
0 ---
2 Selectable
−
(7)
Meaning
Control output 1
Event inputs Communications
---
--- RS-485
--- RS-485
1
1
Options
002 015
--- Selectable
Selectable ---
--- Selectable
--- Selectable
1 Introduction
HB alarm and HS alarm
--- ---
1
---
--- ---
--- 1
016
---
--- Selectable
---
Selectable
1
017
---
---
---
1 - 11
