5 Advanced Operations

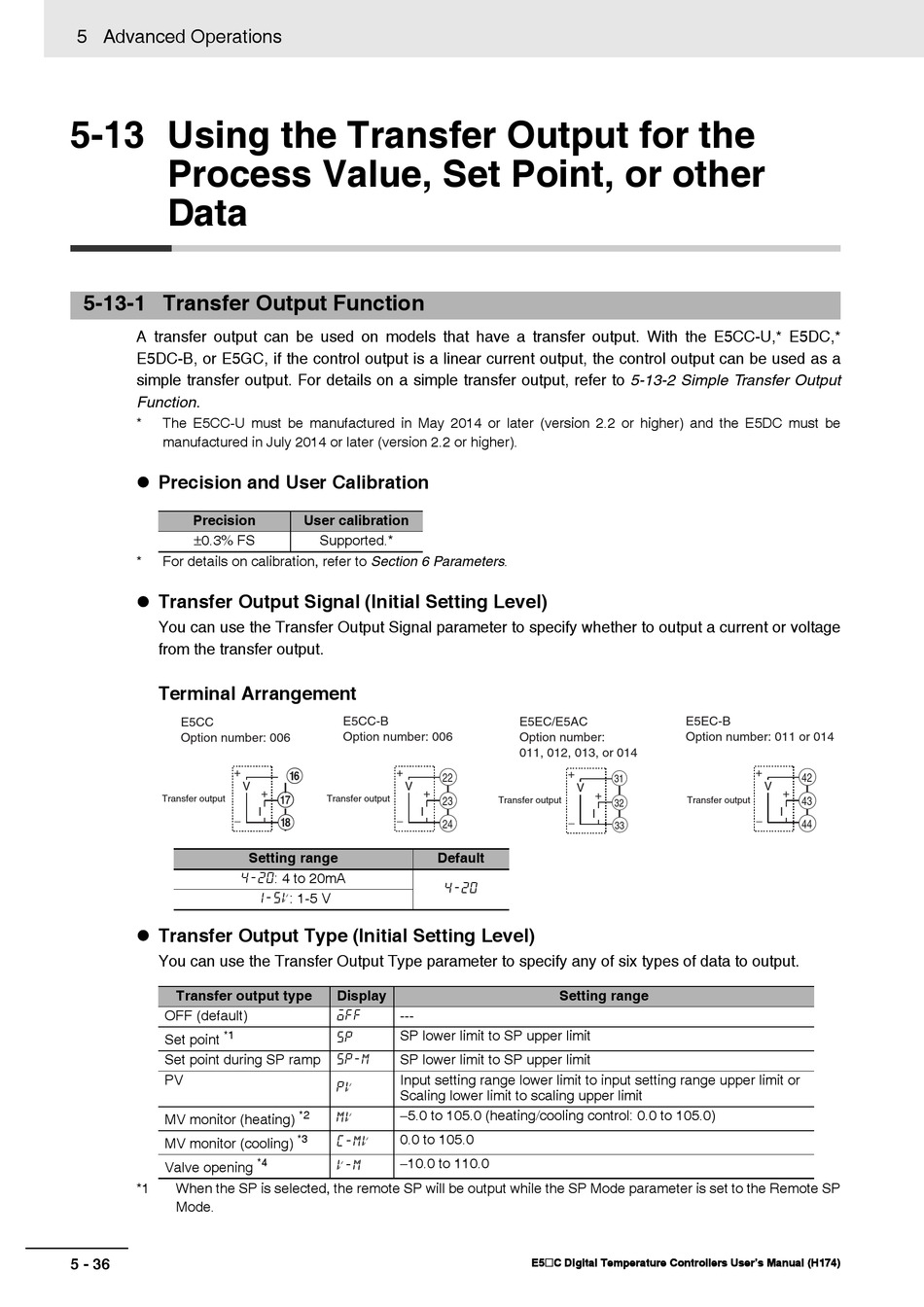

5-13 Using the Transfer Output for the
Process Value, Set Point, or other
Data

5-13-1 Transfer Output Function

A transfer output can be used on models that have a transfer output. With the E5CC-U,* E5DC,*
E5DC-B, or E5GC, if the control output is a linear current output, the control output can be used as a
simple transfer output. For details on a simple transfer output, refer to 5-13-2 Simple Transfer Output
Function.
* The E5CC-U must be manufactured in May 2014 or later (version 2.2 or higher) and the E5DC must be
manufactured in July 2014 or later (version 2.2 or higher).
 Precision and User Calibration
Precision
±0.3% FS
* For details on calibration, refer to Section 6 Parameters.
 Transfer Output Signal (Initial Setting Level)
You can use the Transfer Output Signal parameter to specify whether to output a current or voltage
from the transfer output.
Terminal Arrangement
E5CC
Option number: 006
+
V
Transfer output
−
4-20: 4 to 20mA
 Transfer Output Type (Initial Setting Level)
You can use the Transfer Output Type parameter to specify any of six types of data to output.
Transfer output type
OFF (default)
*1
Set point
Set point during SP ramp
PV
MV monitor (heating)
MV monitor (cooling)
Valve opening
*1 When the SP is selected, the remote SP will be output while the SP Mode parameter is set to the Remote SP
Mode.
5 - 36
User calibration
Supported.*
E5CC-B
Option number: 006
P
+
V
Q
+
Transfer output
I I
R
−
Setting range
1-5v: 1-5 V
Display
---
off
SP lower limit to SP upper limit
sp
SP lower limit to SP upper limit
sp-m
Input setting range lower limit to input setting range upper limit or
pV
Scaling lower limit to scaling upper limit
−5.0 to 105.0 (heating/cooling control: 0.0 to 105.0)
*2
mV
0.0 to 105.0
*3
c-mV
−10.0 to 110.0
*4
V-m
E5EC/E5AC
Option number:
011, 012, 013, or 014
+
22
V
+
+
23
Transfer output
I
−
24
Default
4-20
Setting range
E5@C Digital Temperature Controllers User's Manual (H174)
E5EC-B
Option number: 011 or 014
+
31
V
+
Transfer output
32
I
−
33
42
43
44
