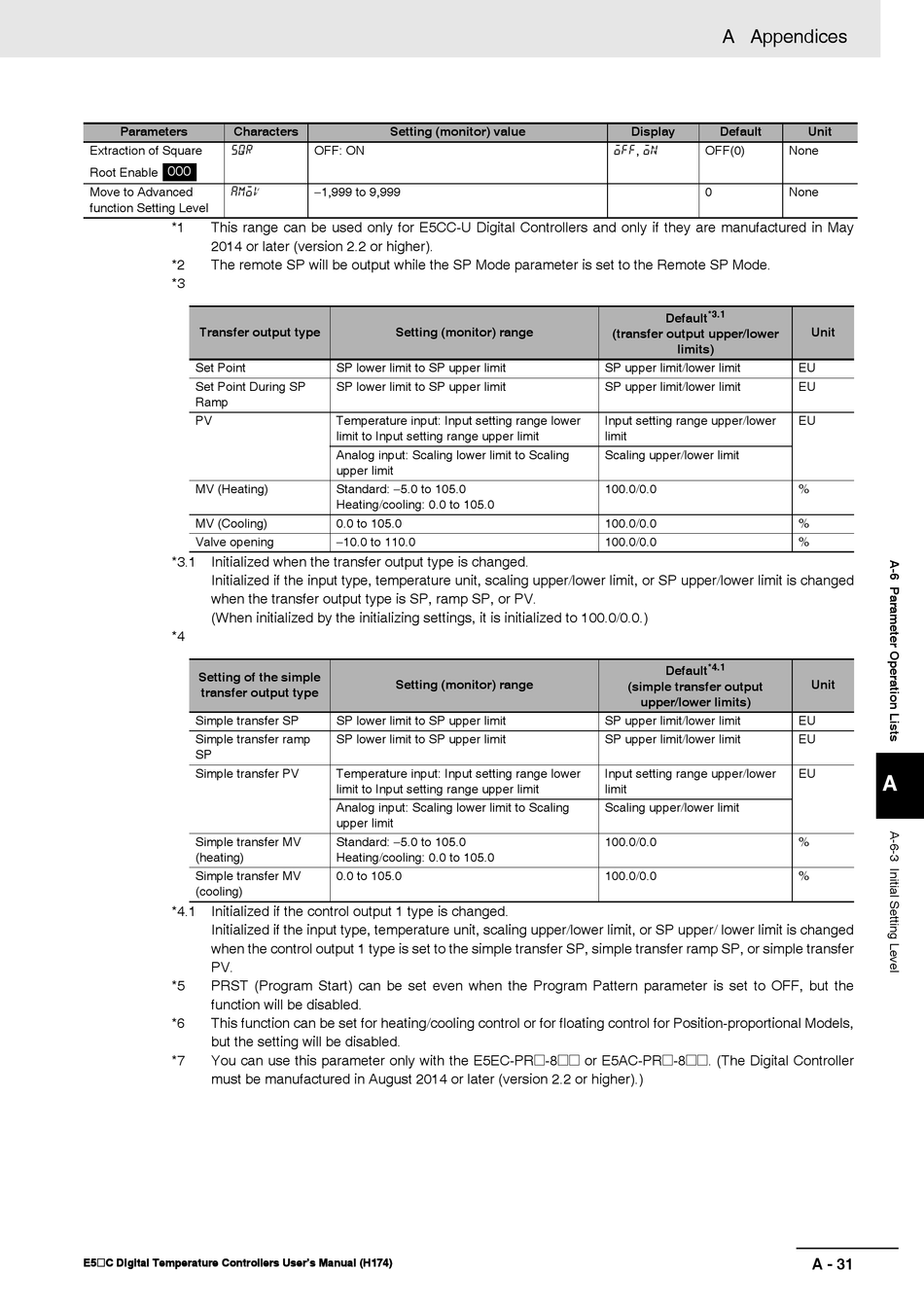

Parameters
Characters
Extraction of Square
sqr
000
Root Enable
Move to Advanced
amov
function Setting Level
*1
This range can be used only for E5CC-U Digital Controllers and only if they are manufactured in May
2014 or later (version 2.2 or higher).
*2
The remote SP will be output while the SP Mode parameter is set to the Remote SP Mode.
*3
Transfer output type
Set Point
Set Point During SP
Ramp
PV
MV (Heating)
MV (Cooling)
Valve opening
*3.1
Initialized when the transfer output type is changed.
Initialized if the input type, temperature unit, scaling upper/lower limit, or SP upper/lower limit is changed
when the transfer output type is SP, ramp SP, or PV.
(When initialized by the initializing settings, it is initialized to 100.0/0.0.)
*4
Setting of the simple
transfer output type
Simple transfer SP
Simple transfer ramp
SP
Simple transfer PV
Simple transfer MV
(heating)
Simple transfer MV
(cooling)
*4.1
Initialized if the control output 1 type is changed.
Initialized if the input type, temperature unit, scaling upper/lower limit, or SP upper/ lower limit is changed
when the control output 1 type is set to the simple transfer SP, simple transfer ramp SP, or simple transfer
PV.
*5
PRST (Program Start) can be set even when the Program Pattern parameter is set to OFF, but the
function will be disabled.
*6
This function can be set for heating/cooling control or for floating control for Position-proportional Models,
but the setting will be disabled.
*7
You can use this parameter only with the E5EC-PR@-8@@ or E5AC-PR@-8@@. (The Digital Controller
must be manufactured in August 2014 or later (version 2.2 or higher).)
E5@C Digital Temperature Controllers User's Manual (H174)
Setting (monitor) value
OFF: ON
−1,999 to 9,999
Setting (monitor) range
SP lower limit to SP upper limit
SP lower limit to SP upper limit
Temperature input: Input setting range lower
limit to Input setting range upper limit
Analog input: Scaling lower limit to Scaling
upper limit
Standard: −5.0 to 105.0
Heating/cooling: 0.0 to 105.0
0.0 to 105.0
−10.0 to 110.0
Setting (monitor) range
SP lower limit to SP upper limit
SP lower limit to SP upper limit
Temperature input: Input setting range lower
limit to Input setting range upper limit
Analog input: Scaling lower limit to Scaling
upper limit
Standard: −5.0 to 105.0
Heating/cooling: 0.0 to 105.0
0.0 to 105.0
A Appendices
Display
Default
OFF(0)
off, on
0
*3.1
Default
(transfer output upper/lower
limits)
SP upper limit/lower limit
SP upper limit/lower limit
Input setting range upper/lower
limit
Scaling upper/lower limit
100.0/0.0
100.0/0.0
100.0/0.0
*4.1
Default
(simple transfer output
upper/lower limits)
SP upper limit/lower limit
SP upper limit/lower limit
Input setting range upper/lower
limit
Scaling upper/lower limit
100.0/0.0
100.0/0.0
Unit
None
None
Unit
EU
EU
EU
%
%
%
Unit
EU
EU
EU
A
%
%
A - 31
