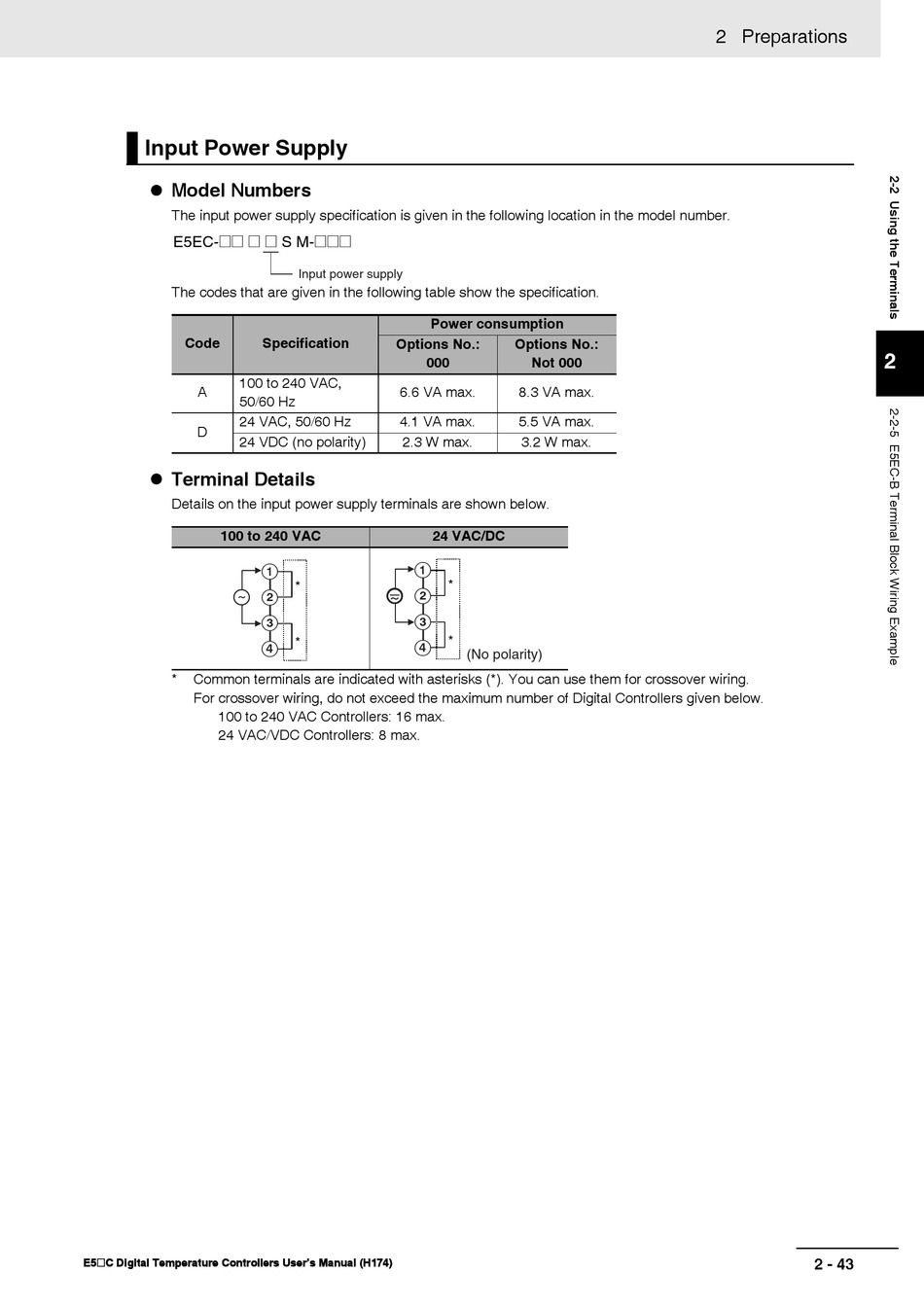

Omron E5*C Series User Manual page 81

Input Power Supply
 Model Numbers
The input power supply specification is given in the following location in the model number.
E5EC-@@ @ @ S M-@@@
The codes that are given in the following table show the specification.
Code
100 to 240 VAC,
A
50/60 Hz
24 VAC, 50/60 Hz
D
24 VDC (no polarity)
 Terminal Details
Details on the input power supply terminals are shown below.
100 to 240 VAC
* Common terminals are indicated with asterisks (*). You can use them for crossover wiring.
For crossover wiring, do not exceed the maximum number of Digital Controllers given below.
100 to 240 VAC Controllers: 16 max.
24 VAC/VDC Controllers: 8 max.
E5@C Digital Temperature Controllers User's Manual (H174)
Input power supply
Power consumption
Specification
Options No.:
000
6.6 VA max.
4.1 VA max.
2.3 W max.
24 VAC/DC
A
A
*
B
B
C
C
* D
D
Options No.:
Not 000
8.3 VA max.
5.5 VA max.
3.2 W max.
*
*
(No polarity)
