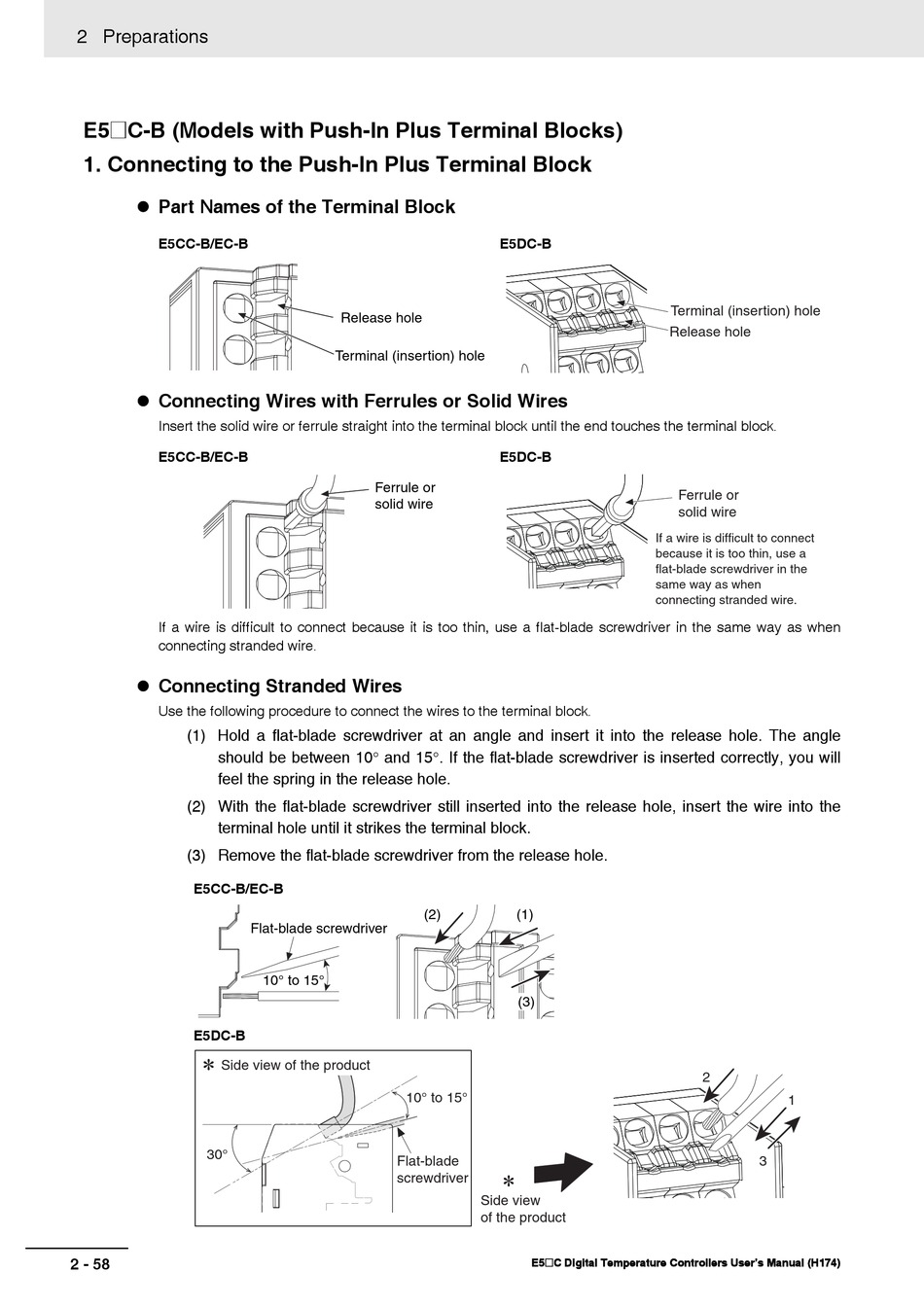

2 Preparations
E5@C-B (Models with Push-In Plus Terminal Blocks)
1. Connecting to the Push-In Plus Terminal Block
 Part Names of the Terminal Block
E5CC-B/EC-B
 Connecting Wires with Ferrules or Solid Wires
Insert the solid wire or ferrule straight into the terminal block until the end touches the terminal block.
E5CC-B/EC-B
If a wire is difficult to connect because it is too thin, use a flat-blade screwdriver in the same way as when
connecting stranded wire.
 Connecting Stranded Wires
Use the following procedure to connect the wires to the terminal block.
(1) Hold a flat-blade screwdriver at an angle and insert it into the release hole. The angle
should be between 10° and 15°. If the flat-blade screwdriver is inserted correctly, you will
feel the spring in the release hole.
(2) With the flat-blade screwdriver still inserted into the release hole, insert the wire into the
terminal hole until it strikes the terminal block.
(3) Remove the flat-blade screwdriver from the release hole.
E5CC-B/EC-B
E5DC-B
∗
Side view of the product
30°
2 - 58
Release hole
Terminal (insertion) hole
Ferrule or
solid wire
(2)
Flat-blade screwdriver
10° to 15°
10° to 15°
Flat-blade
screwdriver
E5DC-B
E5DC-B
If a wire is difficult to connect
because it is too thin, use a
flat-blade screwdriver in the
same way as when
connecting stranded wire.
(1)
(3)
∗
Side view
of the product
