2 Preparations
2-2-8

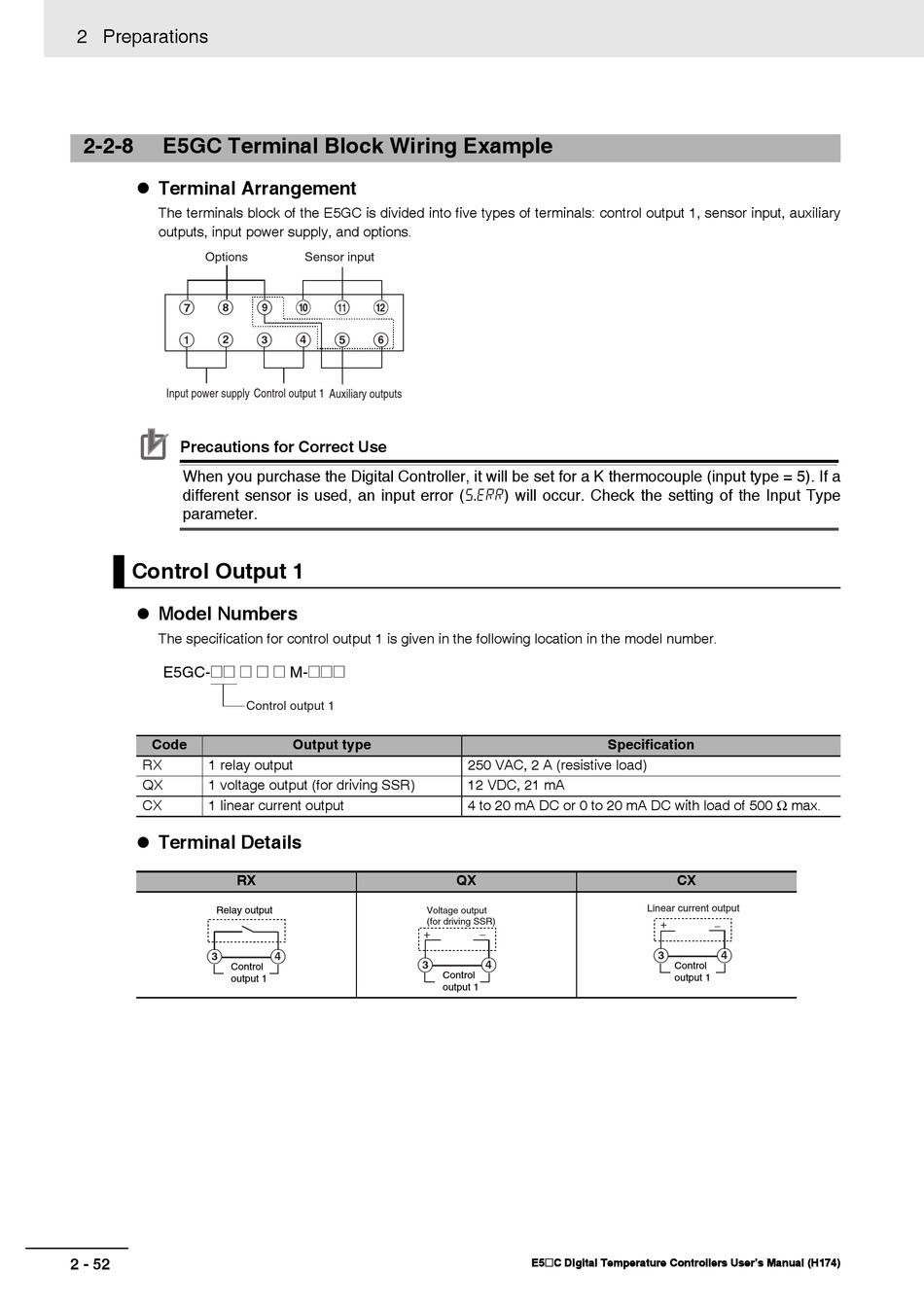

E5GC Terminal Block Wiring Example

 Terminal Arrangement
The terminals block of the E5GC is divided into five types of terminals: control output 1, sensor input, auxiliary
outputs, input power supply, and options.
Options
G H
A B
Input power supply Control output 1 Auxiliary outputs
Precautions for Correct Use
When you purchase the Digital Controller, it will be set for a K thermocouple (input type = 5). If a
different sensor is used, an input error (s.err) will occur. Check the setting of the Input Type
parameter.
Control Output 1
 Model Numbers
The specification for control output 1 is given in the following location in the model number.
E5GC-@@ @ @ @ M-@@@
Code
RX 1 relay output
QX 1 voltage output (for driving SSR)
CX 1 linear current output
 Terminal Details
RX
Relay output
C
Control
output 1
2 - 52
Sensor input
I
J K L
C D E F
Control output 1
Output type
D
C
250 VAC, 2 A (resistive load)
12 VDC, 21 mA
4 to 20 mA DC or 0 to 20 mA DC with load of 500 Ω max.
QX
Voltage output
(for driving SSR)
−
+
D
Control
output 1
E5@C Digital Temperature Controllers User's Manual (H174)
Specification
CX
Linear current output
+ −
C D
Control
output 1
