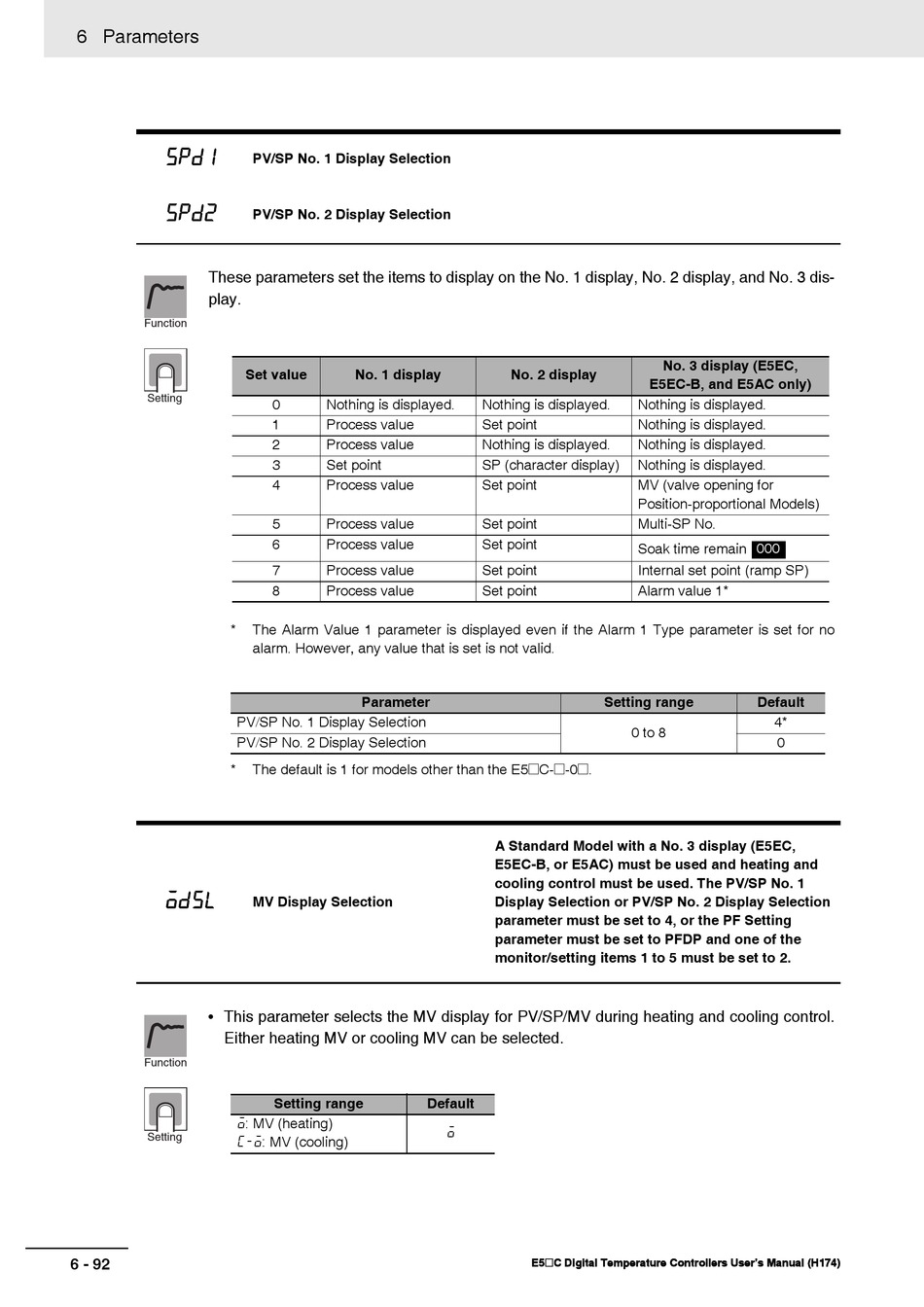

Omron E5*C Series User Manual page 362

6 Parameters
spd1
spd2
These parameters set the items to display on the No. 1 display, No. 2 display, and No. 3 dis-
play.
Function
Setting
*
PV/SP No. 1 Display Selection
PV/SP No. 2 Display Selection
*
odsl
• This parameter selects the MV display for PV/SP/MV during heating and cooling control.
Either heating MV or cooling MV can be selected.
Function
o: MV (heating)
Setting
c-o: MV (cooling)
6 - 92
PV/SP No. 1 Display Selection
PV/SP No. 2 Display Selection
Set value No. 1 display
0 Nothing is displayed.
1 Process value
2 Process value
3 Set point
4 Process value
5 Process value
6 Process value
7 Process value
8 Process value
The Alarm Value 1 parameter is displayed even if the Alarm 1 Type parameter is set for no
alarm. However, any value that is set is not valid.
Parameter
The default is 1 for models other than the E5@C-@-0@.
MV Display Selection
Setting range
No. 2 display
Nothing is displayed.
Set point
Nothing is displayed.
SP (character display)
Set point
Set point
Set point
Set point
Set point
A Standard Model with a No. 3 display (E5EC,
E5EC-B, or E5AC) must be used and heating and
cooling control must be used. The PV/SP No. 1
Display Selection or PV/SP No. 2 Display Selection
parameter must be set to 4, or the PF Setting
parameter must be set to PFDP and one of the
monitor/setting items 1 to 5 must be set to 2.
Default
o
E5@C Digital Temperature Controllers User's Manual (H174)
No. 3 display (E5EC,
E5EC-B, and E5AC only)
Nothing is displayed.
Nothing is displayed.
Nothing is displayed.
Nothing is displayed.
MV (valve opening for
Position-proportional Models)
Multi-SP No.
Soak time remain 000
Internal set point (ramp SP)
Alarm value 1*
Setting range Default
4*
0 to 8
0
