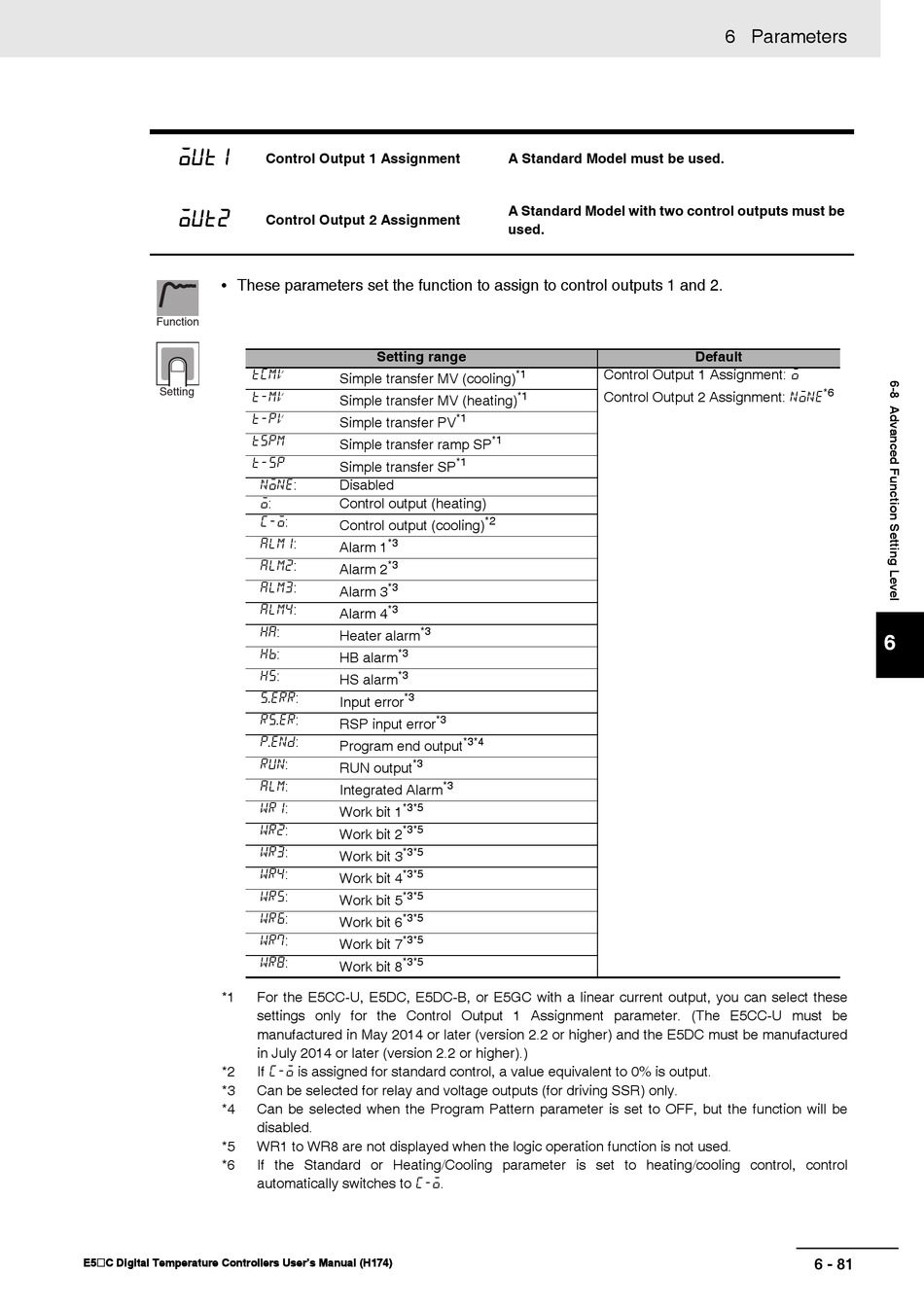

• These parameters set the function to assign to control outputs 1 and 2.
Function
tcmv
Setting
t-mv
t-pv
tspm
t-sp
*1 For the E5CC-U, E5DC, E5DC-B, or E5GC with a linear current output, you can select these
settings only for the Control Output 1 Assignment parameter. (The E5CC-U must be
manufactured in May 2014 or later (version 2.2 or higher) and the E5DC must be manufactured
in July 2014 or later (version 2.2 or higher).)
*2 If c-o is assigned for standard control, a value equivalent to 0% is output.
*3 Can be selected for relay and voltage outputs (for driving SSR) only.
*4 Can be selected when the Program Pattern parameter is set to OFF, but the function will be
disabled.
*5 WR1 to WR8 are not displayed when the logic operation function is not used.
*6 If the Standard or Heating/Cooling parameter is set to heating/cooling control, control
automatically switches to c-o.
E5@C Digital Temperature Controllers User's Manual (H174)
Control Output 1 Assignment
Control Output 2 Assignment
Setting range
Simple transfer MV (cooling)
Simple transfer MV (heating)
Simple transfer PV
Simple transfer ramp SP
Simple transfer SP
Disabled
none:
Control output (heating)
o:
c-o:
Control output (cooling)
*3
alm1:
Alarm 1
*3
alm2:
Alarm 2
*3
alm3:
Alarm 3
*3
alm4:
Alarm 4
*3
ha:
Heater alarm
*3
hb:
HB alarm
*3
hs:
HS alarm
*3
s.err:
Input error
rs.er:
RSP input error
p.end:
Program end output
*3
run:
RUN output
alm:
Integrated Alarm
*3*5
wr1:
Work bit 1
*3*5
wr2:
Work bit 2
*3*5
wr3:
Work bit 3
*3*5
wr4:
Work bit 4
*3*5
wr5:
Work bit 5
*3*5
wr6:
Work bit 6
*3*5
wr7:
Work bit 7
*3*5
wr8:
Work bit 8
A Standard Model must be used.
A Standard Model with two control outputs must be
used.
*1 Control Output 1 Assignment: o
*1 Control Output 2 Assignment: none
*1
*1
*1
*2
*3
*3*4
*3
