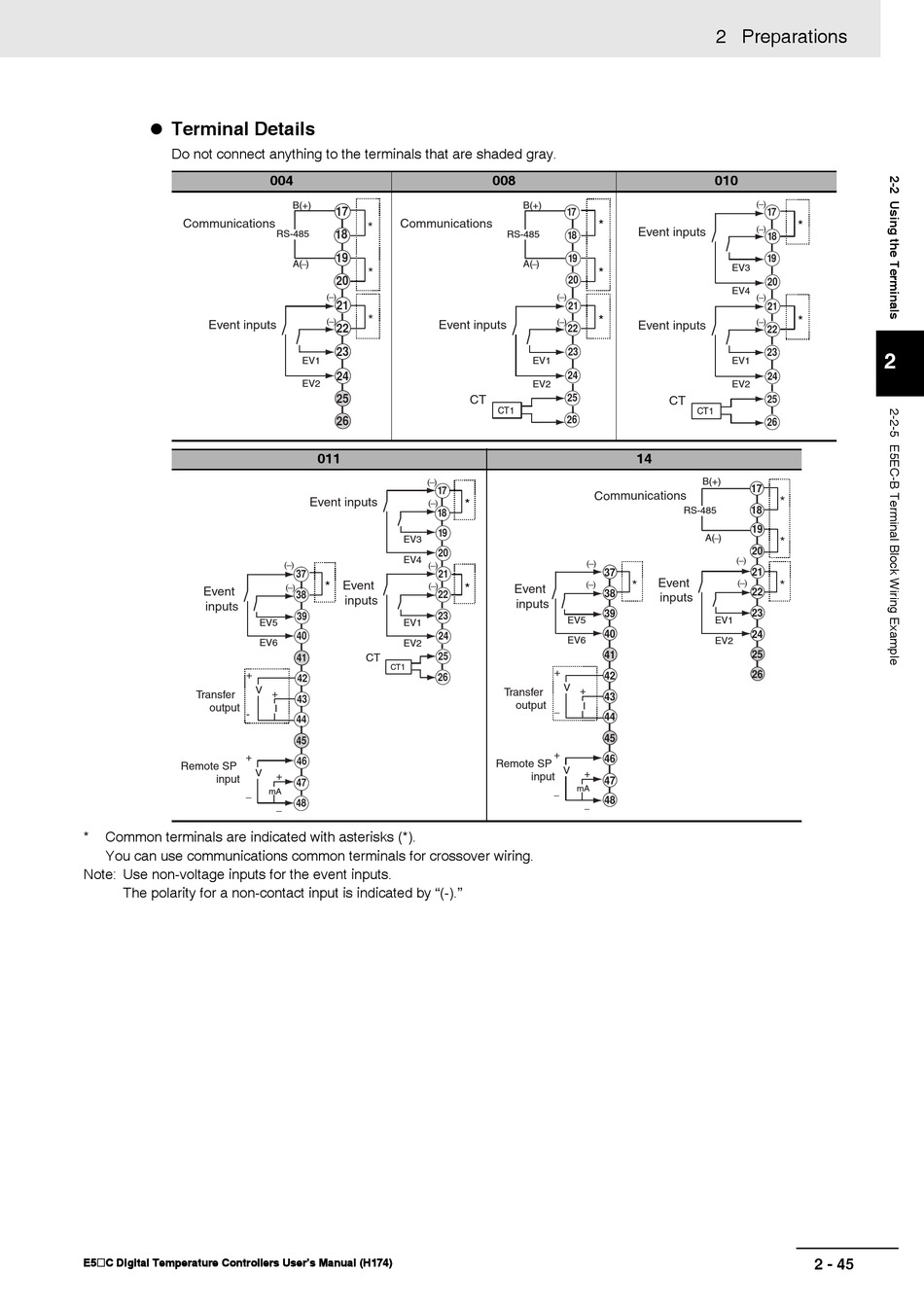

 Terminal Details
Do not connect anything to the terminals that are shaded gray.
Event inputs
Event
inputs
+
V
Transfer
output
-
+
Remote SP
V
input
−
* Common terminals are indicated with asterisks (*).
You can use communications common terminals for crossover wiring.
Note: Use non-voltage inputs for the event inputs.
The polarity for a non-contact input is indicated by "(-)."
