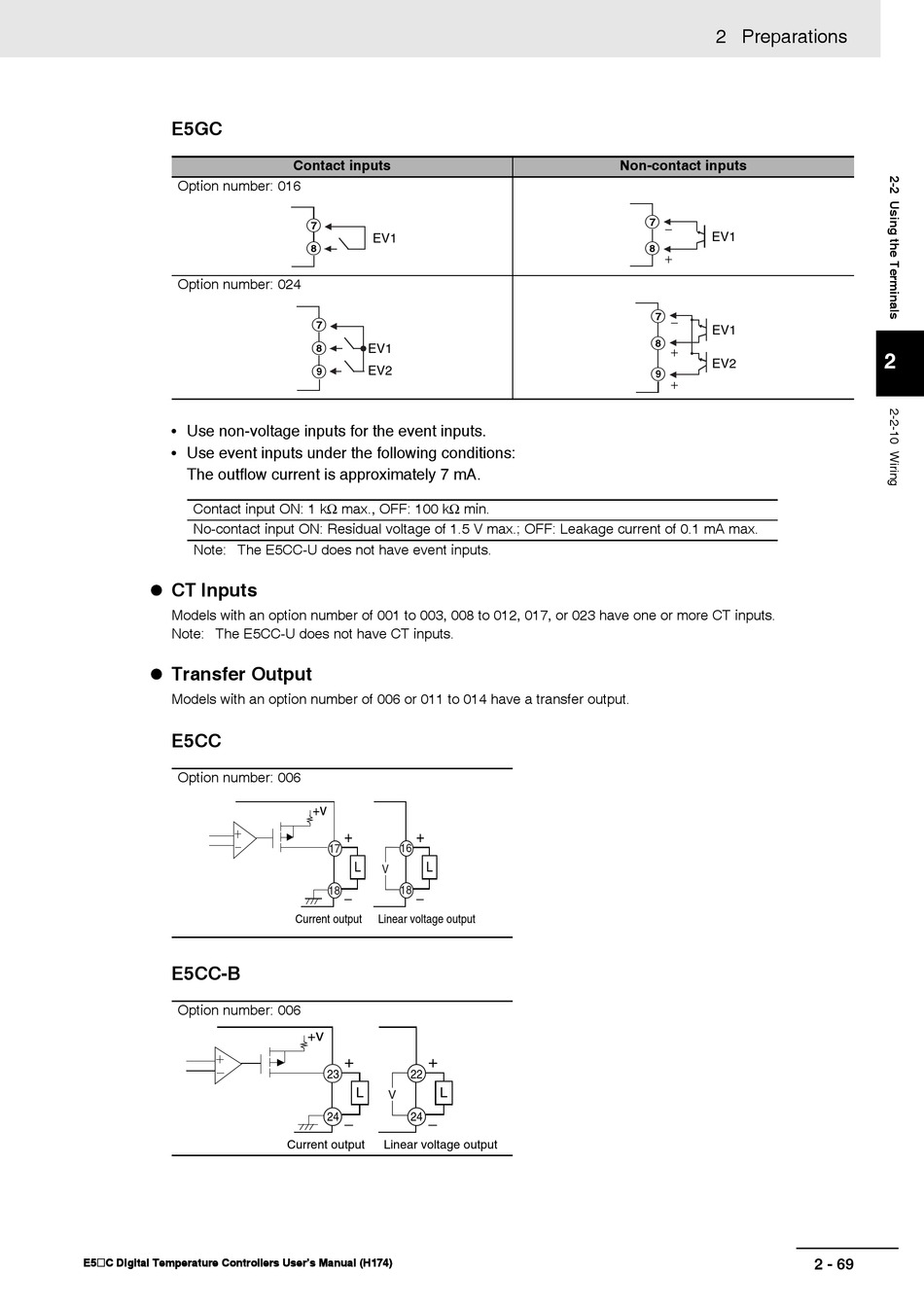

Omron E5*C Series User Manual page 107

E5GC
Option number: 016
Option number: 024
• Use non-voltage inputs for the event inputs.
• Use event inputs under the following conditions:
The outflow current is approximately 7 mA.
Contact input ON: 1 kΩ max., OFF: 100 kΩ min.
No-contact input ON: Residual voltage of 1.5 V max.; OFF: Leakage current of 0.1 mA max.
Note: The E5CC-U does not have event inputs.
 CT Inputs
Models with an option number of 001 to 003, 008 to 012, 017, or 023 have one or more CT inputs.
Note: The E5CC-U does not have CT inputs.
 Transfer Output
Models with an option number of 006 or 011 to 014 have a transfer output.
E5CC
Option number: 006
E5CC-B
Option number: 006
E5@C Digital Temperature Controllers User's Manual (H174)
Contact inputs
G
EV1
H
G
H
EV1
I
EV2
v
+
+ +
17 16
L L
V
18 18
− −
Current output Linear voltage output
v
+
+ +
23 22
L L
V
24 24
− −
Current output Linear voltage output
2 Preparations
Non-contact inputs
G
−
EV1
H
+
G
−
EV1
H
+
EV2
I
+
2
2 - 69
