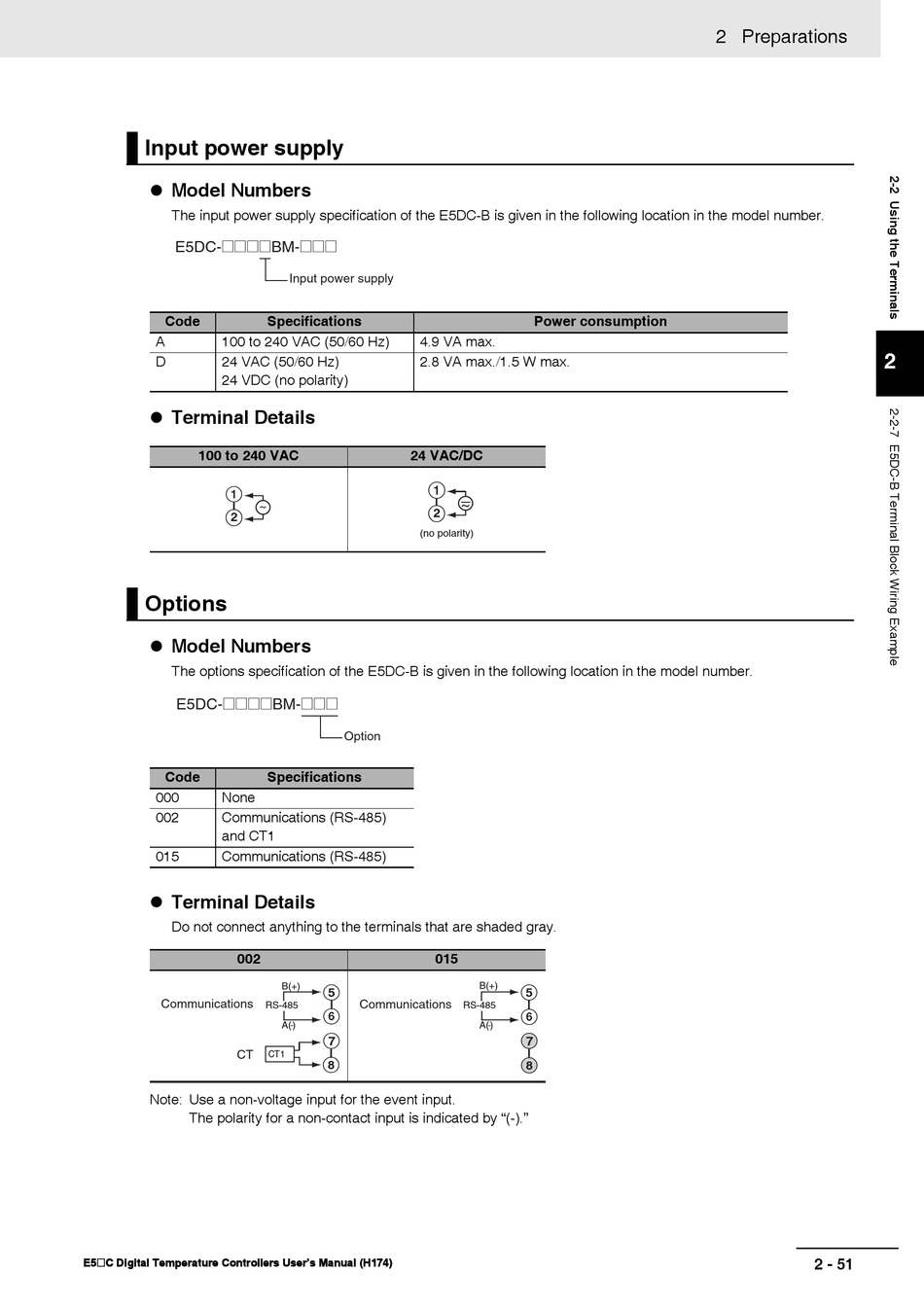

Omron E5*C Series User Manual page 89

Input power supply
 Model Numbers
The input power supply specification of the E5DC-B is given in the following location in the model number.
E5DC-@@@@BM-@@@
Code
A 100 to 240 VAC (50/60 Hz)
D 24 VAC (50/60 Hz)
24 VDC (no polarity)
 Terminal Details
100 to 240 VAC
A
B
Options
 Model Numbers
The options specification of the E5DC-B is given in the following location in the model number.
E5DC-@@@@BM-@@@
Code
000 None
002 Communications (RS-485)
and CT1
015 Communications (RS-485)
 Terminal Details
Do not connect anything to the terminals that are shaded gray.
002
Communications
CT
Note: Use a non-voltage input for the event input.
The polarity for a non-contact input is indicated by "(-)."
E5@C Digital Temperature Controllers User's Manual (H174)
Input power supply
Specifications
4.9 VA max.
2.8 VA max./1.5 W max.
24 VAC/DC
A
B
(no polarity)
Option
Specifications
015
E
B(+)
Communications
RS-485
F
A(-)
G
CT1
H
Power consumption
E
B(+)
RS-485
F
A(-)
G
H
