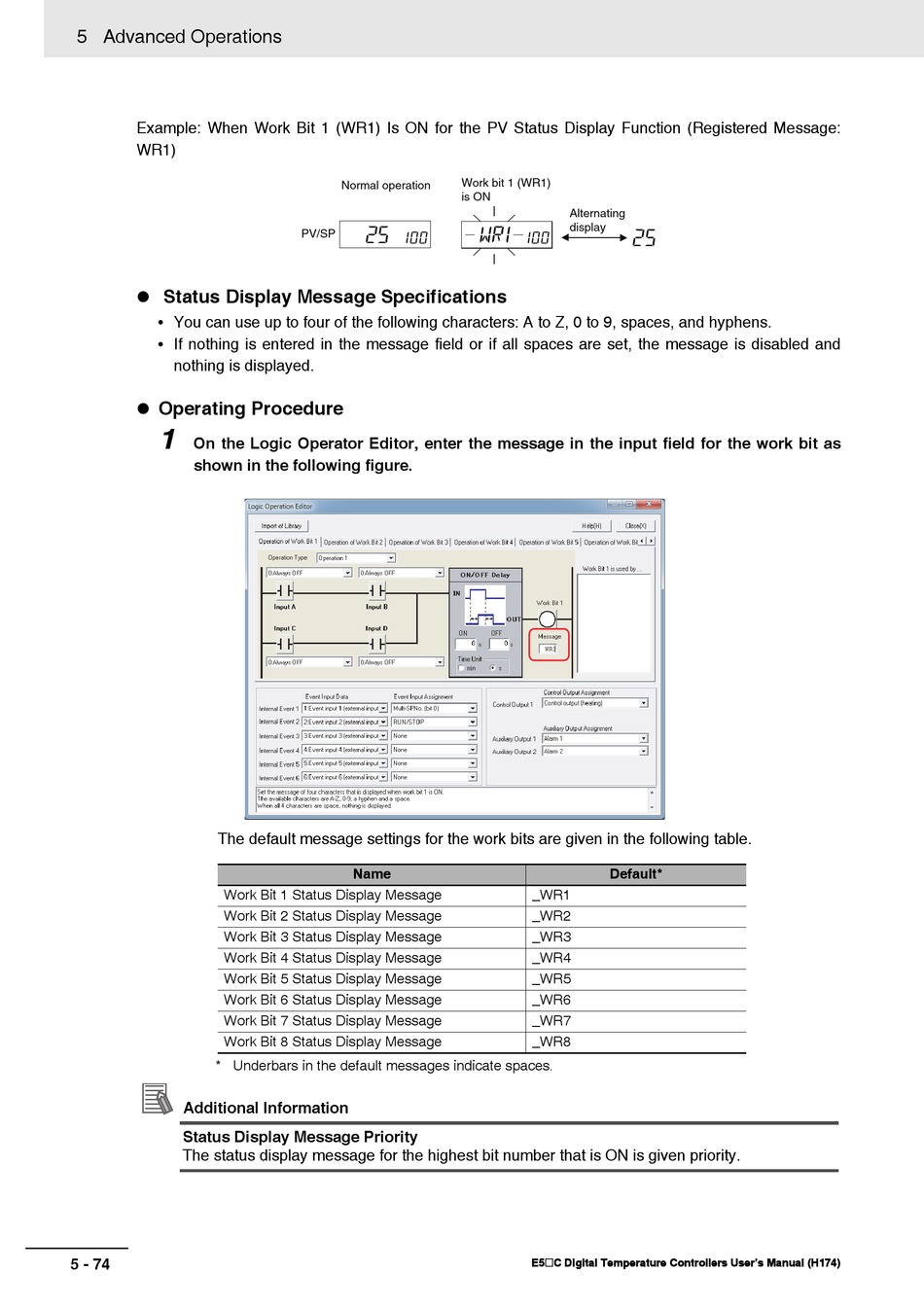

5 Advanced Operations
Example: When Work Bit 1 (WR1) Is ON for the PV Status Display Function (Registered Message:
WR1)
 Status Display Message Specifications
• You can use up to four of the following characters: A to Z, 0 to 9, spaces, and hyphens.
• If nothing is entered in the message field or if all spaces are set, the message is disabled and
nothing is displayed.
 Operating Procedure
1
On the Logic Operator Editor, enter the message in the input field for the work bit as
shown in the following figure.
The default message settings for the work bits are given in the following table.
Work Bit 1 Status Display Message
Work Bit 2 Status Display Message
Work Bit 3 Status Display Message
Work Bit 4 Status Display Message
Work Bit 5 Status Display Message
Work Bit 6 Status Display Message
Work Bit 7 Status Display Message
Work Bit 8 Status Display Message
* Underbars in the default messages indicate spaces.
Additional Information
Status Display Message Priority
The status display message for the highest bit number that is ON is given priority.
5 - 74
Work bit 1 (WR1)
Normal operation
is ON
25
PV/SP
100
Name
Alternating
display
wr 1
25
100
Default*
_WR1
_WR2
_WR3
_WR4
_WR5
_WR6
_WR7
_WR8
E5@C Digital Temperature Controllers User's Manual (H174)
